Aerial Work Platform ForSte 39tjj
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Aerial Work Platform | EXTREMELY COMPACT DIMENSIONS
Double Telescopic Boom with High Versatility
Generous Working Envelope
Multi-zone support system
Compact dimensions

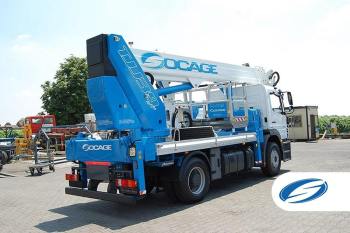

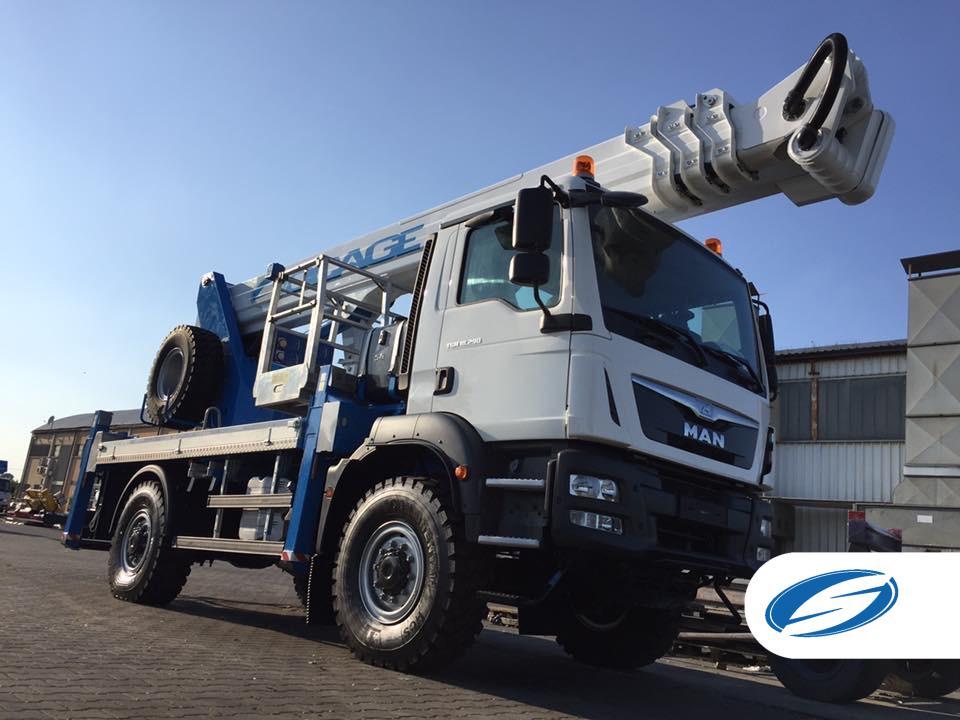

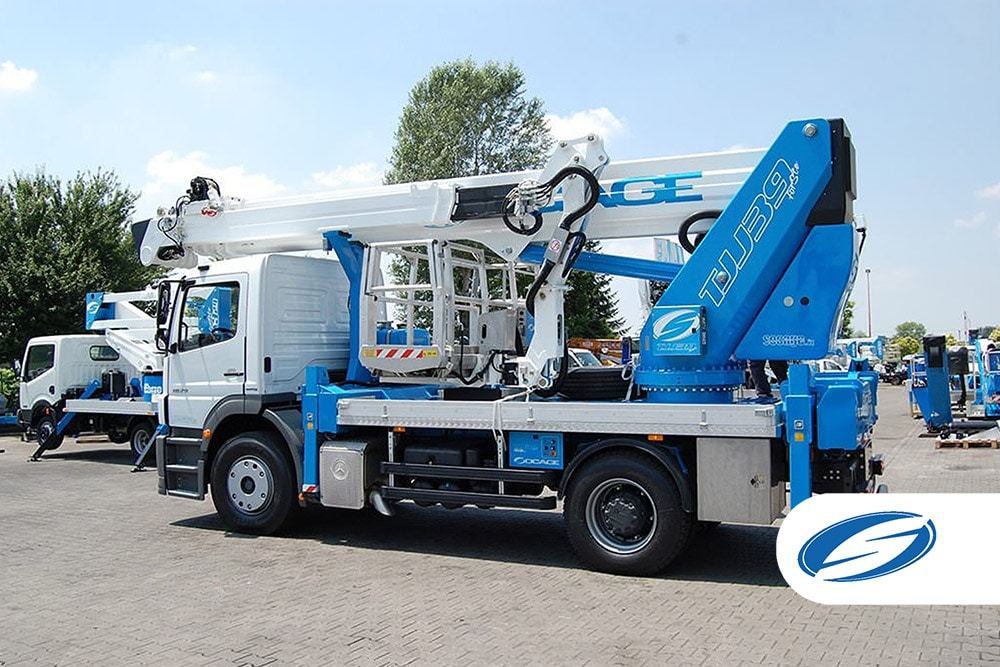

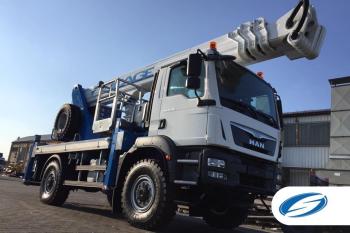

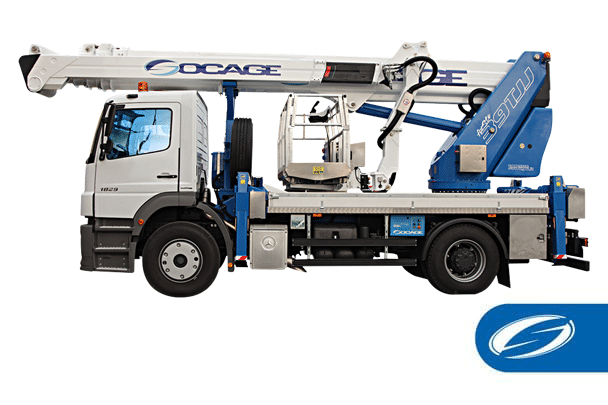

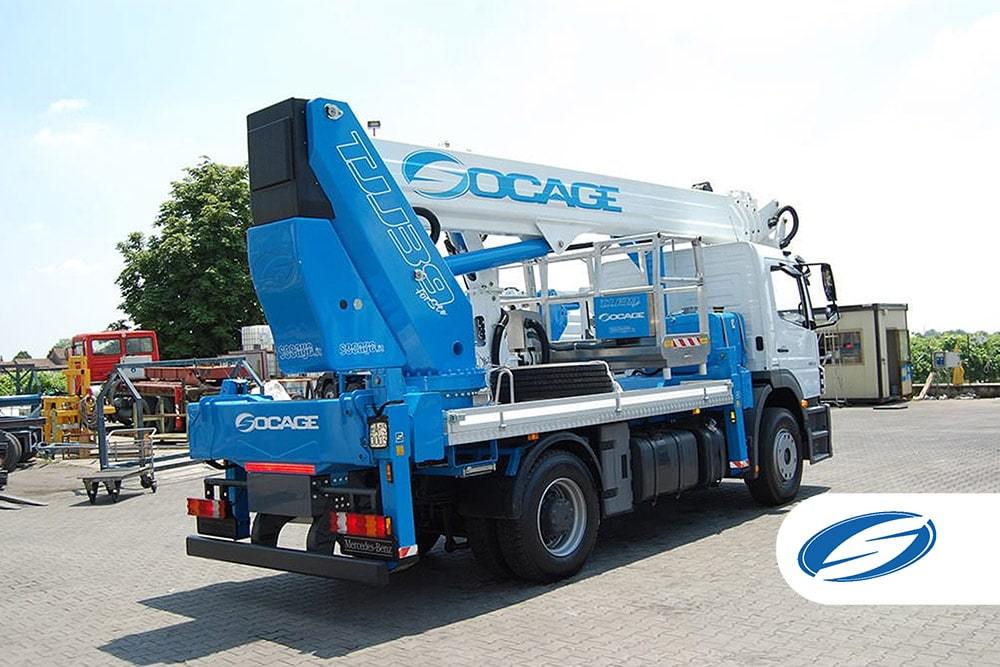

The Socage aerial work platform ForSte 39TJJ features a double telescopic boom with an articulated jib, designed for vehicle chassis weighing 18 tons or more. The secondary boom with an articulated jib enables working maneuvers that would not be possible with a single jib.

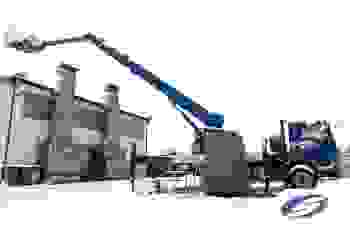

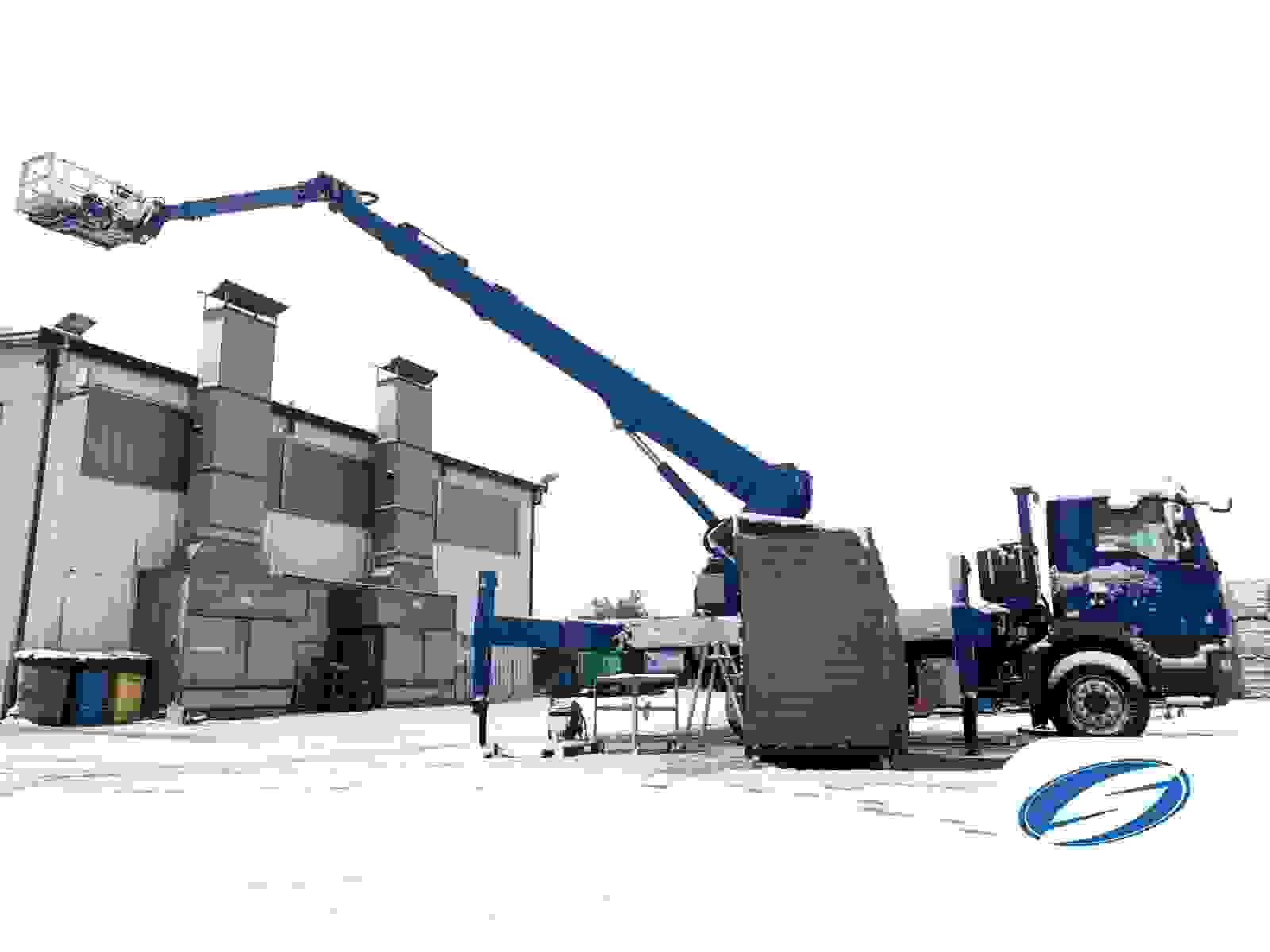

It can achieve a working height of 38.5 m and a lateral outreach of up to 30 m, with a lifting capacity of 300 kg (3 persons + equipment). The extremely compact dimensions of this model allow for work in hard-to-reach industrial and urban areas.
The variable multi-zone outrigger system allows the operator to choose between different stabilization options depending on space availability.
| Safe Working Area
Depending on the selected opening position of the four outriggers, the electronic control system automatically calculates the safe working area.
The emergency control of the aerial work platform, as well as the stabilization via radio remote control, allow the operator to choose the best viewing position during setup.
The ForSte 39TJJ aerial work platform can be equipped with a hydraulic winch (lifting capacity of 500/1000 kg) after removal of the aluminum work basket.
The productivity of the aerial work platform is significantly increased by the generous 700° slewing range of the turret, as well as the 360° basket rotation (180° manually right/left).
| Aerial Work Platform for Sale
The dimensions of the aluminum basket are 2300 x 900 x h 1100 mm, and can be hydraulically extended to 3300 mm.
View our aerial work platforms for sale.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Extendable aluminum basket with dimensions 2300/3300 x900x1100 mm
- Optional SOCAGE Special Basket (Eternit)
- Basket Rotation 90°+90°
- 700° Turret Rotation
- Jib 180° Manually Rotatable
- Winch Option on Detachable Jib
- Automatic support system
- Variable support and working areas
- Automatic home function
- Basket control station with Socage design console with joystick and 7" LCD display with real-time information
- Intercom system with headset for communication between basket and ground
- Start/Stop Control of Main and Auxiliary Engine from the Basket
- Multifunction radio control for ground emergency control and support
- Electric operating hours counter
- Automatic auxiliary drive
- 2 permanently installed rotating beacons on the vehicle cab
- 230V/400V socket
- Hydraulic system with oil cooler
- 2 folding, 2 fixed side panels (H 150 mm)
- 4 floor support plates (700 x 700 x 50 mm)
- Corrosion protection treatment of non-painted parts
- Painting of the aerial platform: white RAL 9016
- Frame and Hydraulic Cylinder Painting: Blue RAL 5015; LED Light Under Basket
- LED light under the basket
- Work lights on the basket
- Work lights behind the driver's cab
- LED rotating beacon on the cab roof
SAFETY DEVICES
- Emergency stop
- Counter-check of the opened supports
- Load limiter in the basket
- Anemometer
- Load Moment Limitation with Dual Safety and Function Control
- Leveling eye on the undercarriage
- Emergency Lowering via Electric Pump (without Auxiliary Engine Option)
- Swivel brake of the turret rotation with automatic activation
- Hydraulic system with differentiated filtering and high-performance filters in supply and return lines
- Emergency control via multifunction radio control
- Automatic Slew Lock in the Outrigger Area
- Tilt Sensor on Frame
- Flanged holding valves
