Cherry picker electric RAPTOR 21SE

Compact truck-mounted platform 16A
MAX. WORKING HEIGHT
20.80
ROTATION RANGE
380º
SUPPORTS

H+H

PLATFORM HEIGHT
18.80 m
PLATFORM SIZE
140x70x110 cm
CONTROL
Electric - Hydraulic
MAX. LATERAL REACH
11.30 m
PLATFORM LOAD
230 kg
PLATFORM ROTATION
60° + 60°
TOTAL WEIGHT
2,6 ton
SUPPORT SURFACE
2845 x 2855 / 3010 x 3190 mm
HOOK
BATTERY

44V – 10.12kWh – 228Ah

BATTERY

44V – 10.12kWh – 228Ah

Cherry picker electric | Compact and robust with top performance

N

Improved strength and stability

N

Simple and reliable

N

100% electric

N

Adjustable track chassis

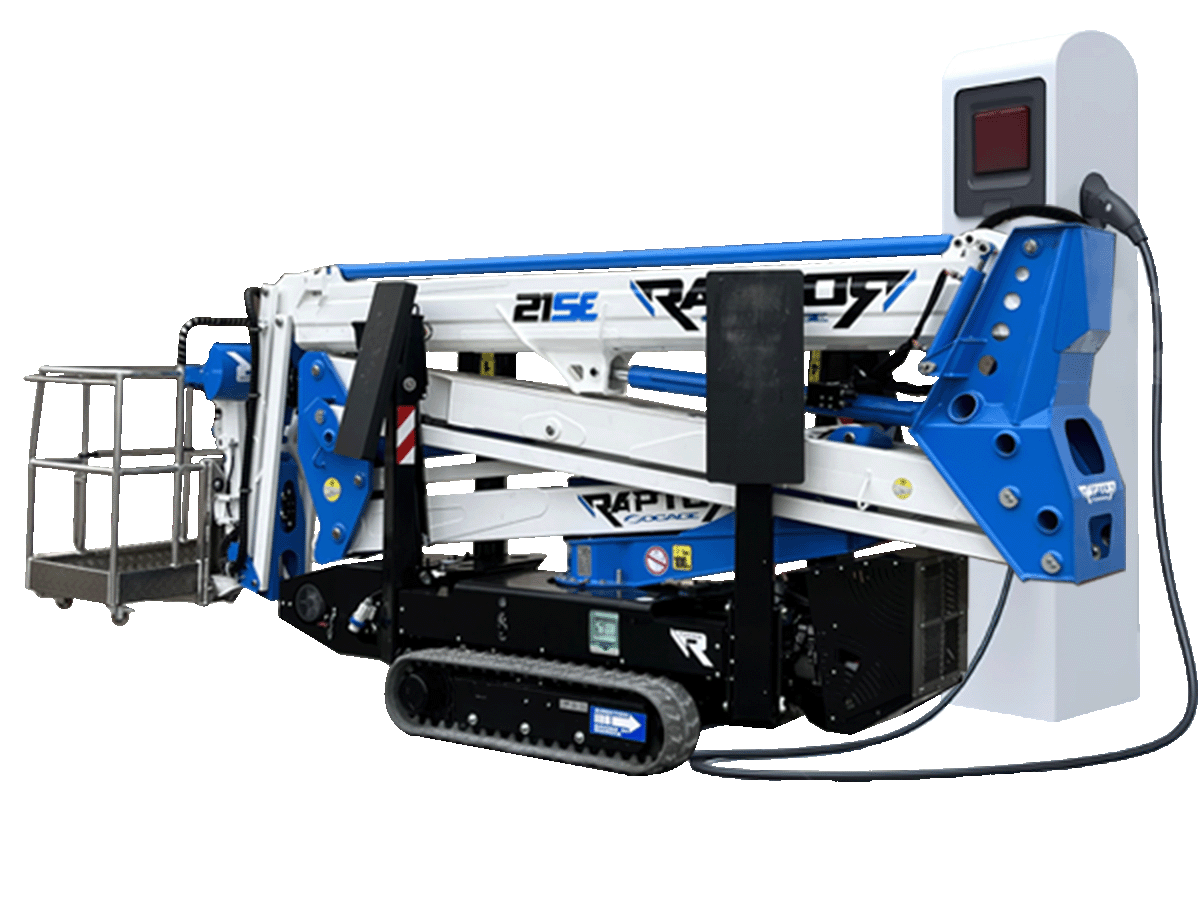

The cherry picker electric RAPTOR 21SE is an evolution of the 21S model, enhanced by sustainable technological innovations that guarantee exceptional performance with silent, emission-free operation.

It reaches a working height of 20.80 m, a horizontal reach of 11.30 m, and a basket capacity of 230 kg.

The cherry picker electric RAPTOR 21SE with a lithium-ion battery is perfectly suited for indoor use or in areas with strict environmental regulations, such as hospitals, airports, or shopping centers. A full battery charge guarantees at least 15 complete work cycles, consisting of stabilization, full extension and retraction of the platform, retraction of stabilizers, and return to drive mode.

Thanks to the fast-charging function, a 60% charge is possible in just 4 hours, and a full charge in 8 hours. It is also possible to operate with the power cable connected.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

Automatic closing
• Automatic stabilization
• Quick release of the basket
• Lifting Hook Support 230kg
• SSW: LED safety lights
• LED travel light
• Booms realized in profiles advanced high tensile steel
• Jib lifting during travel
• Cataphoresis treatment
• Hydraulically extendable tracks
• White non-marking tracks
• Lifting hook on stabilisers
• Extra-large outrigger plates
• Pre-installation for Raptor Stab. Optional
• Socage Connect
• Integrated charger + extra battery for radio control
• Multifunction hydraulic distributor
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 230V-50Hz
• 10kW 48V Lithium battery pack
• Trailer transport + Raptor Trailer optional
