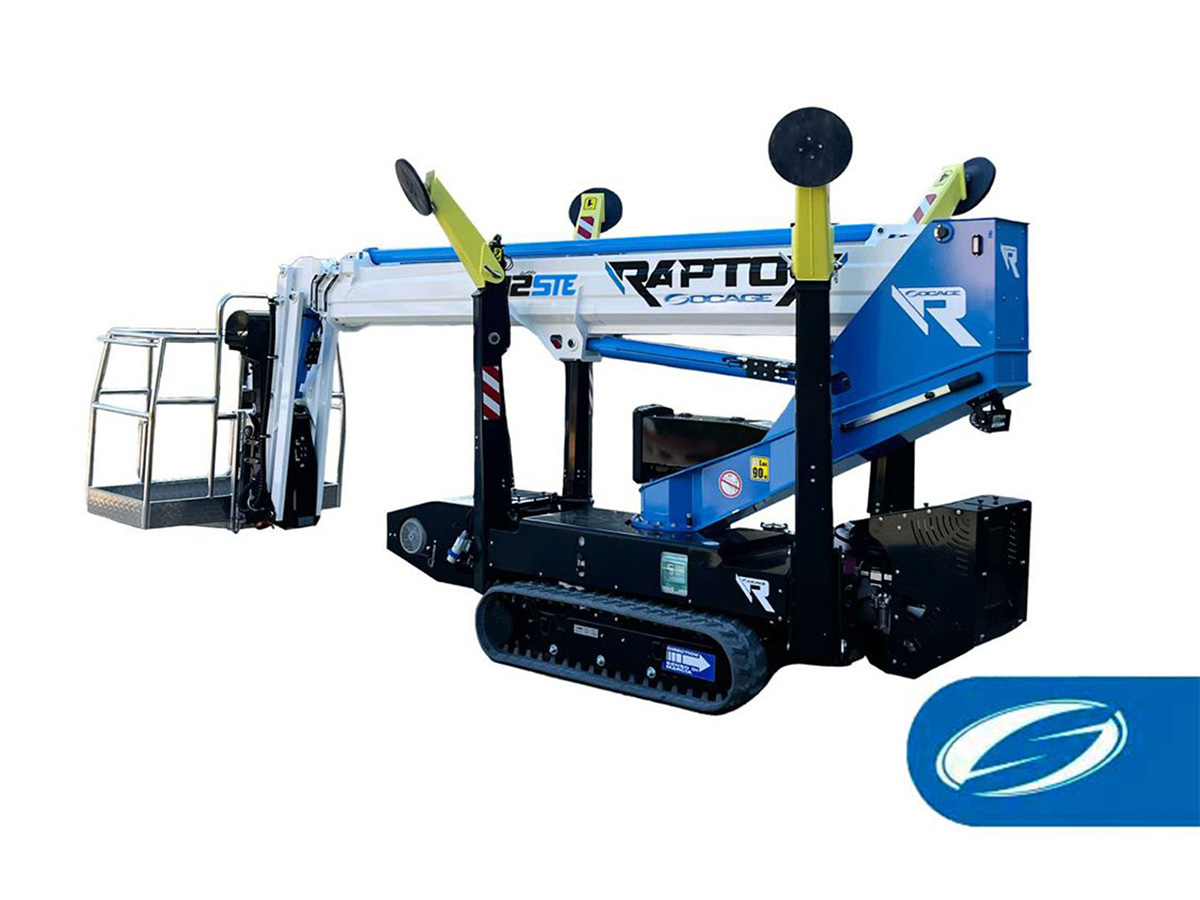

Electric cherry picker Raptor 12STE

Compact truck-mounted platform 16A
Maximum working height
MAX. WORKING HEIGHT
12.20
Turret rotation
ROTATION RANGE
190º + 190º
Outriggers
SUPPORTS

H+H

Basket height
PLATFORM HEIGHT
10.20 m
Basket dimensions
PLATFORM SIZE
140x70x110 cm
Controls
CONTROL
Electro-hydraulic
Lateral outreach
MAX. LATERAL REACH
8.30 m
Basket capacity
PLATFORM LOAD
229 kg
Basket rotation
PLATFORM ROTATION
60º + 60º
Gross vehicle weight
TOTAL WEIGHT
1980 ton
Dimensions
SUPPORT SURFACE
3150 x 3000 mm
Winch
HOOK
-
Socage lithium battery
BATTERY

44V – 10.12kWh – 228Ah

SE electric series logo
Socage lithium battery
BATTERY

44V – 10.12kWh – 228Ah

SE electric series logo

The electric telescopic tracked platform that combines silence, power, and zero emissions.

N

Clean energy, high performance.

N

Ideal for indoor spaces.

N

Fast charging and continuous operation.

N

Compact, silent, sustainable.

The RAPTOR 12STE electric cherry picker is the electric version of the most compact model in Socage’s telescopic tracked series – a small machine with surprising performance that sets the standard among light tracked platforms.

A compact electric cherry picker

The 12STE is made for users who need an agile, quick machine that is easy to transport. It pairs small dimensions with professional working capability, and its basket takes two operators with their equipment, with safety and reliability at every stage.

Ready to work in tight spaces

Its compact size makes it perfect for small areas, gardens and urban sites where bigger machines struggle to get in. A simple design and lightweight structure let it move nimbly over sensitive or difficult ground, while the stabilisation system and intuitive controls get it working straight away, reducing downtime. Full technical data is shown in the specification table on this page.

Where to use the RAPTOR 12STE electric cherry picker

It is an ideal platform for quick maintenance jobs, work on homes and residential buildings, gardening and installations in towns and cities – a practical, efficient and safe machine for professionals who want an easy-to-handle solution.

RAPTOR 12STE electric cherry picker in the UK

The RAPTOR 12STE is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our electric telescopic spider lifts or contact us for a quote.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

• Automatic closing
• Automatic stabilization
• Quick release of the basket
• Lifting Hook Support 230kg
• SSW: LED safety lights
• LED travel light
• Booms realized in profiles advanced high tensile steel
• Jib lifting during travel
• Cataphoresis treatment
• Hydraulically extendable tracks
• White non-marking tracks
• Lifting hook on stabilisers
• Extra-large outrigger plates
• Pre-installation for Raptor Stab. Optional
• Socage Connect
• Integrated charger + extra battery for radio control
• Multifunction hydraulic distributor
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 230V-50Hz
• 10kW 48V Lithium battery pack
• Trailer transport + Raptor Trailer optional
