Truck-mounted Cherry Picker ForSte 20D SPEED

MAX. WORKING HEIGHT

19.60 m

ROTATION RANGE

700º

SUPPORTS

H+H

PLATFORM HEIGHT

17.60 m

BASKET SIZE

1400x700x1100 mm

CONTROL

Electrical

MAX. LATERAL REACH

9.00 m

BASKET LOAD

230 kg

BASKET ROTATION

90º+90º

TOTAL WEIGHT

3.5 ton

Truck-mounted Cherry Picker | Unique and Innovative

N

Automatic stabilization

N

Front-mounted Basket

N

Unobstructed Working Area

N

Stabilization on Slopes

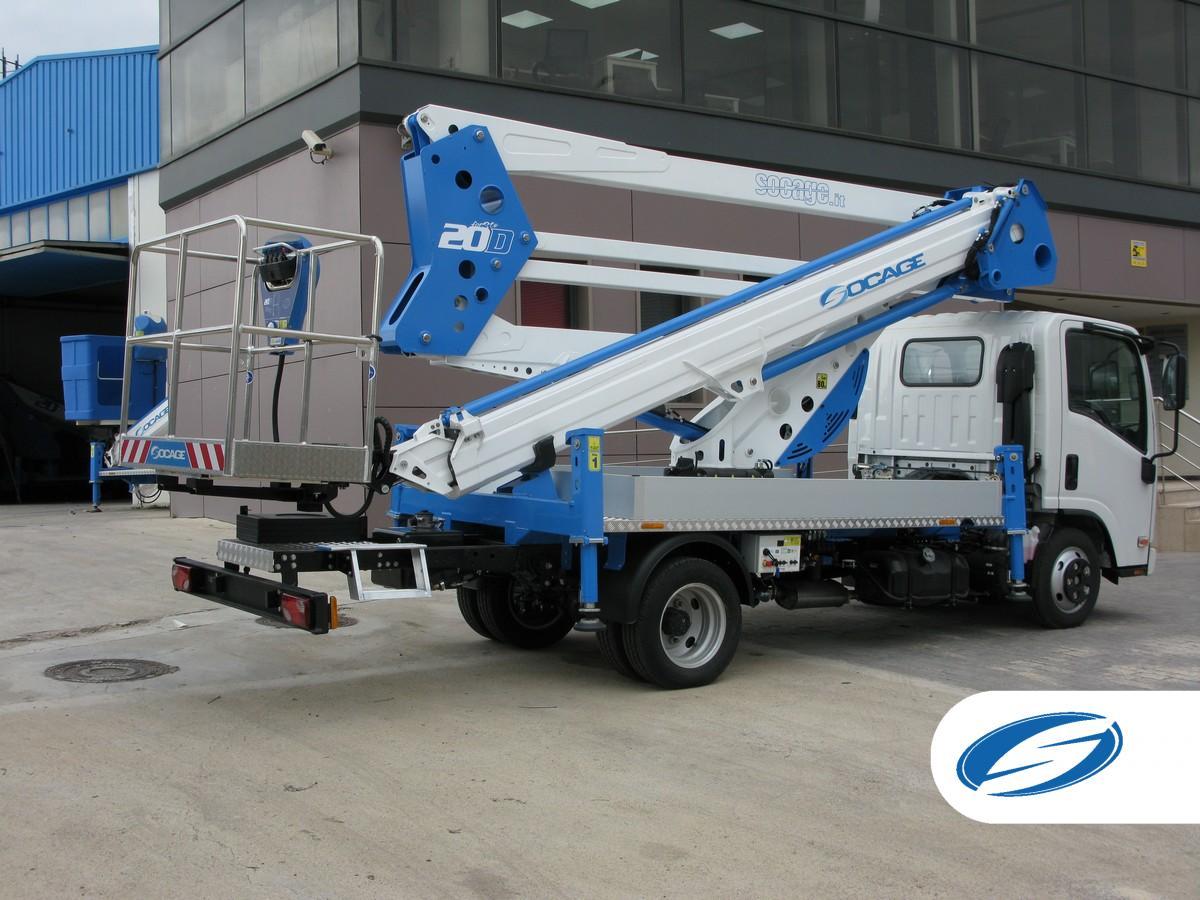

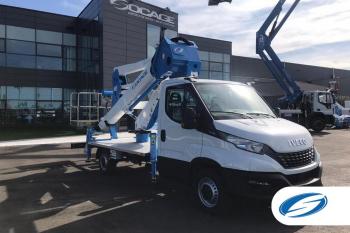

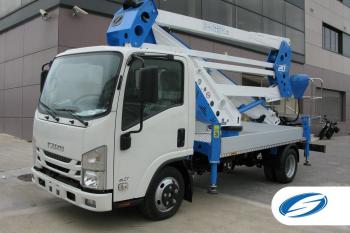

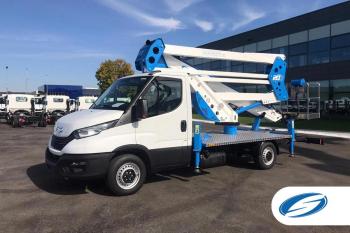

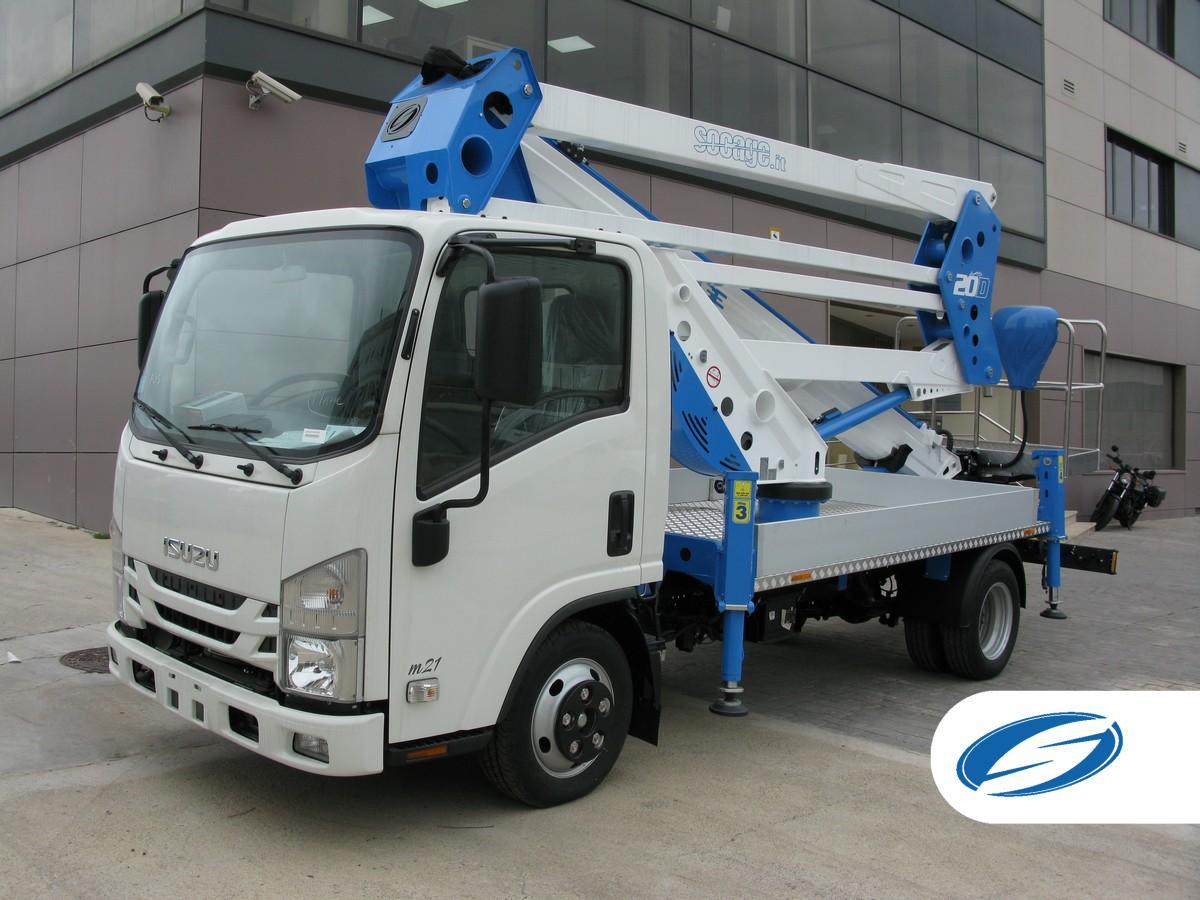

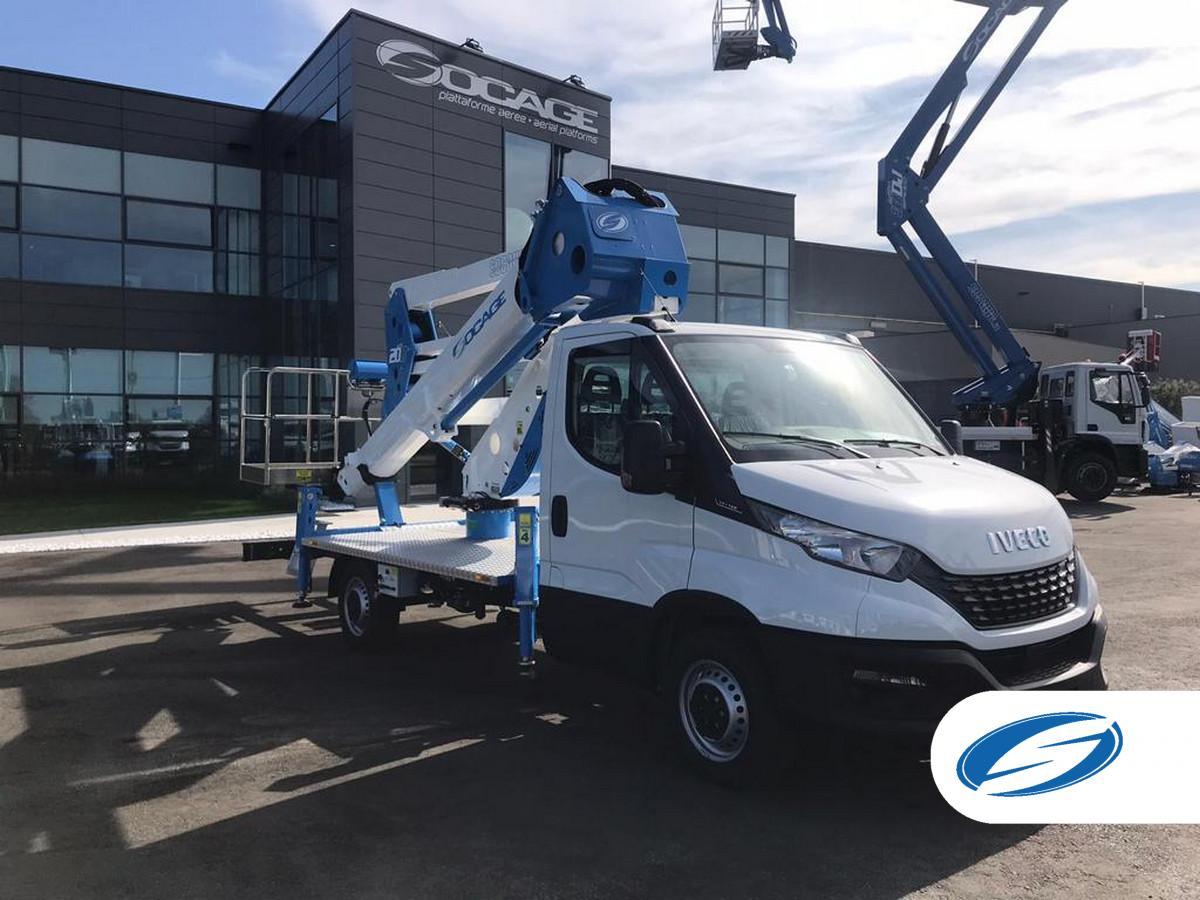

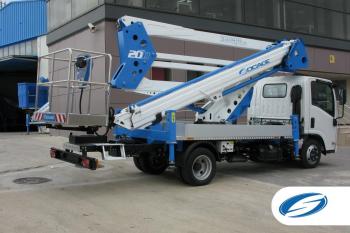

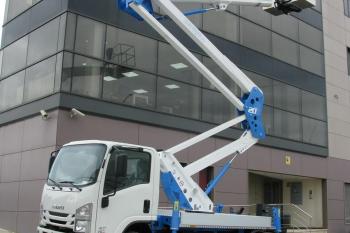

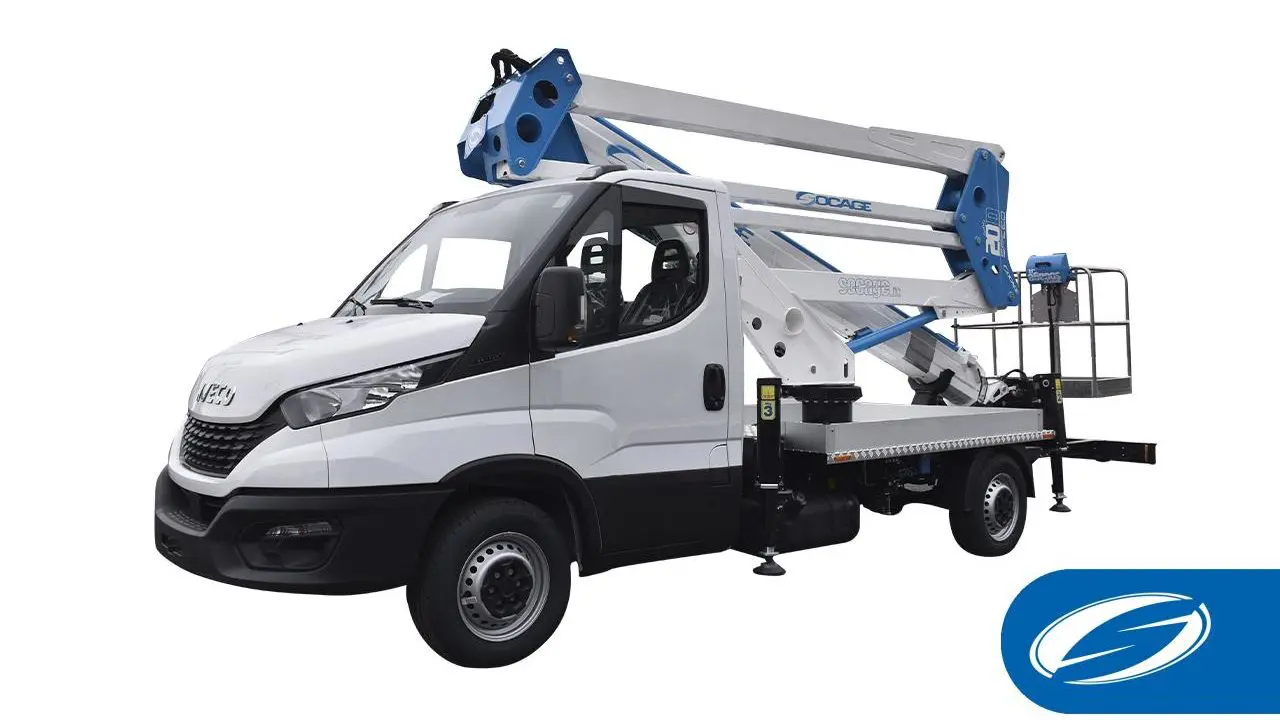

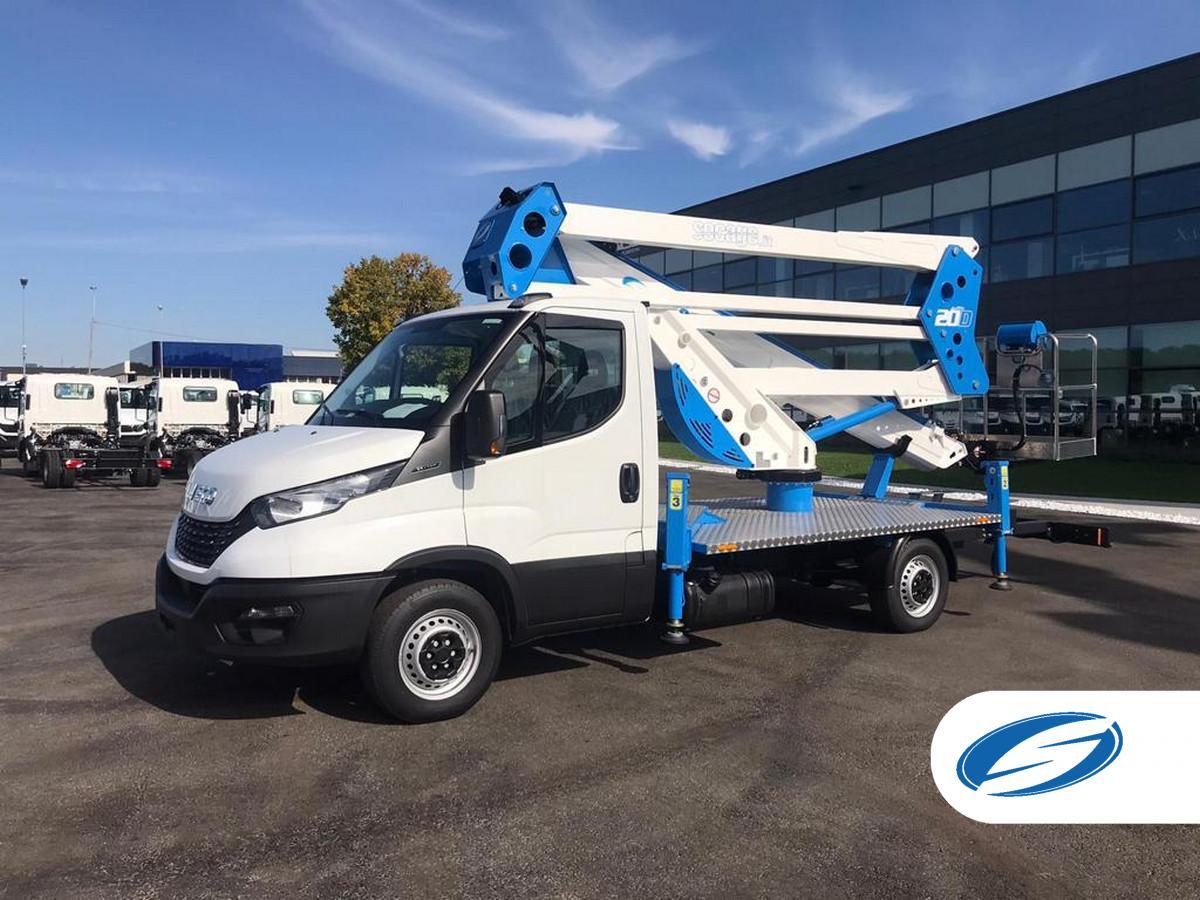

The Socage forSte 20D SPEED truck mounted cherry picker is an innovative double-articulated platform with SPEED functionality. Its automatic stabilisation, fitted as standard, has transformed the market, and its basket takes two operators plus materials.

Why operators choose this truck mounted cherry picker

The forSte 20D SPEED is known for the features operators value most: the complete SPEED H+H system with fixed vertical stabilisers that stay within the footprint of the vehicle, a front-mounted basket and the ability to carry out several movements at once.

SPEED H+H: safe, simple stabilisation

Socage’s SPEED H+H function increases safety and makes correct set-up easy, which is why the 20D SPEED is seen as one of the easiest platforms to stabilise on the market.

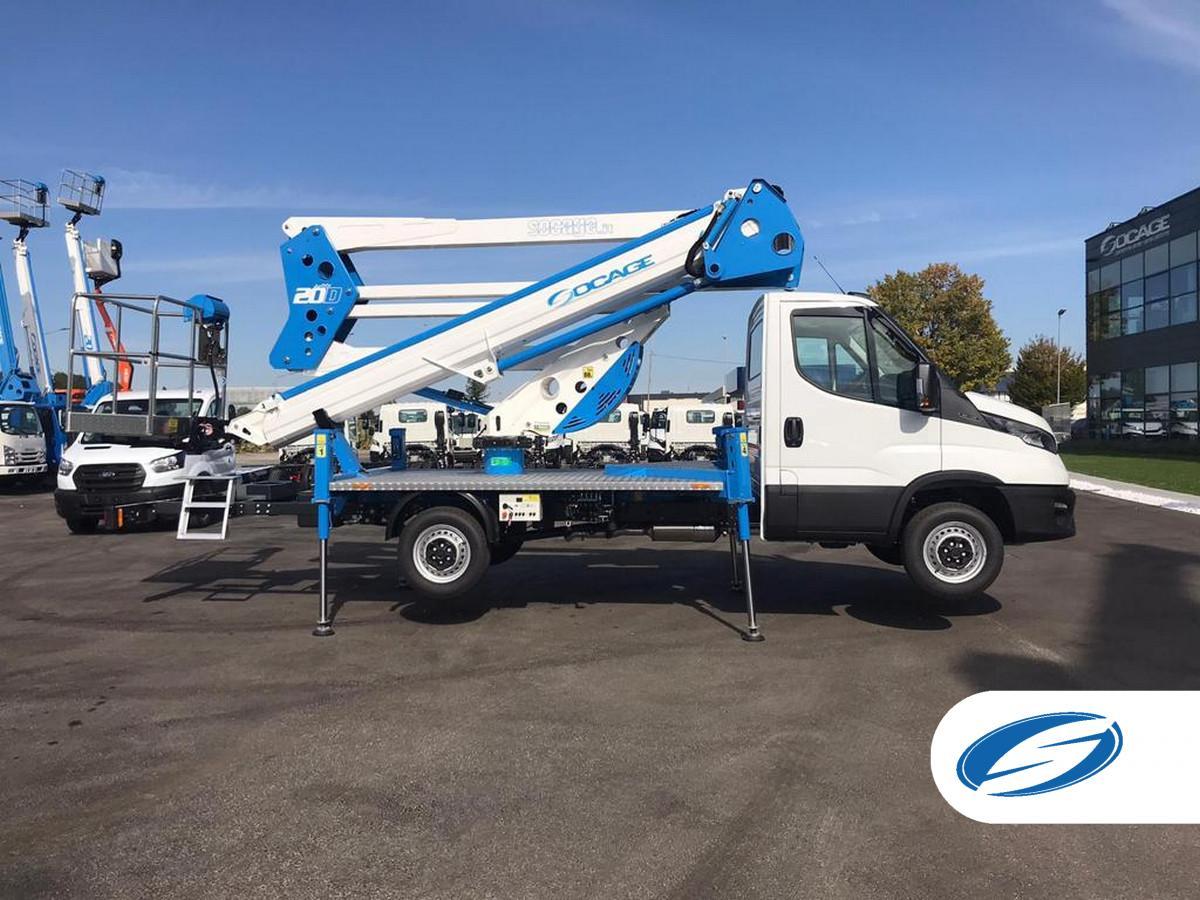

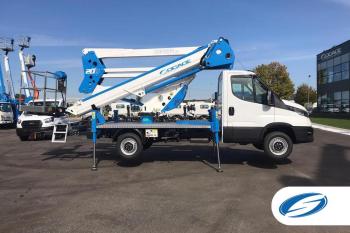

Automatic stabilisation with fixed vertical stabilisers comes as standard, it can be started from the basket, and the platform returns automatically to its transport position (HOME function).

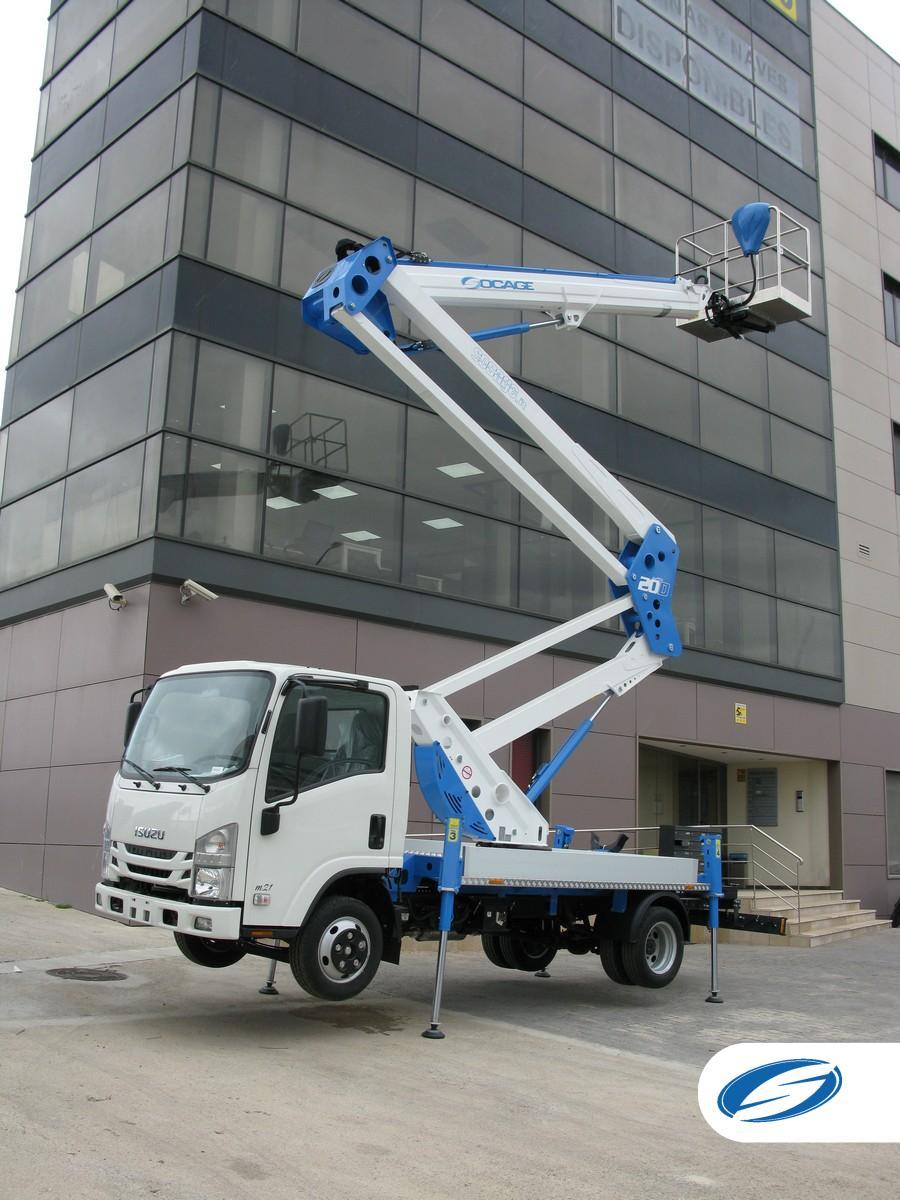

Extra-long vertical stabilisers allow quick, correct set-up with better levelling in less space, and the stabiliser pads supplied as standard protect the ground where the machine is set up.

Front-mounted basket

Common on self-propelled platforms but still rare on truck mounted cherry pickers, the front-mounted basket allows more precise work in very little space, with no risk of collision because there is no boom below the basket. It also makes evacuation safer when using an optional rescue line in an emergency.

Multiple movements

The new hydraulic system, together with the Socage control console, gives smooth, proportional movements and better control, even when several movements are carried out at the same time.

Who uses the forSte 20D SPEED

Its reliability and ease of use make the 20D SPEED an ideal platform for self-drive hire and for professionals in gutter cleaning and installation, advertising and signage, facade repair and painting, building cleaning, construction and tree care. Full technical data is shown in the specification table on this page.

Buy the 20D SPEED truck mounted cherry picker in the UK

The forSte 20D SPEED is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our articulated platforms under 3.5 t or contact us for a quote.

STANDARD EQUIPMENT

AUTOMATIC STABILIZATION

This innovative standard solution for truck-mounted platforms offers great advantages and increases safety by facilitating the correct application of the stabilization maneuver.

With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.

The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
