Cherry picker truck 20A SPEED
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Urban compactness | Operational performance without compromising manoeuvrability
High Mobility
Maximum compactness
Easy to use
Designed for the city

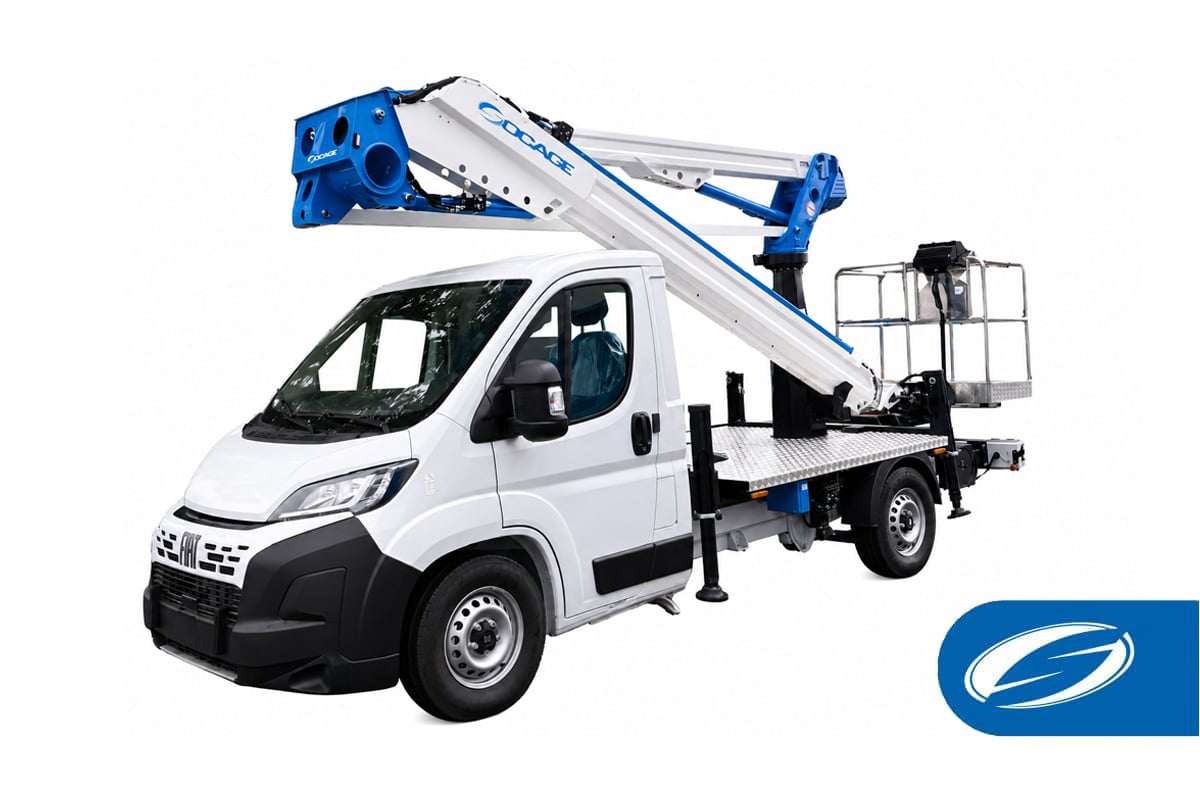

The new forSte 20A SPEED cherry picker truck was developed to meet the growing demand for compact, high-performance articulated truck-mounted platforms, especially for urban work. It stands out for its unique balance between compact dimensions and working capability.
One of the most compact cherry picker trucks in its class
Its short overall length places the 20A SPEED among the most compact platforms in its category, so operators can work easily in historic centres, congested urban areas and spaces with difficult access.
Optimised structures and systems, the result of Socage’s research and development, have produced an articulated platform that delivers high performance without compromising manoeuvrability or ease of use. Full technical data is shown in the specification table on this page.
Certified exit at height in complete safety
The forSte 20A SPEED is the first model of the new Socage generation to obtain the specific certification that allows the operator to exit the basket at height, in line with current regulations.
Exit-at-height mode is activated directly from the ground controls. Once the working level is reached, the operator can transfer safely using the double-lanyard system, staying anchored at all times throughout the manoeuvre.
Buy the 20A SPEED cherry picker truck in the UK
The forSte 20A SPEED is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our articulated platforms under 3.5 t or contact us for a quote.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Hoses and cables installed inside the boom
- SPEED automatic closure of the aerial structure
- SPEED automatic stabilisation
- H+H stabilisation with extra stroke
- Automatic stabilisation controls from the basket and from the ground
- Proportional electro-hydraulic controls with speed adjustment for all movements
- CAN BUS electronic management system
- 4 ground support plates
- 230V and 12V power sockets in the basket
- Possibility of simultaneous movements
- Cataphoresis treatment with powder coating
- Aerial structure centring indicator light on the basket
- Automatic engine speed regulation
- Front attachment of the basket
SAFETY DEVICES
- Socage Security System unintentional movement control
- Unintentional movement protection bar
- Protection of basket controls
- Thermal-magnetic circuit breaker with residual-current protection on the 230V line
- Safety bypass for operator recovery
- Automatic stabilisation
- Moment limiter with double safety system
- Automatic levelling from the basket
- Inclinometer
- Flanged blocking valves
- Emergency and stop button
- Manual emergency pump
- Possibility of remote emergency operation
- Automatic PTO disengagement
- Boom/cab anti-collision device
- Digital hour meter in the cab
- Cab indicator light for closed stabilisers
- Maintenance indicator light (Service)
- SSW Socage Safe Workplace: safety lights on the aerial structure
PERSONALIZE YOUR AERIAL PLATFORM
