Tracked cherry picker RAPTOR 35s

Compact truck-mounted platform 16A
Maximum working height
MAX. WORKING HEIGHT
35.00 m
Turret rotation
ROTATION RANGE
400º
Outriggers
SUPPORTS
Z+Z
Basket height
PLATFORM HEIGHT
33,00 m
Basket dimensions
BASKET SIZE
1800 X 700 X 1100 mm / 1200 X 700 X 1100 mm
Controls
CONTROL
Electric - Hydraulic
Lateral outreach
MAX. LATERAL REACH
21,00 m
Basket capacity
BASKET LOAD
300 kg
Basket rotation
BASKET ROTATION
90° + 90°
Gross vehicle weight
TOTAL WEIGHT
8,2 ton
speed aerial platform

Tracked cherry picker | Compact and robust with top performance

N

Extendable work basket

N

Compactness

N

Working below ground

N

Easy to use

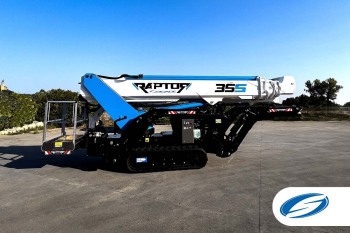

The RAPTOR 35S tracked cherry picker is an exceptional innovation in the crawler platform market, combining versatility, ease of use and high performance in an extremely compact design.

A large working area from a compact tracked cherry picker

The RAPTOR 35S offers a large working area, with a basket for two operators plus materials, and it can also work in negative positions, below ground level.

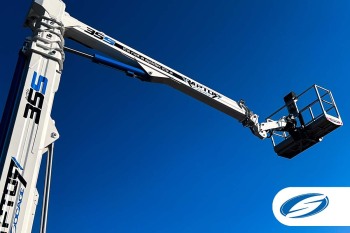

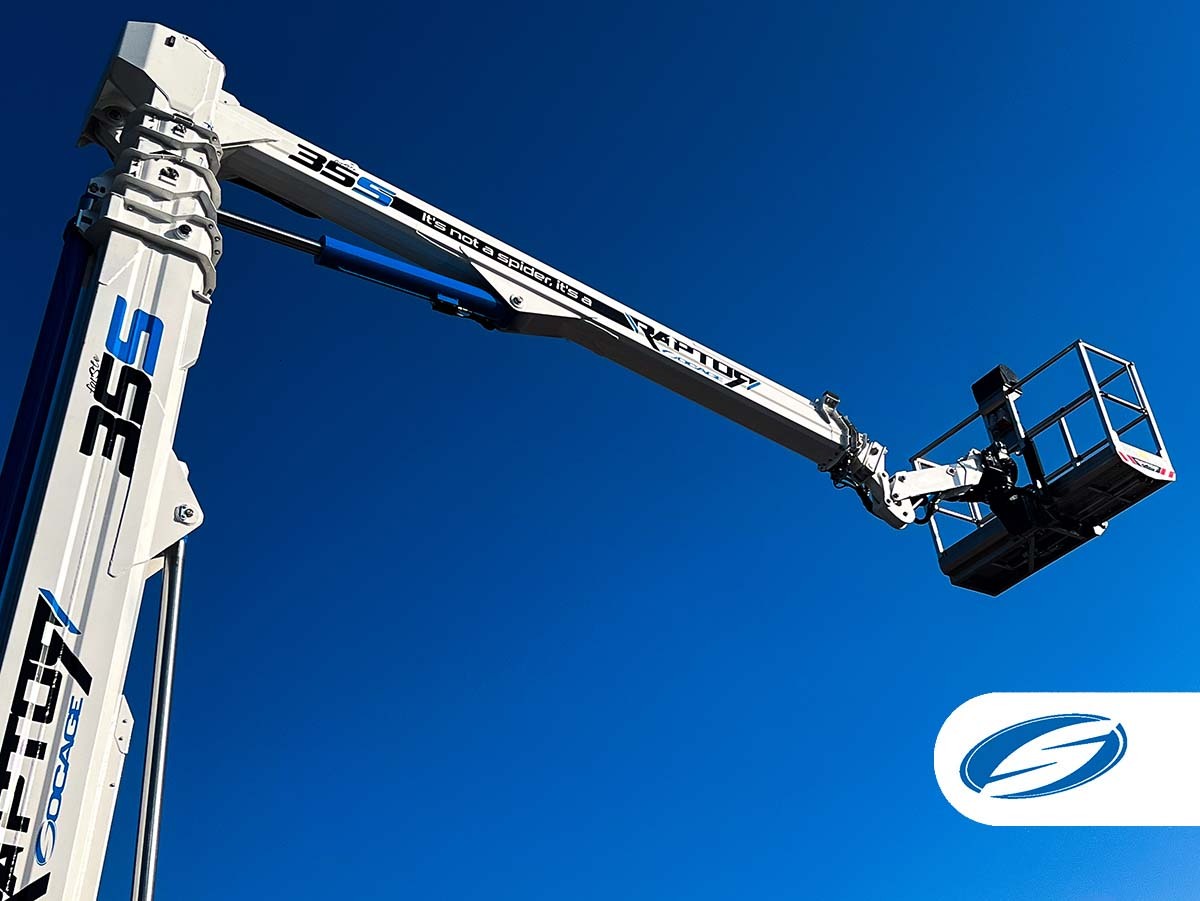

Its booms are made from high-strength, high-quality steel profiles, giving a robust structure with reduced weight that lets the operator work precisely and comfortably.

The most compact tracked cherry picker in its category

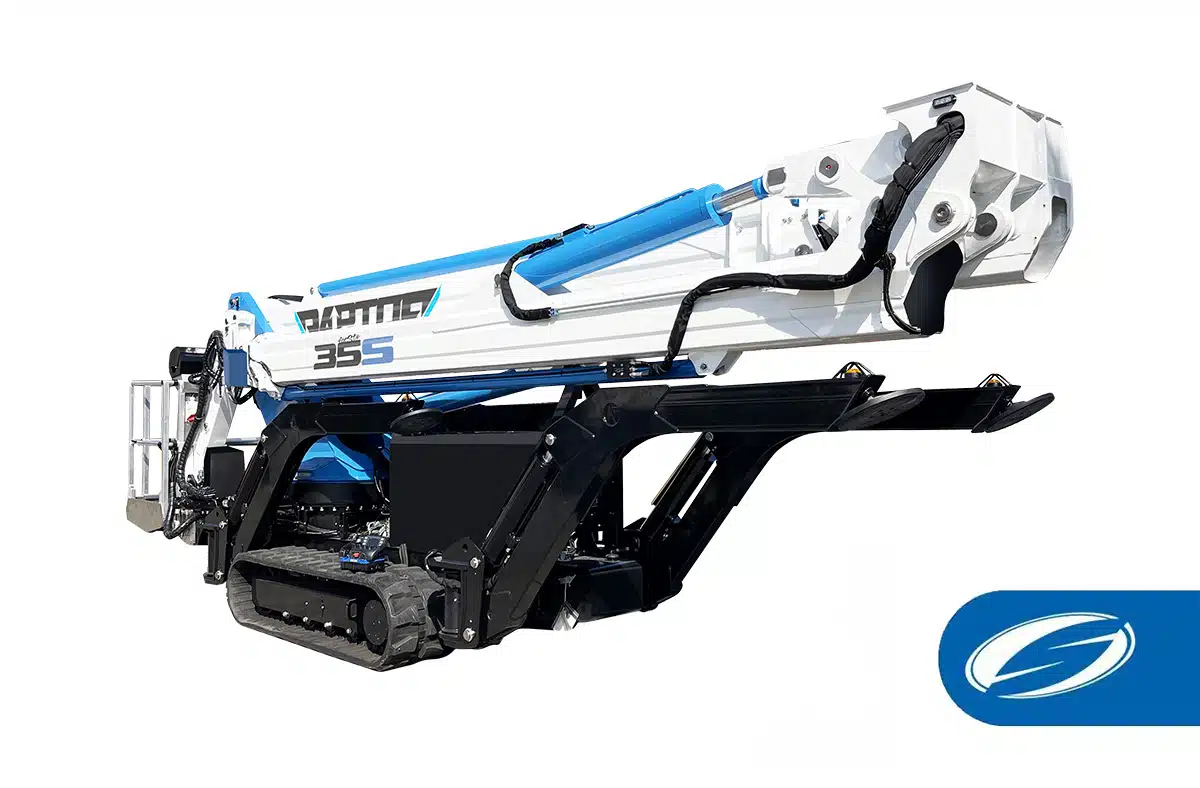

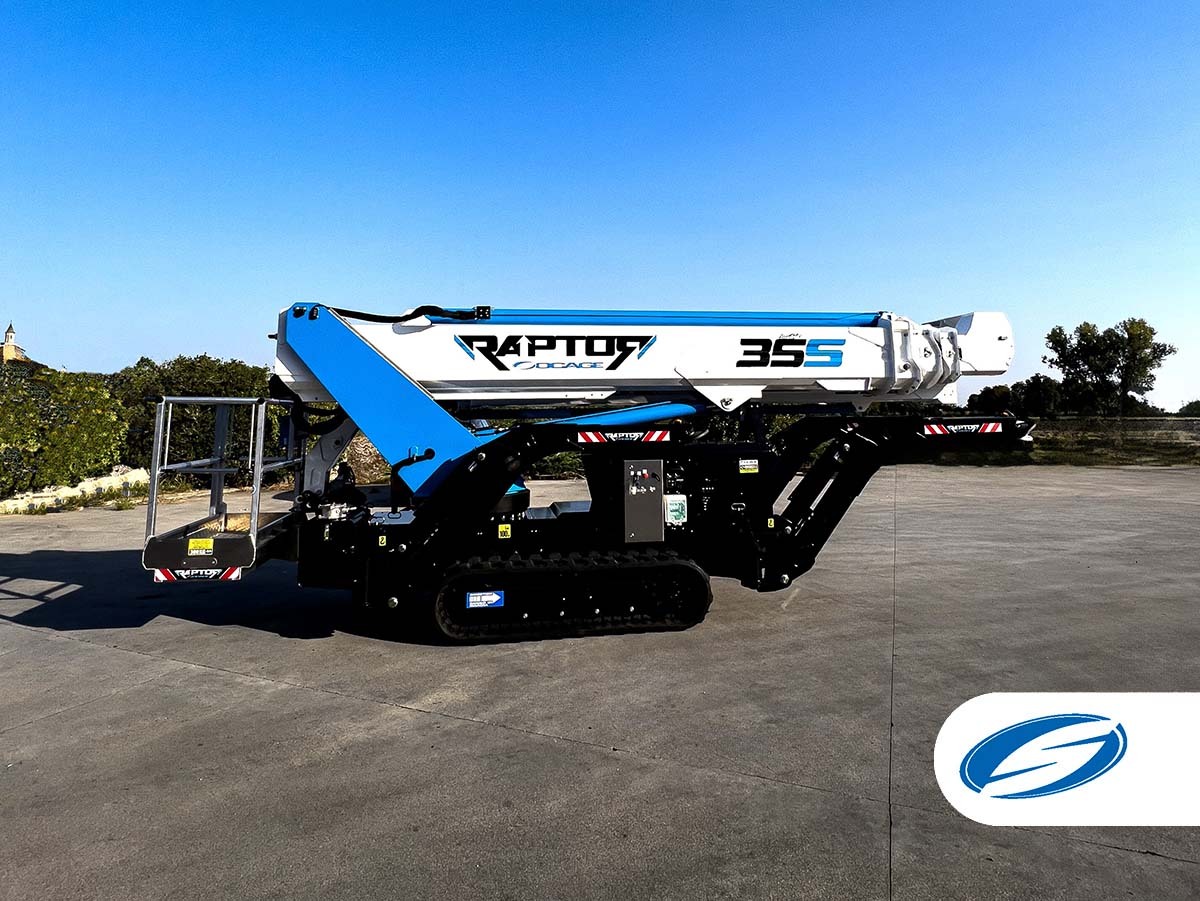

Compactness is one of the defining features of this model. The RAPTOR 35S is the most compact crawler platform in its category, so it is easy to move and transport even in tight spaces.

The basket gives the operator greater comfort at height and can be adapted to narrow spaces without being dismantled. A removable load hook is also included. Full technical data is shown in the specification table on this page.

Automatic stabilisation and closing

The RAPTOR 35S comes as standard with automatic stabilisation and automatic closing (HOME function) for easy, fast and safe operation.

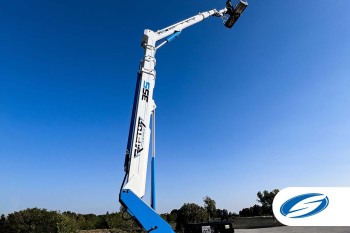

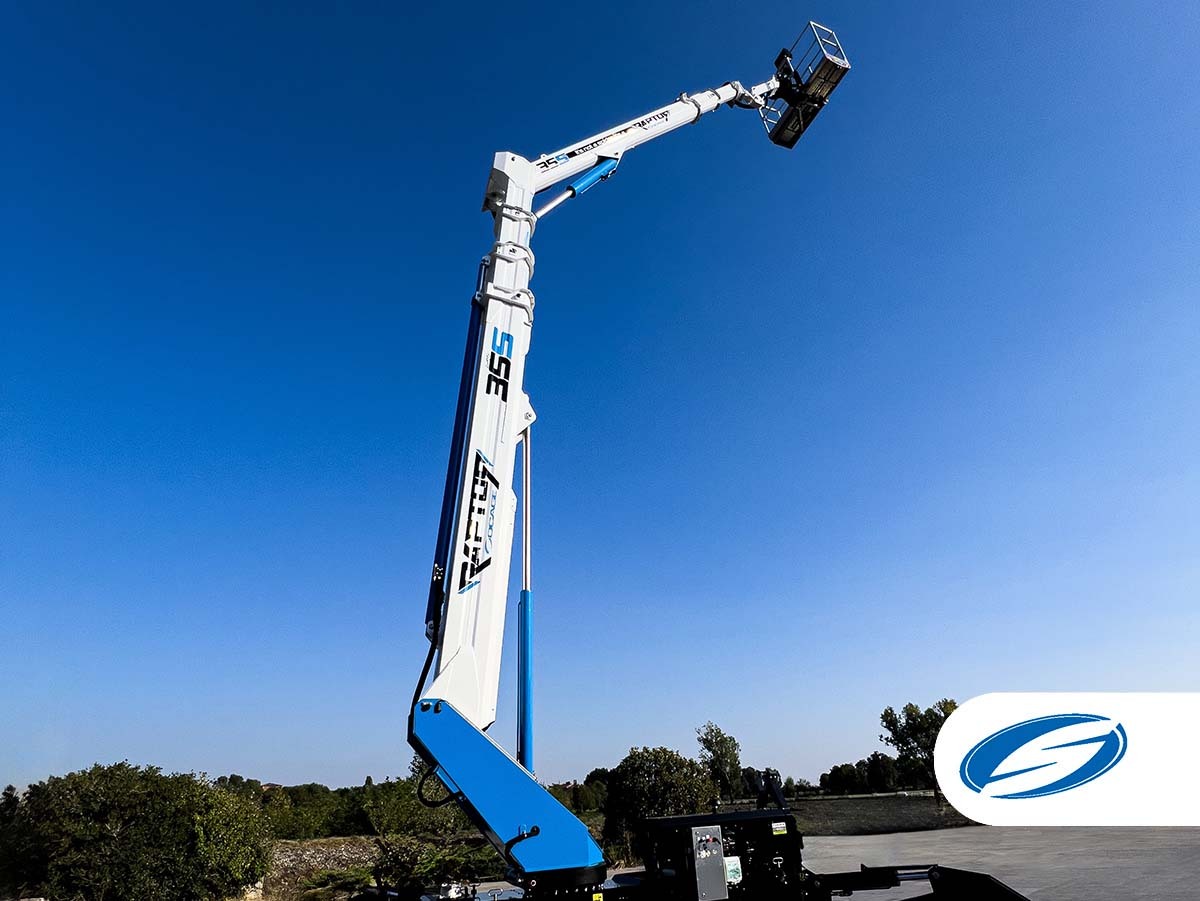

Another advantage is its high up-and-over point which, together with its generous side reach, makes it easy to access areas that would otherwise be difficult to reach.

Who the RAPTOR 35S is for

It is ideal for hire companies and professionals looking for an efficient, powerful crawler platform – a machine that combines technological innovation and advanced features to meet the needs of the most demanding users.

RAPTOR 35S tracked cherry picker in the UK

The RAPTOR 35S is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our spider lift range or contact us for a quote.

STANDARD EQUIPMENT

stabilizzazione

AUTOMATIC STABILIZATION

This innovative standard solution for truck-mounted platforms offers great advantages and increases safety by facilitating the correct application of the stabilization maneuver.

With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.

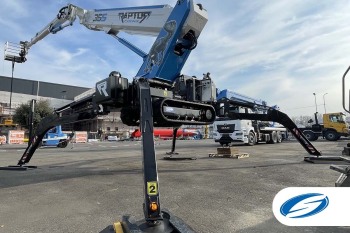

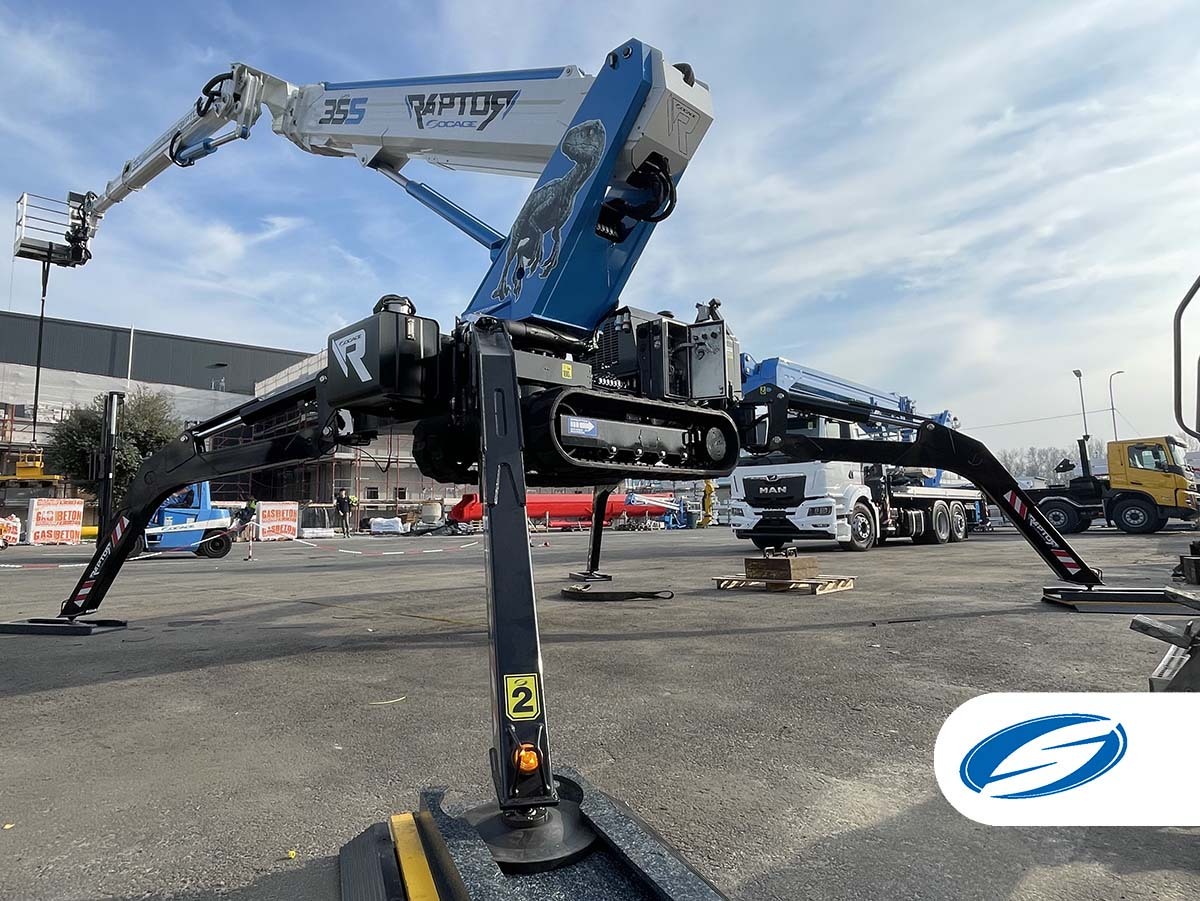

The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.

caracteristiche tecniche

TECHNICAL FEATURES

• Automatic closing
• Automatic opening of the aerial part
• Automatic stabilization
• Hydraulically extendable basket
• SSW: LED safety lights
• Electric hour-counter
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 380V-50Hz
• Flanged holding valves
• Bi-energy (Diesel engine + Electric motor)
• Multi-position stabilization area
• Under-bridge working mode
• Pre-installation for optional winch of 500kg

sicurezza

SAFETY DEVICES

PERSONALIZE YOUR AERIAL PLATFORM
