Truck-mounted Cherry Picker 14A SPEED
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Truck-mounted Aerial Platform | Urban Compactness
Truck-mounted Aerial Platform | Urban Compactness
Compact Dimensions
Simple and reliable
High Mobility

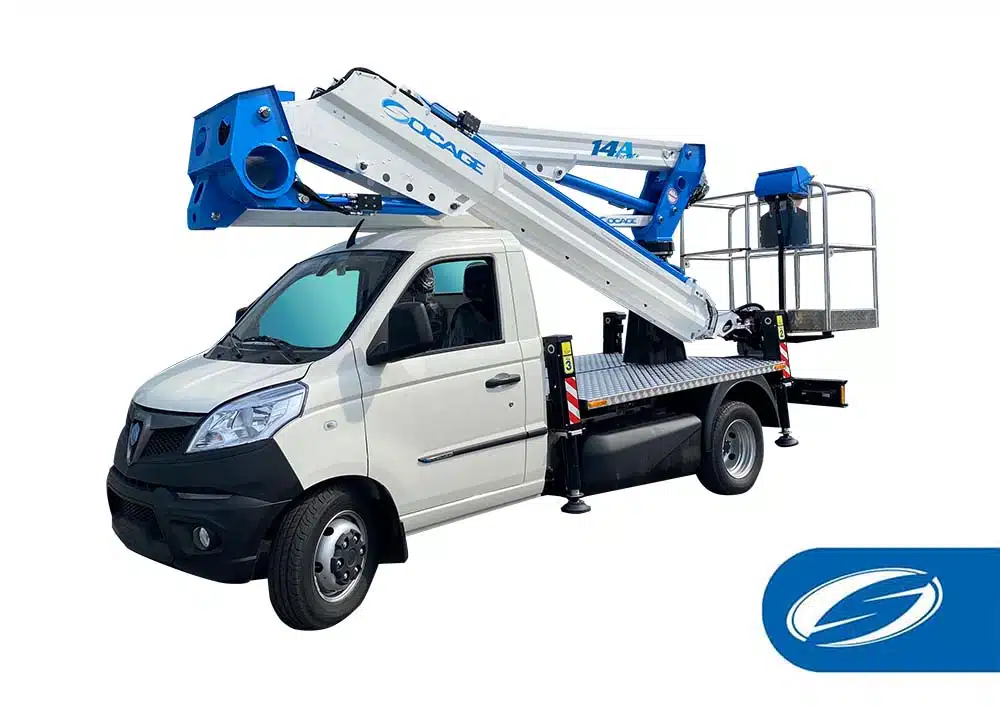

The Socage forSte 14A small bucket truck is the city-friendly version of the forSte 14A articulated pick-up platform. Its basket takes two operators plus materials, and it is designed for compact vehicles with shorter wheelbases under 3.5 tonnes.
A small bucket truck made for the city
Easy to operate and reliable, it offers high mobility and excellent performance in urban traffic. Its compact dimensions let it work in hard-to-reach places with limited room to manoeuvre – ideal for city centres and historic areas that most vehicles cannot reach.
Simplicity and versatility in a compact platform
The stabilisation system can vary depending on the vehicle the platform is mounted on. Wherever possible, fixed vertical stabilisers are preferred: they are simpler and more versatile to use and take up less space, which is highly valued in urban work.
Precise, well-protected controls
The electro-hydraulic control is very precise and easy to use. All components, including the extension cylinder, are protected inside the boom to prevent damage from impacts or the elements.
Equipped to your needs
The low weight of the assembly leaves room for a wide range of high-quality extra equipment to meet each customer’s needs, depending on the vehicle it is mounted on.
Emission-free work in town
Its urban character and the option of a hybrid version make this small bucket truck an environmentally friendly choice, allowing emission-free work in city centres. Full technical data is shown in the specification table on this page.
High mobility for urban jobs
The versatility and high mobility of the forSte 14A make it an ideal tool for city-centre work such as tree pruning, lighting maintenance, cleaning and telecommunications.
Buy the forSte 14A small bucket truck in the UK
The forSte 14A is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our articulated platforms under 3.5 t or contact us for a quote.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Hoses and cables installed inside the boom
- SPEED Automatic closing of the aerial part
- SPEED Automatic stabilization
- Vertical stabilizers with extra stroke, SOCAGE H+H
- Proportional electro-hydraulic controls with speed regulation of all movements
- Electronic safe system CAN BUS
- Engine start/stop control from basket
- Possibility of simultaneous manoeuvers
- 12V socket on the basket
- Cataphoresis treatment with powder coating
- 4 outrigger plates
- Aerial part centering light on the basket
- Automatic engine speed regulation
- Front attachment of the basket
SAFETY DEVICES
- Socage Security System: Unintentional maneuver consent button
- Unintentional maneuvering protection bar
- Controls protection of the basket
- Moment limiting device with double security
- Automatic basket leveling
- Inclinometer
- Flanged block valves
- Emergency stop button
- Emergency manual hand pump
- Automatic PTO disengagement
- Smart anti crash cab protection
- Electrical hour counter
- Maintenance light (Service)
- SSW Socage Safe Workplace: safety light on the aerial part []
- Cab light closed outriggers
- Safety bypass for operator rescue
- Recovery System
PERSONALIZE YOUR AERIAL PLATFORM
