forSte 75TJJ Truck-Mounted Aerial Platform
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Truck-mounted aerial platform | High performance
Double telescopic
Large working area
Multi-zone support system
Optional with winch

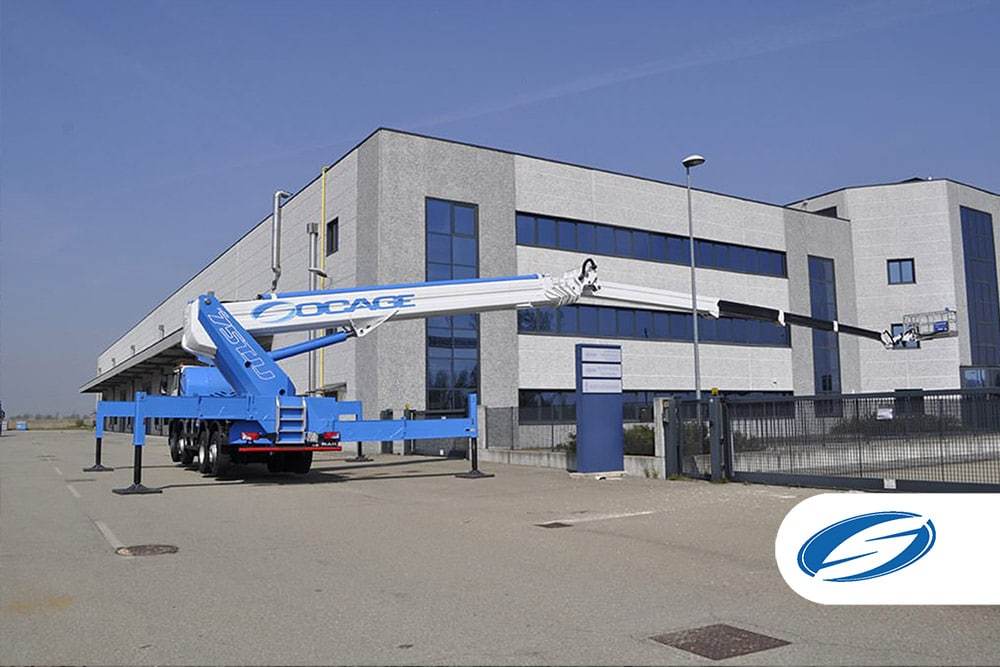

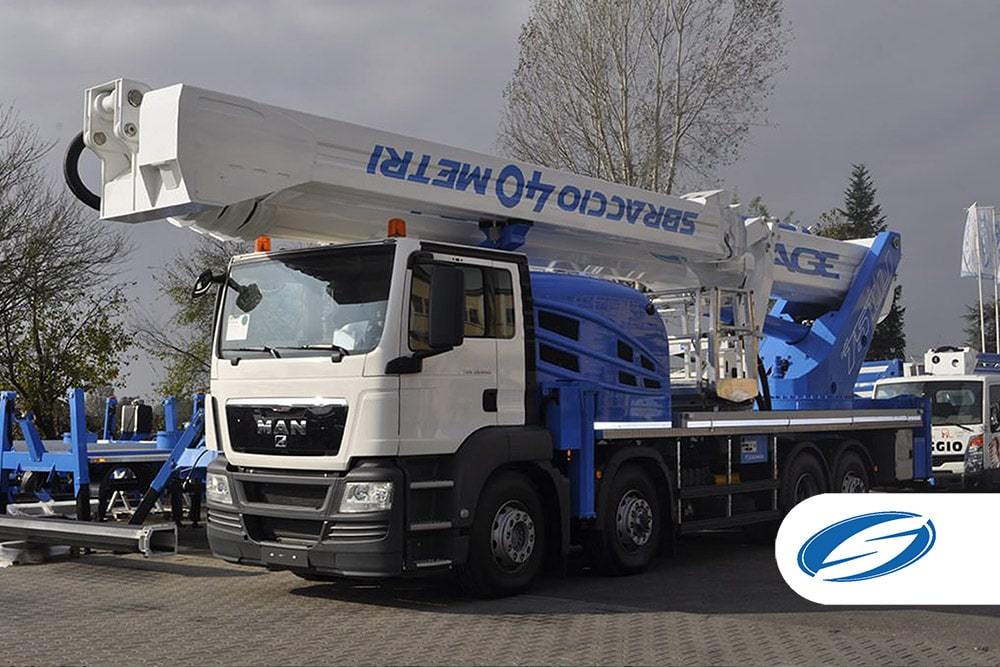

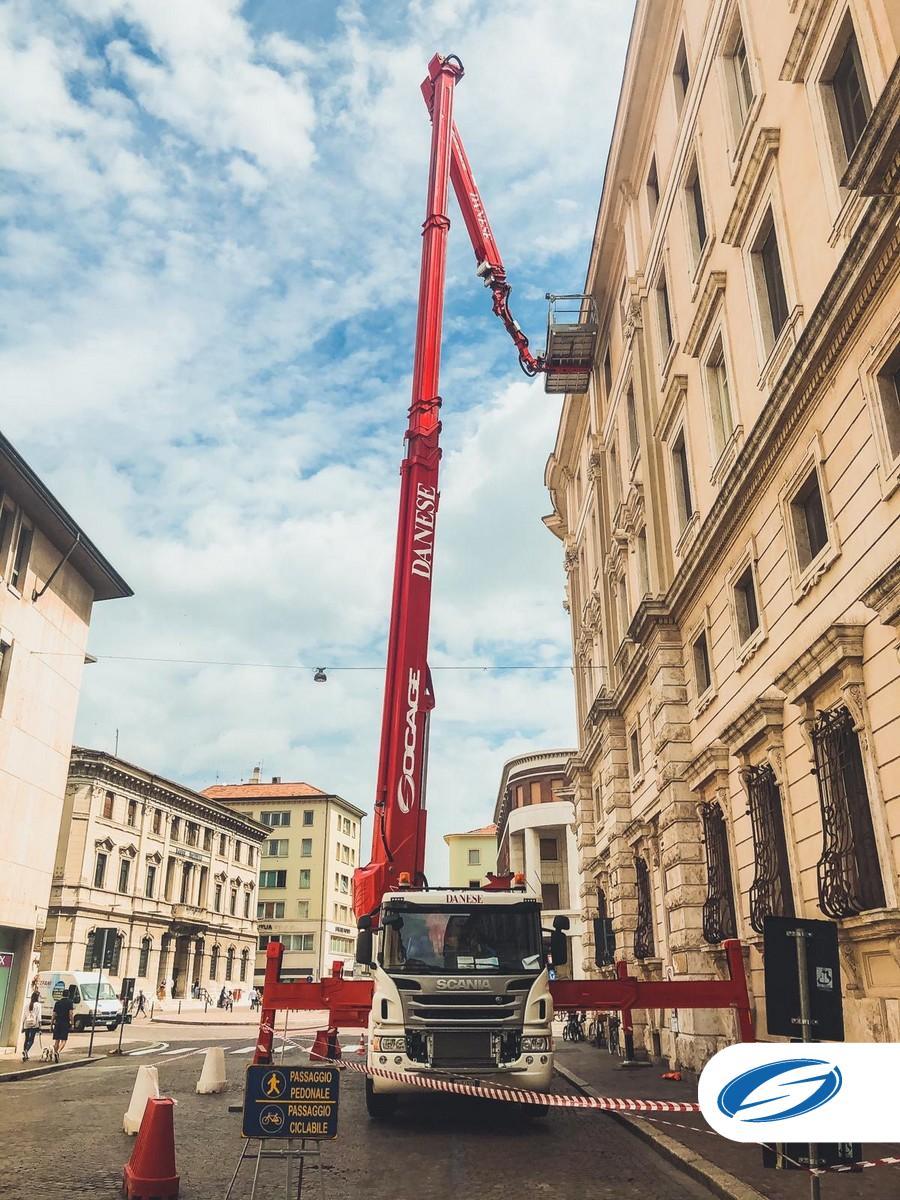

The forSte 75TJJ large cherry picker with jib is a double telescopic truck-mounted platform with a movable jib arm, designed for the heaviest vehicles in the range. Its secondary boom with articulated jib allows manoeuvres that would not be possible with a simple jib, and its basket carries a large team with their equipment.
Full control from the LCD display
An LCD display gives the operator direct access to key information such as the working area, the status of the load moment limiter and the stabiliser status.
Multi-zone stabilisation

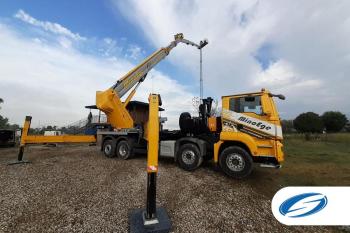

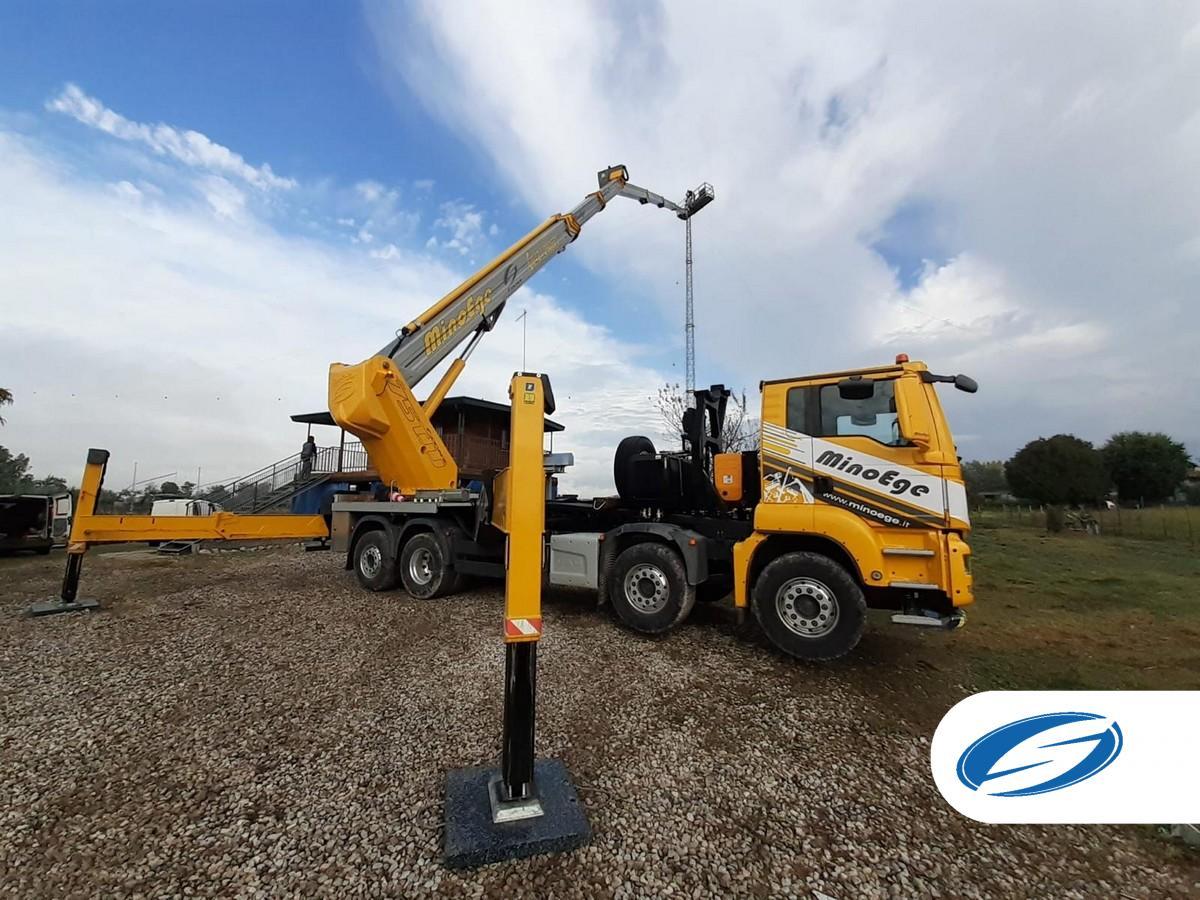

The 75TJJ comes as standard with a multi-zone stabilisation system, so the operator can choose between different set-up options depending on the space available around the vehicle. The rear stabiliser beams extend hydraulically to increase the support area and the maximum performance of this large cherry picker with jib.
High versatility
Emergency operation by radio remote control lets the operator choose the best possible viewing position.
Use it as a crane

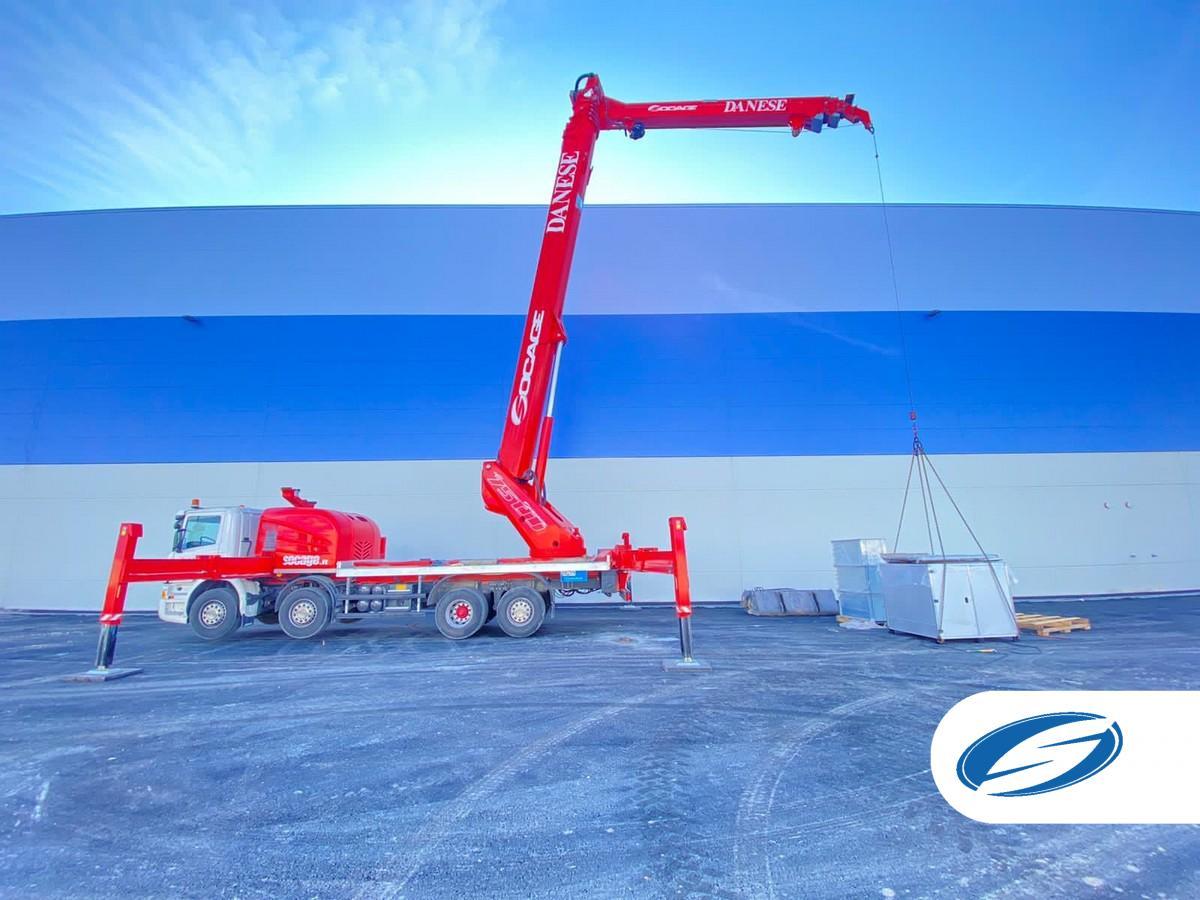

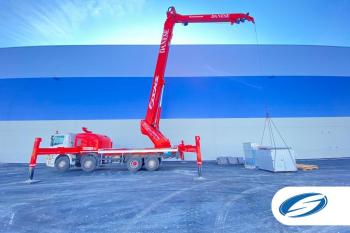

With a hydraulic winch mounted on the boom, the 75TJJ can be used as a crane once the aluminium basket is removed.
Productive and manoeuvrable
The wide slewing range significantly increases productivity and avoids downtime for repositioning. The aluminium basket extends hydraulically and rotates, giving excellent manoeuvrability even when working below ground level or behind roof edges. Full technical data is shown in the specification table on this page.
forSte 75TJJ large cherry picker with jib in the UK
The forSte 75TJJ is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our large telescopic platforms with jib or contact us for a quote.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- SOCAGE convertible basket possibility (Eternit)
- 2nd Jib 180 ° manual rotation
- Automatic stabilization
- Partially stabilized working areas
- Automatic closing
- Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
- Walkie Talkie
- Main and auxiliary motor start / stop control from the basket
- Multifunction radio control for ground emergency control of the aerial part and stabilization
- Electric hour counter
- Automatic PTO disengagement
- N ° 2 fixed roto-lamp on the vehicle cabin
- 230V / 400V electrical socket
- Heat exchanger on the hydraulic system
- 2 folding sides, 2 fixed (h 150 mm)
- 4 ground support plates (700 x 700 x 50 mm)
- Anti-corrosion treatment on unpainted components
Optional
– Winch 1500 kg
SAFETY DEVICES
- SSW Socage Safe Workplace: safety light on the aerial parts
- Emergency and stop button
- Cross-check of open stabilizers
- Anemometer
- Load limiter in the basket
- Moment limiter with double safety and control of correct operation
- Multi axial device for visual control of frame stabilization
- Emergency descent with electric pump (in the absence of the auxiliary motor)
- Rotation brake of the turret with automatic insertion
- Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
- Multifunction radio control for emergency control
- Automatism for rotation lock with extension of the stabilizers on one side only
- Chassis flatness sensor
- Flanged block valves
- Working lights under the basket
- Electrical hours-counter
- Working lights on the aerial part
