Pick-Up with forSte 16A Aerial Work Platform
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Maximum performance with a pick-up aerial work platform
Compact Dimensions
Payload reserve for material
Off-road mobility
Front-end basket attachment

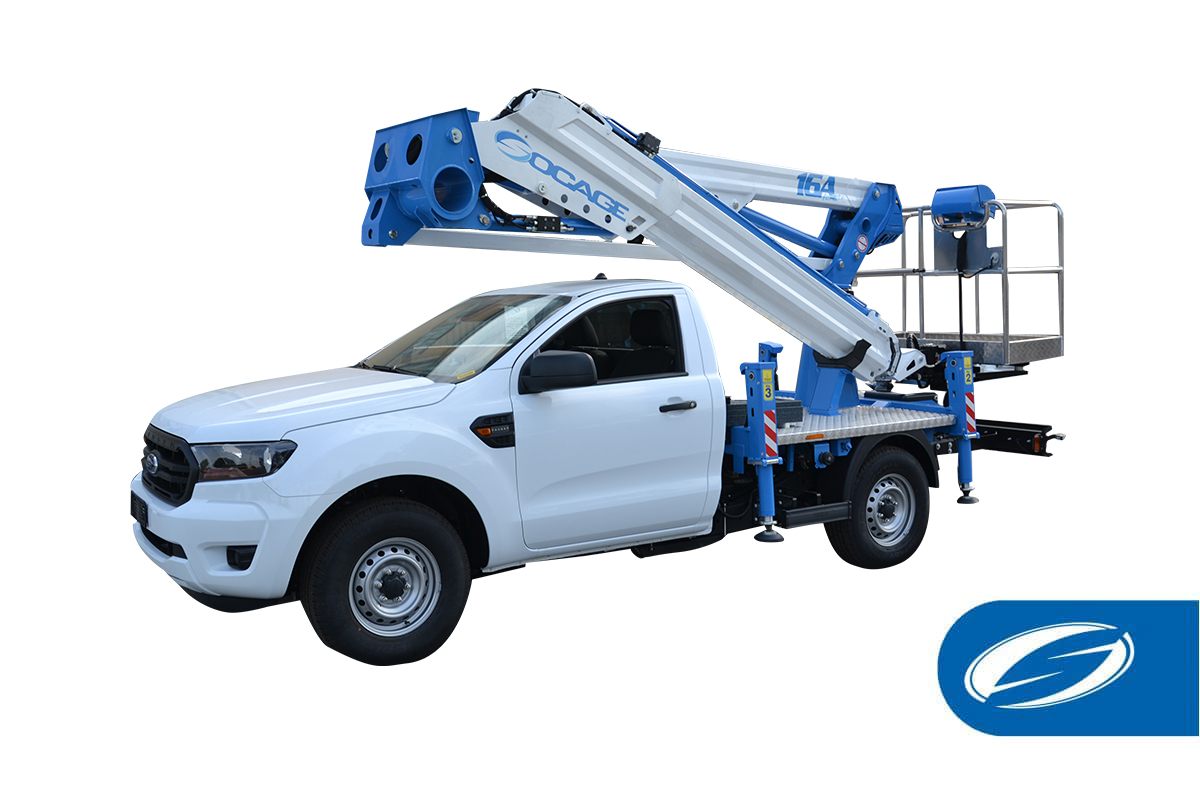

The Socage forSte 16A 4×4 MEWP is an innovative articulated telescopic aerial work platform for pick-up vehicles, in both 4×2 and 4×4 versions. Its basket takes two operators plus materials and rotates left and right, and automatic return to the transport position comes as standard.
A light, robust 4×4 MEWP
The boom is made from modern high-strength steel profiles, giving a high-quality, lightweight platform with a structure designed specifically for pick-up vehicles.
Front-mounted basket
The articulated boom of the 16A gets over obstacles at height more easily, and good load distribution ensures confident off-road handling.
The front-mounted basket is an innovative feature of this pick-up platform. It makes it easier to approach roofs and overhead structures, and to carry out certain tree-cutting manoeuvres, with greater precision and no risk of collision.
Simultaneous movements
The new hydraulic system, working with the Socage control panel, delivers smoother, proportional movements and better control, even when several movements are made at once.
Mobility in town and off-road
The comfort and mobility of a pick-up, combined with the compact dimensions of the 16A, set this 4×4 MEWP apart from other vehicle-mounted platforms, with excellent manoeuvrability in city centres where access and space are limited.
Great adaptability
The low weight of the assembly, the large free space on the load bed and, depending on the pick-up model and the country of registration, the option to increase the vehicle’s permitted gross weight let customers adapt the equipment extensively to their needs.
Mounting frames are available for Toyota Hilux, Isuzu D-Max and Ford Ranger pick-ups, in both 4×2 and 4×4 versions. Full technical data is shown in the specification table on this page.
Buy the forSte 16A 4×4 MEWP in the UK
The forSte 16A is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our 4×4 cherry pickers or contact us for a quote.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- SPEED Automatic closing of the aerial part
- Hoses and cables installed inside the boom
- Proportional electro-hydraulic controls with speed regulation of all movements
- Engine start/stop control from basket
- Electronic safe system CAN BUS
- Possibility of simultaneous manoeuvers
- 12V socket on the basket
- Cataphoresis treatment with powder coating
- Automatic engine speed regulation
- Aerial part centering light on the basket
- 4 outrigger plates
- Front attachment of the basket
SAFETY DEVICES
- Socage Security System: Unintentional maneuver consent button
- Unintentional maneuvering protection bar
- Controls protection of the basket
- Safety bypass for operator rescue
- Moment limiting device with double security
- Automatic basket leveling
- Inclinometer
- Flanged block valves
- Emergency stop button
- Emergency manual hand pump
- Automatic PTO disengagement
- Smart anti crash cab protection
- Electrical hour counter
- Cab light closed outriggers
- Maintenance light (Service)
- Recovery System
- SSW Socage Safe Workplace: safety light on the aerial part
PERSONALIZE YOUR AERIAL PLATFORM
