Electric cherry picker 18STE

Compact truck-mounted platform 16A
MAX. WORKING HEIGHT
17.80
ROTATION RANGE
190º + 190º
SUPPORTS

H+H

PLATFORM HEIGHT
15.80 m
PLATFORM SIZE
140x70x110 cm
CONTROL
Electro-hydraulic
MAX. LATERAL REACH
10.50 m
PLATFORM LOAD
230 kg
PLATFORM ROTATION
60º + 60º
TOTAL WEIGHT
2.0 ton
SUPPORT SURFACE
3000 x 3150 mm | 3150 x 3450 mm
HOOK
-
BATTERY

44V – 10.12kWh – 228Ah

BATTERY

44V – 10.12kWh – 228Ah

Power and sustainability in a new-generation electric telescopic tracked platform.

N

Zero emissions, maximum autonomy.

N

Silent and high-performing.

N

Perfect for indoor and outdoor use.

N

Efficiency without compromise.

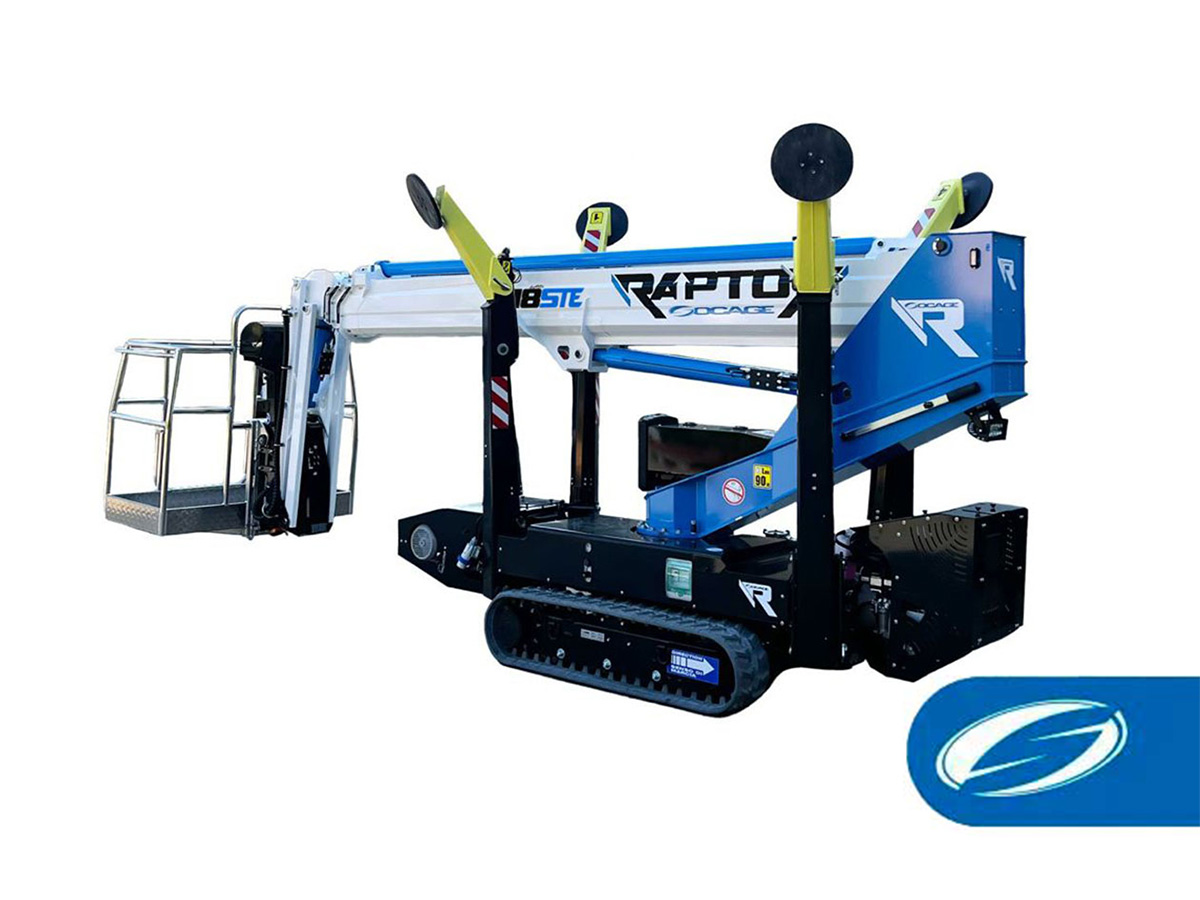

The Raptor 18STE is the trucked platform 100% electric which combines the professional performance of the Raptor series with the most advanced lithium battery technology. Ideal for both internal and external uses, it offers zero emissions, operational silence and high working autonomy.

With a maximum working height of 17,80 meters and a lateral outreach up to 10,50 meters, the 18STE guarantees stability, precision and comfort for two operators thanks to the 230 kg capacity basket.

The battery allows at least 15 complete work cycles on a single charge, while fast charging allows to reach 60% in 4 hours and 100% in 8 hours. You can also work by connecting the power cable for continuous operations.

The Raptor 18STE combines power and sustainability in a single machine: the ideal solution for those looking for high performance, reliability and reduced environmental impact.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

• Automatic closing
• Automatic stabilization
• Quick release of the basket
• Lifting Hook Support 230kg
• SSW: LED safety lights
• LED travel light
• Booms realized in profiles advanced high tensile steel
• Jib lifting during travel
• Cataphoresis treatment
• Hydraulically extendable tracks
• White non-marking tracks
• Lifting hook on stabilisers
• Extra-large outrigger plates
• Pre-installation for Raptor Stab. Optional
• Socage Connect
• Integrated charger + extra battery for radio control
• Multifunction hydraulic distributor
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 230V-50Hz
• 10kW 48V Lithium battery pack
• Trailer transport + Raptor Trailer optional
