4×4 cherry picker forSte 14A
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
The genuine 4x4 aerial work platform
Maximum comfort
Numerous customization options
Off-road capability
Unrestricted working area

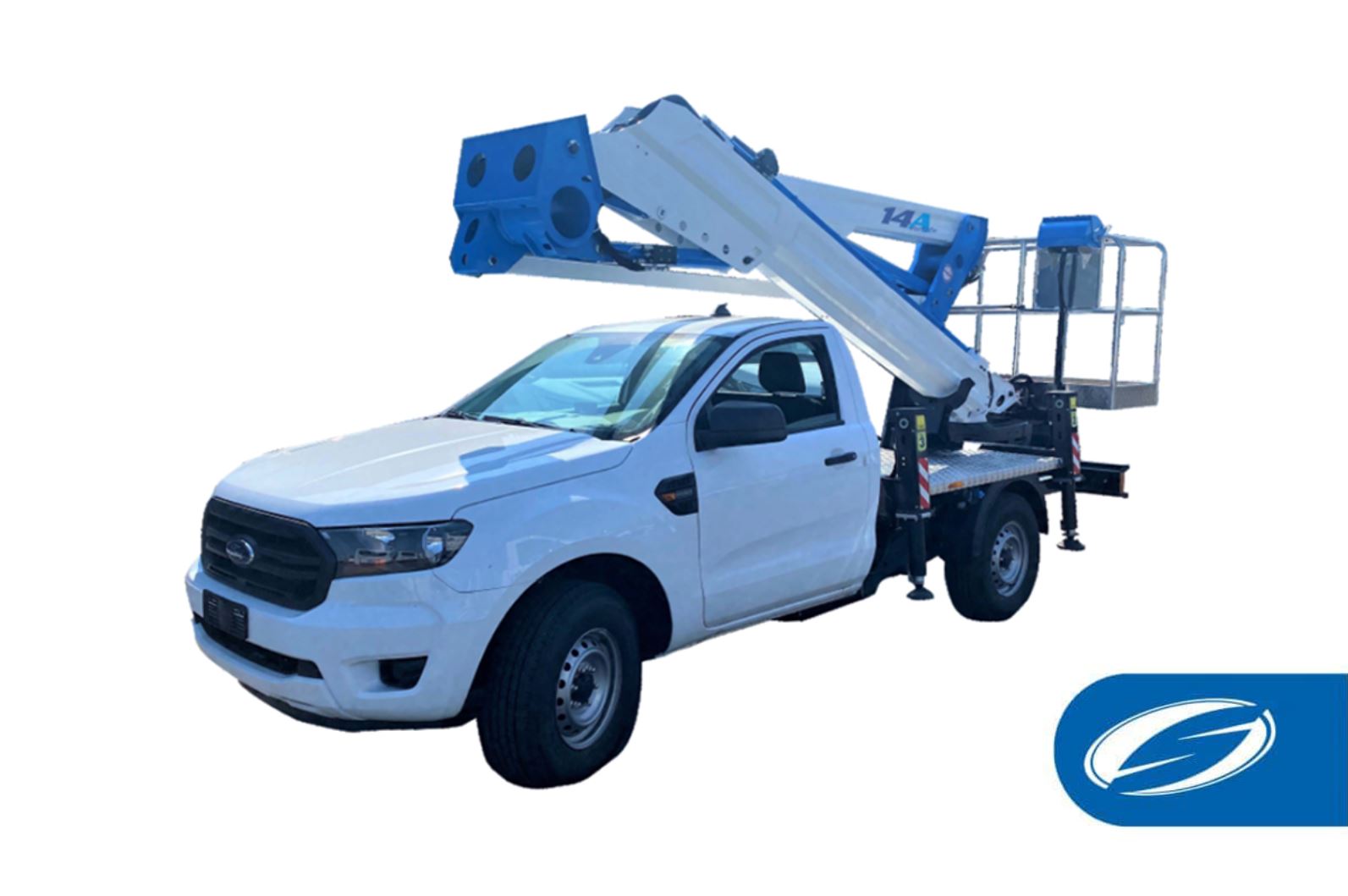

The Socage forSte 14A 4×4 cherry picker is an articulated pick-up platform with basket, designed and optimised for both 4×2 and 4×4 vehicles. Its basket takes two operators plus materials with no restrictions across the whole working area, and automatic closing and the basket mounting come as standard.
Europe’s benchmark 4×4 cherry picker
Since its launch, the 14A has been the European benchmark for platforms on pick-ups, fitted to Europe’s best-selling 4×4 vehicles – the genuine 4×4 platform.
Compact, easy to use and reliable
It stands out above all as an easy-to-use, reliable articulated platform with an optimised, compact installation on the pick-up.
Compact dimensions, no rear overhang, well-balanced load distribution and 4×4 drive give excellent off-road performance, so even the most difficult jobs can be reached where conventional truck-mounted platforms cannot go.
Comfort and mobility
The comfort and mobility of a pick-up, in 4×2 or 4×4, make this 4×4 cherry picker highly functional and an excellent solution both in and out of town.
Precise, well-protected controls
The electro-hydraulic control is very precise and smooth. All components, including the extension cylinder, are protected inside the boom to prevent damage from impacts or the elements.
Customised for every fleet
The low weight of the structure, the large free space on the load bed and, depending on the pick-up model and the country of registration, the option to increase the vehicle’s permitted gross weight allow a wide range of high-quality extra equipment to be fitted to meet each customer’s needs.
This versatility has made the 14A one of the most widely used vehicle-mounted platforms in the fleets of large maintenance companies, especially in the energy and telecommunications sectors. It is available for the 4×2 and 4×4 versions of the Toyota Hilux, Isuzu D-Max and Ford Ranger. Full technical data is shown in the specification table on this page.
Buy the forSte 14A 4×4 cherry picker in the UK
The forSte 14A is available from Socage UK in Hanbury, Worcestershire, with sales, servicing and spare parts across the United Kingdom. See the rest of our 4×4 cherry pickers or contact us for a quote.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- SPEED Automatic closing of the aerial part
- Hoses and cables installed inside the boom
- Proportional electro-hydraulic controls with speed regulation of all movements
- Engine start/stop control from basket
- Electronic safe system CAN BUS
- Possibility of simultaneous manoeuvers
- 12V socket on the basket
- Cataphoresis treatment with powder coating
- Automatic engine speed regulation
- Aerial part centering light on the basket
- 4 outrigger plates
- Front attachment of the basket
SAFETY DEVICES
- Socage Security System: Unintentional maneuver consent button
- Unintentional maneuvering protection bar
- Controls protection of the basket
- Safety bypass for operator rescue
- Moment limiting device with double security
- Automatic basket leveling
- Inclinometer
- Flanged block valves
- Emergency stop button
- Emergency manual hand pump
- Automatic PTO disengagement
- Smart anti crash cab protection
- Electrical hour counter
- Cab light closed outriggers
- Maintenance light (Service)
- Recovery System
- SSW Socage Safe Workplace: safety light on the aerial part
PERSONALIZE YOUR AERIAL PLATFORM
