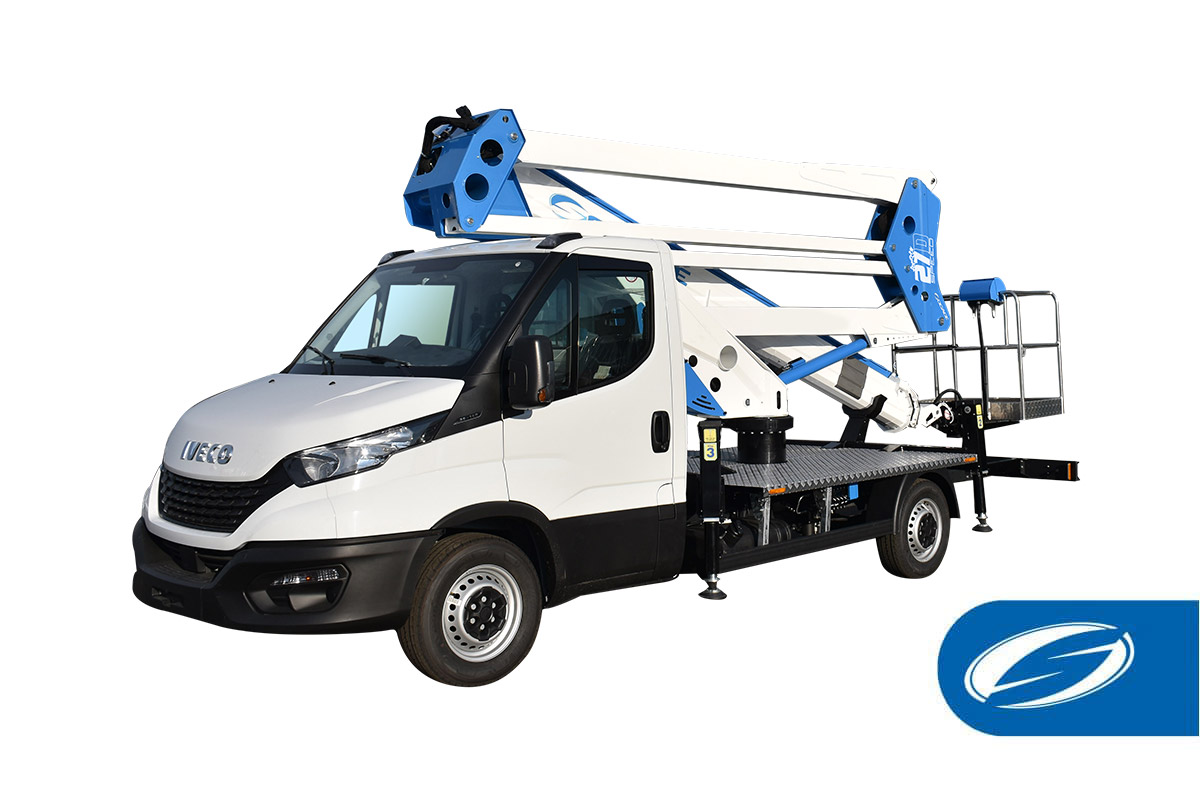

Truck-mounted Cherry Picker forSte 27d SPEED
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Truck-Mounted Aerial Platform | The most productive articulated platform
Versatility
Easy operation and safety
Smooth and precise operation
Easy stabilization
The Socage forSte 27D SPEED truck-mounted cherry picker is the highest double articulated platform on the market in the 3.5-ton segment. Equipped with an automatic stabilization system as standard, the forSte 27D SPEED articulated platform is a record-breaking model. It is easy to operate, reliable, and enhances operator safety, information, and support.
This aerial platform achieves a working height of 27 m and a lateral outreach of 12 m with a basket capacity of 250 kg (2 operators + material).
Its high performance, both in terms of working height and lateral outreach, guarantees a large working radius and thus enables unparalleled productivity.
The Socage forSte 27D SPEED truck-mounted cherry picker is the ideal solution for all professionals with the highest demands for working at height. It is also the perfect choice for rental companies who want to offer their customers aerial platforms that exceed standard market parameters.
Automatic stabilization as standard
The SPEED H+H function comes standard with automatic stabilization, which increases safety and enables correct stabilization even from the basket. The SPEED series also features the automatic return to transport position (HOME function).
The use of fixed vertical stabilizers offers more reserve for overcoming uneven ground and avoids damage to the surface. The vehicle-width vertical support of the aerial platform offers maximum benefits, precise and close positioning to the object, even in narrow working areas.
Smooth and precise operation
The hydraulic system, in conjunction with the new Socage control console, enables smoother and more gradual movements, providing the operator with more control, as well as simultaneous movements.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Internal energy management in the boom arm.
- Autom. Home function.
- SPEED automatic support.
- Vertical supports with extra excavation.
- Support control from basket and
- Ground control station.
- Electro-hydraulic proportional control on all movements.
- Electron. CAN BUS control.
- 4 support plates.
- 230V and 12V socket in the working basket.
- Simultaneous control possible.
- Cataphoresis treatment with powder coating.
- Frontal basket connection.
- Autom. Speed control.
- Centering control light in the working basket.
SAFETY DEVICES
- Socage safety system against unintentional control movements.
- Protective strip against unintentional actuation.
- Cover basket control.
- Magnetothermal FI circuit breaker on 230V line.
- Safety bypass for the recovery of the operator.
- Automatic leveling.
- Load moment limiter with double safety.
- Automatic basket leveling.
- Inclinometer.
- Flanged block valves.
- Emergency stop switch.
- Manual emergency pump.
- Remote-controlled emergency operation possible.
- Automatic shutdown PTO.
- Anti-collision protection boom/vehicle cab.
- Digital hour meter in the driver’s cab.
- Support control light in vehicle cab.
- Maintenance indicator (service).
- Safety lighting on the aerial work platform
PERSONALIZE YOUR AERIAL PLATFORM
More than 40 years of experience
