Cherry picker lift truck FORSTE 20T SPEED

MAX. WORKING HEIGHT

19.60 m

ROTATION RANGE

700º

SUPPORTS

H+H

PLATFORM HEIGHT

17.60 m

BASKET SIZE

1400x700x1100 mm

CONTROL

Electrical

MAX. LATERAL REACH

12.50 m

BASKET LOAD

230 kg

BASKET ROTATION

90°+90°

TOTAL WEIGHT

3,5 ton

Cherry picker lift truck | High Performance

N

Easy Handling

N

Positioning on Slopes

N

Multi-zone Stabilization

N

Maximum Horizontal Outreach

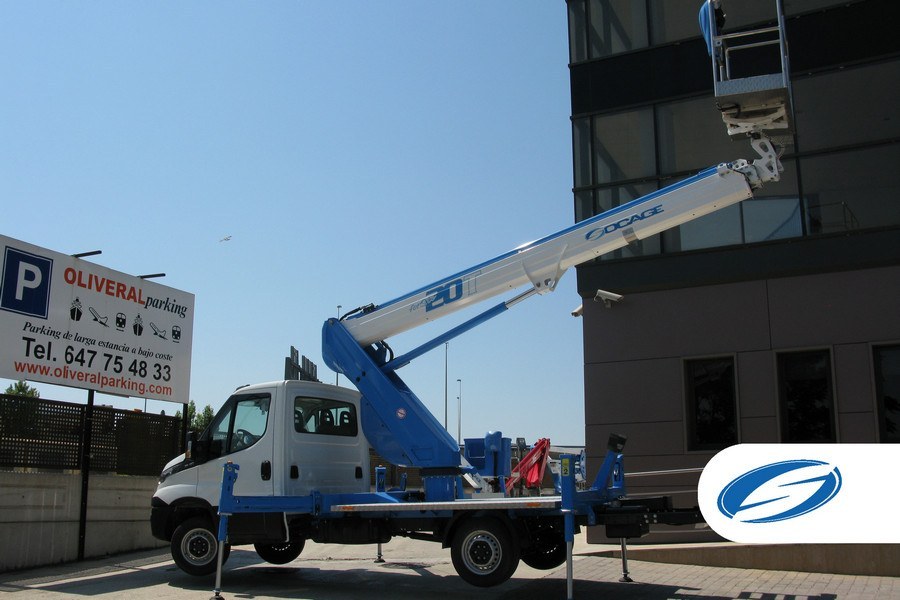

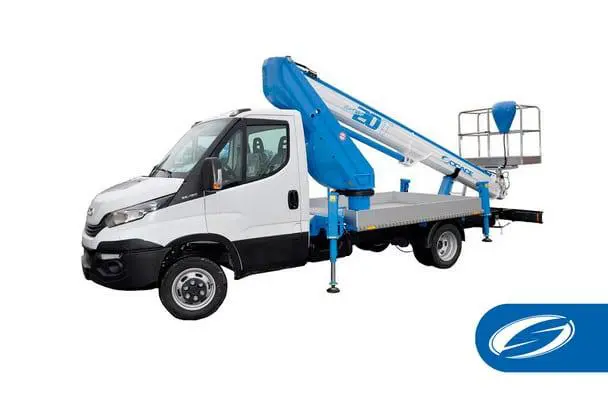

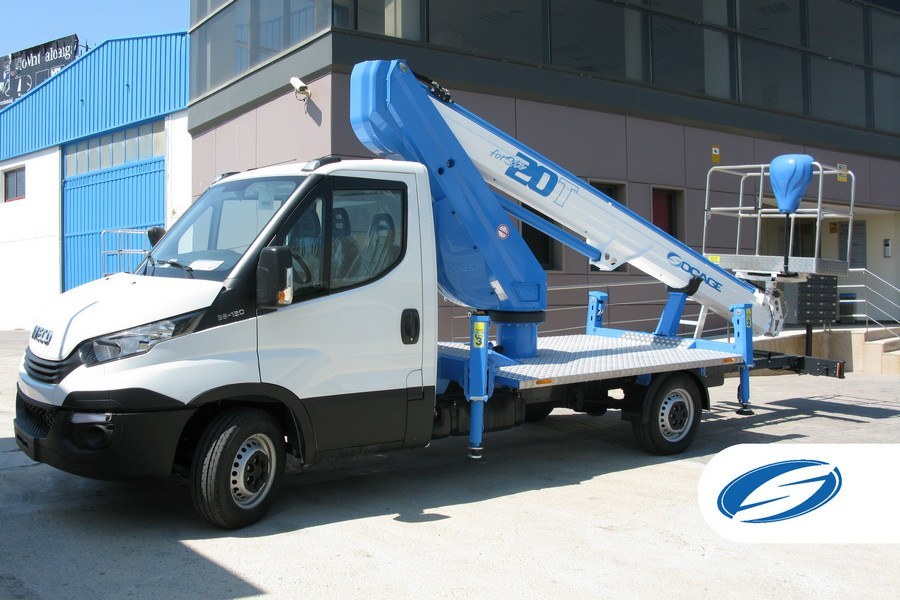

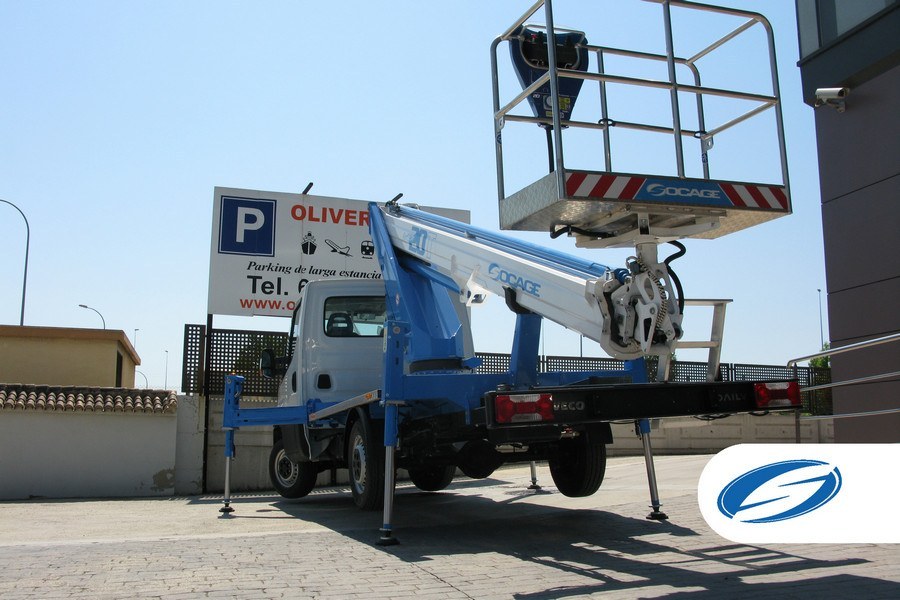

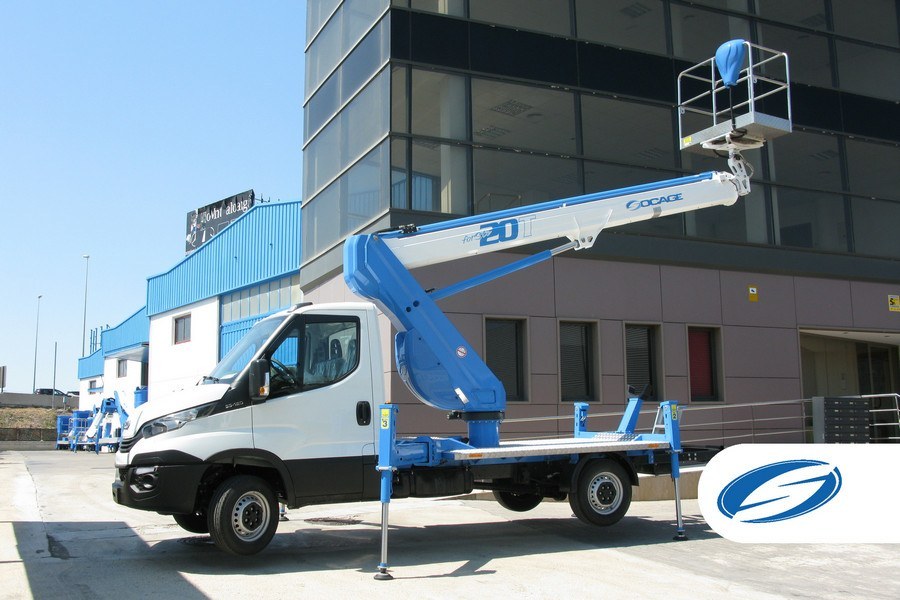

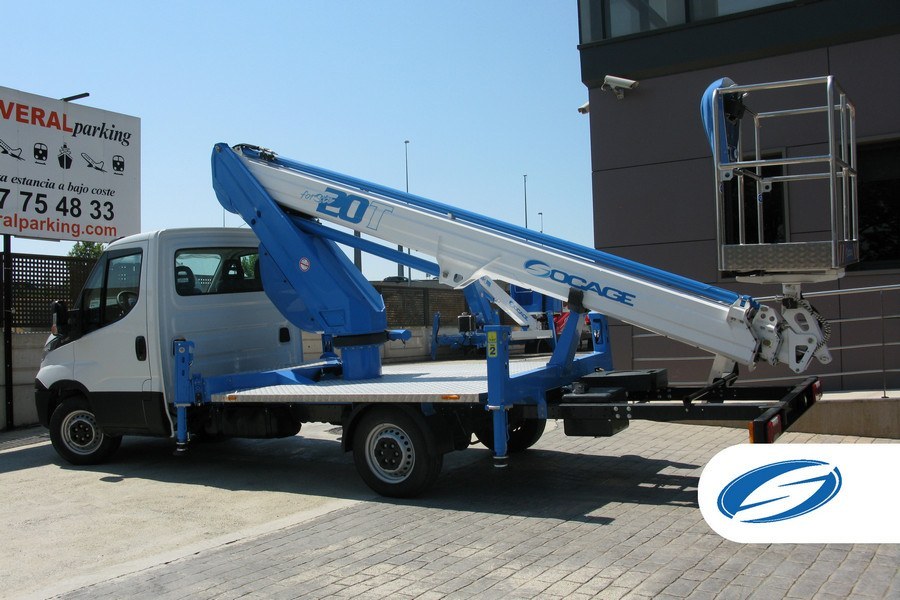

The SOCAGE forSte 20T SPEED cherry picker lift truck is a powerful unit, which is equipped as standard with automatic outrigger stabilization and mounted on a 3500 kg truck. It can reach a working height of 19.60 m and a horizontal outreach of 12.50 m, with a load capacity of 230 kg (2 operators + material).

The combination of quality, reliability, and productivity makes the Socage 20T SPEED the ideal model for the most demanding work at height.

The Socage SPEED HE+H function increases safety and facilitates correct outrigger deployment maneuvers. It is equipped as standard with SOCAGE’s automatic HE+H outrigger system, featuring vertical outriggers and automatic return to the transport position (HOME function). Additionally, it enables outrigger deployment from the basket as a standard feature.

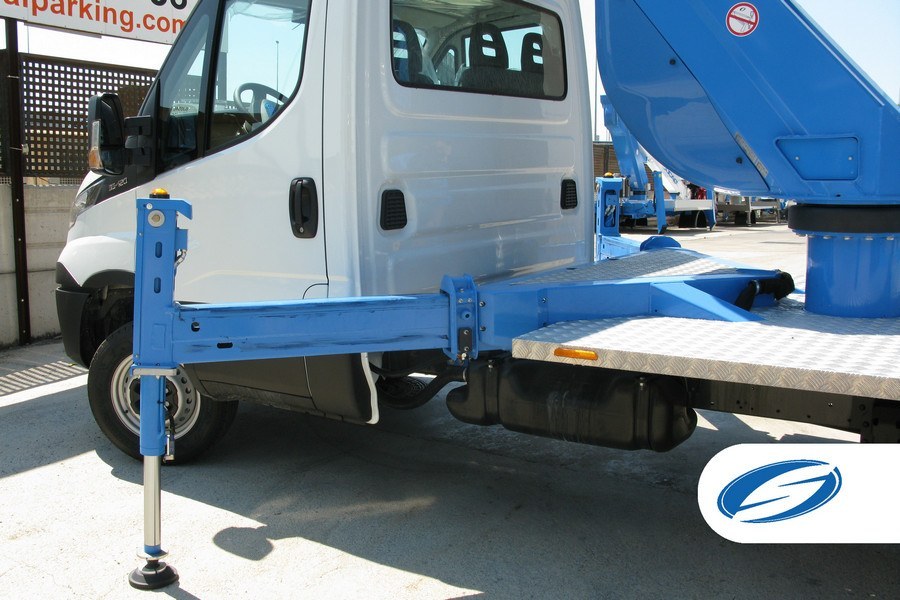

Automatic Outrigger System SPEED HE+H

The automatic SPEED HE+H outrigger system is a versatile system with several different working areas and horizontally extendable outriggers; it allows for various stabilization configurations to optimize space utilization in any situation.

The additional stroke of the Socage vertical outriggers provides a greater reserve for compensating for uneven ground and does not damage the surface.

Manufactured from advanced high-strength steel profiles (SPP) in conjunction with SOCAGE’s innovative frame and superstructure design. It guarantees high-quality, lightweight truck-mounted aerial platforms with robust construction and excellent performance, featuring vertical outriggers.

Multiple movements

It features a new hydraulic system which, in conjunction with the Socage control console, enables smoother and more proportional movements with better control for the operator, even during multiple simultaneous movements.

The forSte 20T SPEED leverages the advantages of modern components and technological developments to offer an easy-to-operate and reliable cherry picker lift truck, which enhances operator safety, information, and assistance.

Customization Options

The low weight of the assembly allows for extensive customization of the equipment to meet the customer’s needs.

Power supply options such as the lithium-hybrid system or electric pumps are available, as are options for improved operator assistance, such as the height selector or the SOCAGE CONNECT remote connection and assistance system. Additionally, numerous lighting, equipment, and safety options are available for the desired configuration.

Please do not hesitate to inquire about the price of your cherry picker lift truck.

STANDARD EQUIPMENT

AUTOMATIC STABILIZATION

This innovative standard solution for truck-mounted platforms offers great advantages and increases safety by facilitating the correct application of the stabilization maneuver.

With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.

The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
