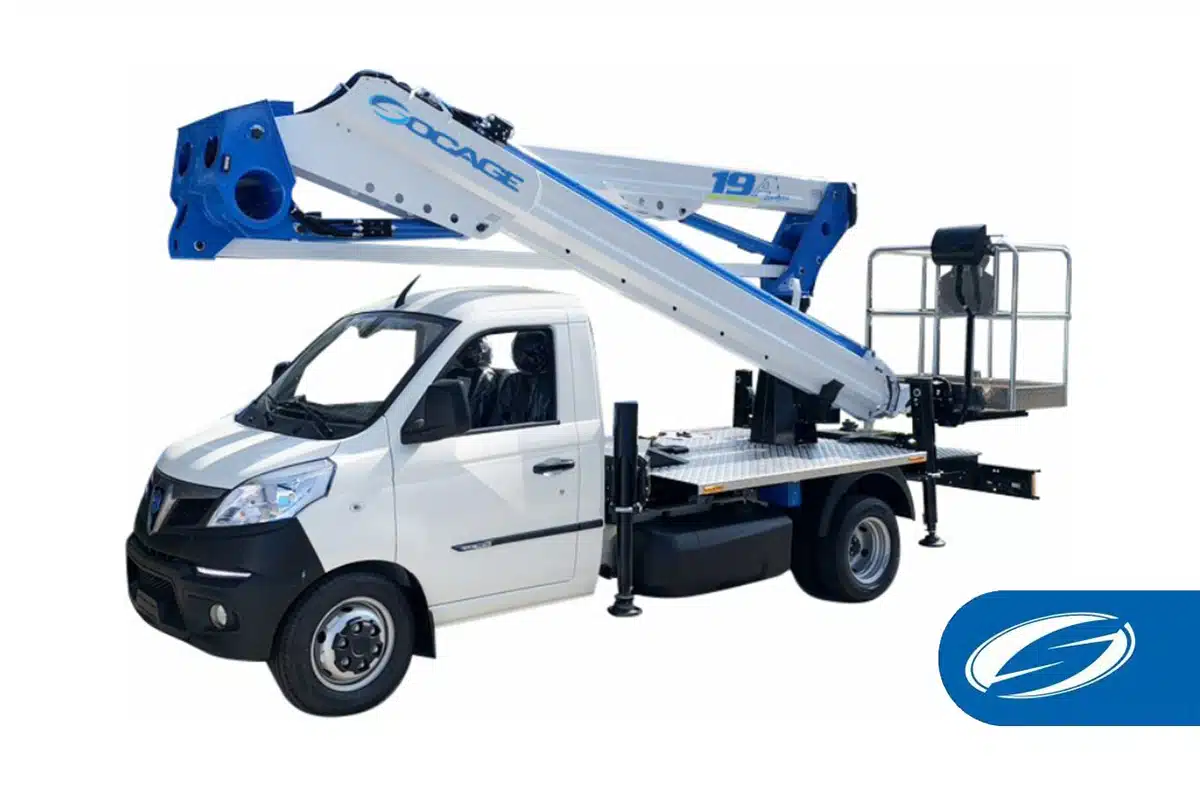

Cherry picker truck 19A SPEED

Compact truck-mounted platform 16A
MAX. WORKING HEIGHT
19.00 m
ROTATION RANGE
700º
SUPPORTS
H+H
PLATFORM HEIGHT
17.00 m
BASKET SIZE
1200x700x1100 mm
CONTROL
Electrical
MAX. LATERAL REACH
10.70 m
BASKET LOAD
230 kg
BASKET ROTATION
90º + 90º
TOTAL WEIGHT
2.8 ton
speed aerial platform

Cherry picker truck | Urban Compactness

N

High Mobility

N

Compact Dimensions

N

Simple and reliable

N

Urban Compactness

The SOCAGE forSte 19A SPEED is a truck-mounted aerial platform on a Piaggio chassis with an impressive working height of 18.70 meters and a lateral outreach of 10.70 meters. The work basket accommodates two operators and additional material, with a total load capacity in the basket of 230 kg. The basket can also be rotated 90º to the left and 90º to the right, facilitating precise access to roofs and elevated structures, as well as maneuvering during tree pruning work.

The forSte 19A SPEED cherry picker truck is characterized by its construction from modern, high-strength steel profiles (SPP), which guarantee a lightweight and high-quality aerial platform, as well as a robust structure for the platform. The result is a reliable and easy-to-operate aerial platform that offers excellent mobility and outstanding performance in urban environments.

An innovative feature of this aerial platform is the front basket attachment, which allows for precise approach to objects without the risk of collision. Thanks to its compact size, it is perfectly suited for work in hard-to-reach places and areas with limited maneuverability. It is therefore the ideal choice for projects in city centers and historical areas that are inaccessible to other vehicles.

Thanks to its low mounting weight on Piaggio trucks, the forSte 19A SPEED aerial platform can be easily adapted to the individual needs of the customer. This allows for exceptional customization, from power options such as lithium-ion hybrid systems or electric pumps, to additional operator assistance functions like the working height selector or the SOCAGE CONNECT connection and remote control system. Furthermore, it offers numerous lighting, equipment, and safety options to meet the specific requirements of every sector, from self-drive rental to maintenance, construction, and industrial work.

STANDARD EQUIPMENT

stabilizzazione

AUTOMATIC STABILIZATION

This innovative standard solution for truck-mounted platforms offers great advantages and increases safety by facilitating the correct application of the stabilization maneuver.

With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.

The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.

caracteristiche tecniche

TECHNICAL FEATURES

  • Hoses and cables installed inside the boom
  • SPEED Automatic closing of the aerial part
  • SPEED Automatic stabilization
  • A+A stabilization
  • Proportional electro-hydraulic controls with speed regulation of all movements
  • Electronic safe system CAN BUS
  • Engine start/stop control from basket
  • Possibility of simultaneous manoeuvers
  • 12V socket on the basket
  • Cataphoresis treatment with powder coating
  • 4 outrigger plates
  • Aerial part centering light on the basket
  • Automatic engine speed regulation
  • Front attachment of the basket
sicurezza

SAFETY DEVICES

  • Socage Security System: Unintentional maneuver consent button
  • Unintentional maneuvering protection bar
  • Controls protection of the basket
  • Moment limiting device with double security
  • Automatic basket leveling
  • Inclinometer
  • Flanged block valves
  • Emergency stop button
  • Emergency manual hand pump
  • Automatic PTO disengagement
  • Smart anti crash cab protection
  • Electrical hour counter
  • Maintenance light (Service)
  • SSW Socage Safe Workplace: safety light on the aerial part
  • Cab light closed outriggers
  • Safety bypass for operator rescue
  • Recovery System

PERSONALIZE YOUR AERIAL PLATFORM
