RAPTOR 24SE electric cherry picker

Compact truck-mounted platform 16A
MAX. WORKING HEIGHT
23.80
ROTATION RANGE
380º
SUPPORTS

H+H

PLATFORM HEIGHT
21.80 m
PLATFORM SIZE
140x70x110 cm
CONTROL
Electric - Hydraulic
MAX. LATERAL REACH
11.00 m
PLATFORM LOAD
230 kg
PLATFORM ROTATION
60° + 60°
TOTAL WEIGHT
2,65 ton
SUPPORT SURFACE
3000 x 3150 / 3150 x 3450 mm
HOOK
230
BATTERY

44V – 10.12kWh – 228Ah

BATTERY

44V – 10.12kWh – 228Ah

Electric cherry picker: Simplicity Within Reach

N

Improved strength and stability

N

Simple and reliable

N

100% electric

N

Adjustable track chassis

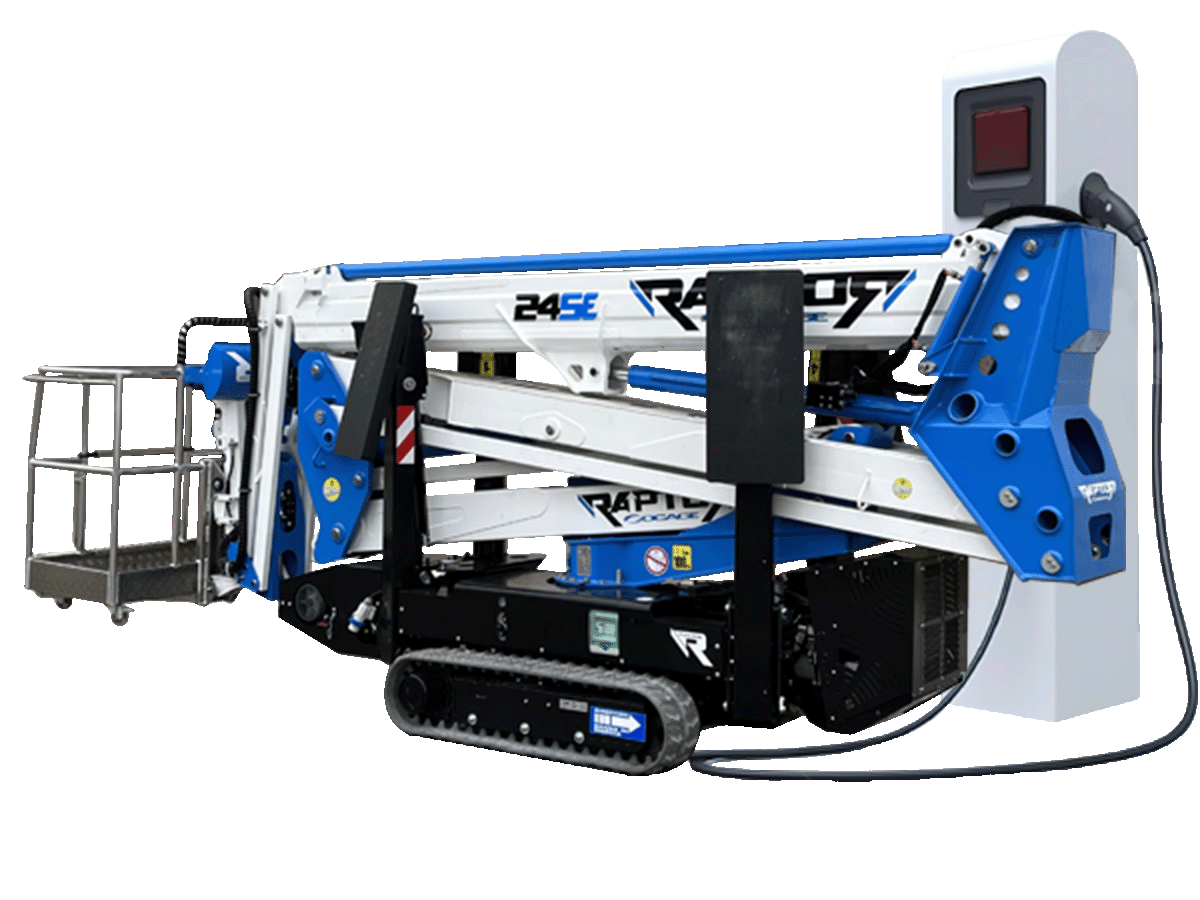

The Raptor 24SE electric cherry picker is the evolution of the 24S model, enhanced with sustainable technological solutions, and thus provides exceptional performance with low noise and zero emissions.

It reaches a working height of 21.80 meters, with a lateral outreach of 11 meters and a basket capacity of 230 kg.

The Raptor 21SE is fully electric cherry picker and equipped with a lithium-ion battery. It is ideal for indoor use or in areas with strict environmental regulations, such as hospitals, airports, or shopping centers.

With a full battery charge, the Raptor 24SE can complete at least 15 full work cycles, including stabilization, full extension and retraction of the platform, destabilization, and return to drive mode.

The fast charging function allows for a 60% charge in just 4 hours and a full charge in 8 hours. Furthermore, it is possible to operate even during the charging process.

STANDARD EQUIPMENT

caracteristiche tecniche

TECHNICAL FEATURES

Automatic closing
• Automatic stabilization
• Quick release of the basket
• Lifting Hook Support 230kg
• SSW: LED safety lights
• LED travel light
• Booms realized in profiles advanced high tensile steel
• Jib lifting during travel
• Cataphoresis treatment
• Hydraulically extendable tracks
• White non-marking tracks
• Lifting hook on stabilisers
• Extra-large outrigger plates
• Pre-installation for Raptor Stab. Optional
• Socage Connect
• Integrated charger + extra battery for radio control
• Multifunction hydraulic distributor
• Manual hand pump
• 230V electric socket in the basket
• Multifunction radio control
• Auxiliary electric pump 230V-50Hz
• 10kW 48V Lithium battery pack
• Trailer transport + Raptor Trailer optional
