ForSte 54TJJ large cherry picker
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Large cherry picker | MAXIMUM PERFORMANCE
Robustness with high mobility
600 kg maximum basket capacity
Maximum reach
Multi-zone support system

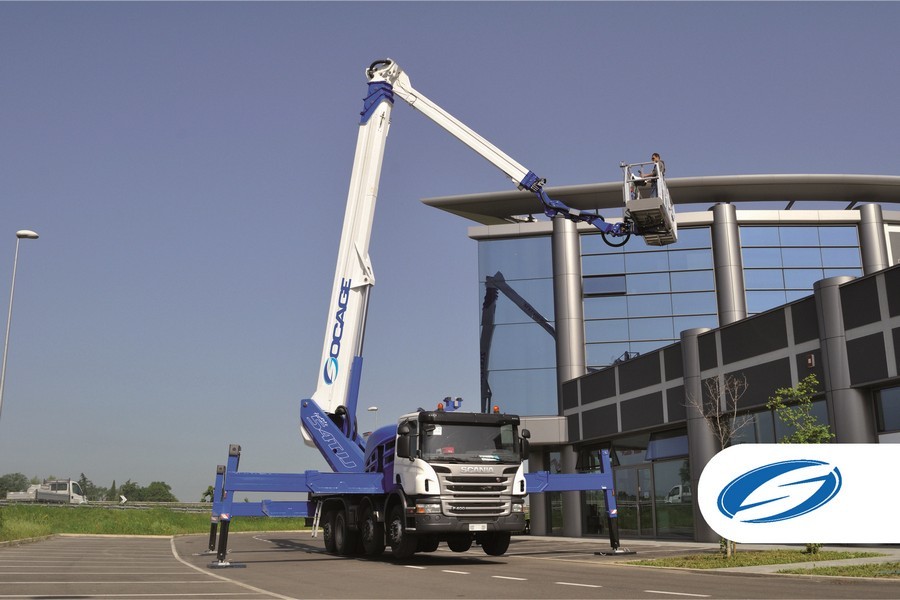

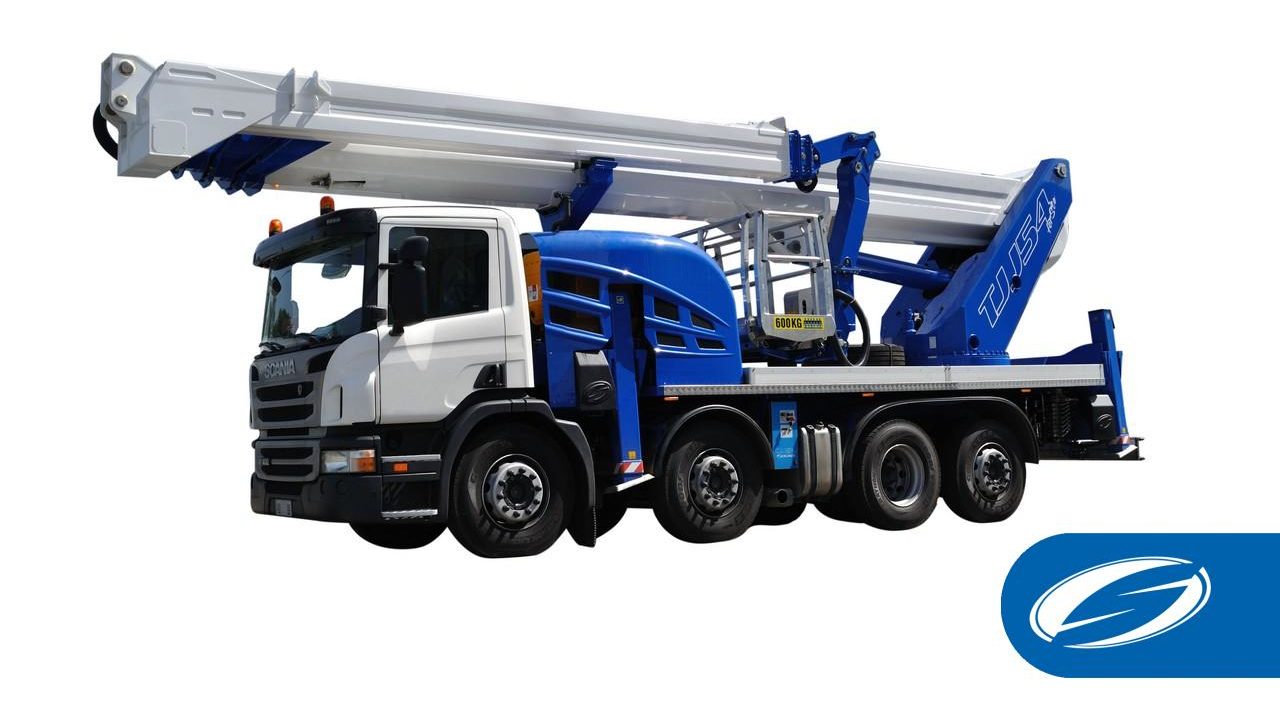

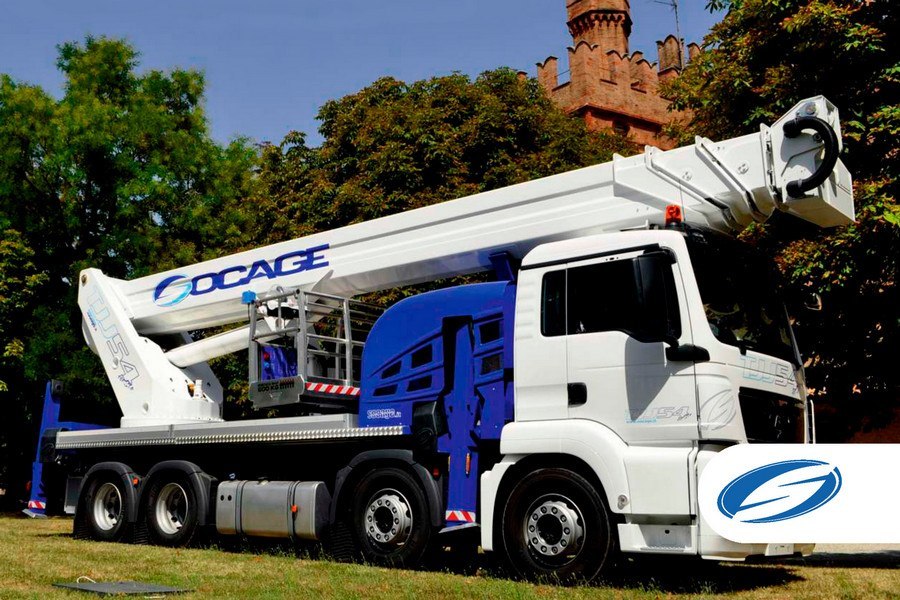

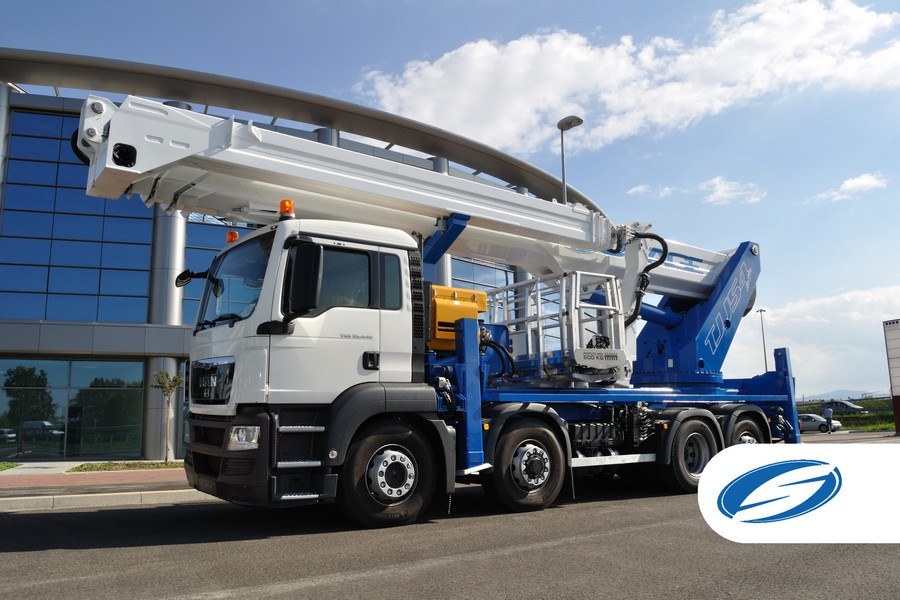

The ForSte 54TJJ truck-mounted aerial platform is a double telescopic large cherry picker unit with a movable jib arm for vehicle installations starting from 26 t.
The secondary boom with movable jib arm allows working maneuvers that would not be possible with a simple jib arm.
The maximum working height is 54.30 m and the maximum lateral reach is 40 m for superstructures from 32 t. The basket load allows up to 600 kg (6 operators + equipment).
A 7″ LCD display allows the operator to directly control various information such as: 2D work area, status of the load moment limiter, support status, etc.
The 54TJJ large cherry picker is equipped as standard with a multi-zone support system. The operator can choose between different positioning options depending on the installation space available for the vehicle.
The rear support traverses of the 54TJJ with 2-fold hydraulic extension increase the support area and thus the maximum performance of the device.
| High productivity
The emergency operation by radio remote control allows the operator to select the best possible viewing position. The generous 700° swivel range of the aerial platform considerably increases productivity and avoids downtimes for repositioning the aerial platform. The 54TJJ aerial platform can be equipped with a hydraulic winch mounted on the boom with a capacity of 900/1500 kg, and can thus be used as a crane after removing the aluminum work basket.
The aluminum basket in dimensions of 2300 x 900 x 1100 mm can be hydraulically enlarged to 3600 mm. The basket can be rotated by 360° (manually 180° left + 180° right), thus enabling high maneuverability even in underfloor work or behind roof edges.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- SOCAGE convertible basket possibility (Eternit)
- 2nd Jib 180 ° manual rotation
- Automatic stabilization
- Partially stabilized working areas
- Automatic closing
- Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
- Walkie Talkie
- Main and auxiliary motor start / stop control from the basket
- Multifunction radio control for ground emergency control of the aerial part and stabilization
- Electric hour counter
- Automatic PTO disengagement
- N ° 2 fixed roto-lamp on the vehicle cabin
- 230V / 400V electrical socket
- Heat exchanger on the hydraulic system
- 2 folding sides, 2 fixed (h 150 mm)
- 4 ground support plates (700 x 700 x 50 mm)
- Anti-corrosion treatment on unpainted components
Optional
– Winch 1500kg
SAFETY DEVICES
- SSW Socage Safe Workplace: safety light on the aerial parts
- Emergency and stop button
- Cross-check of open stabilizers
- Anemometer
- Load limiter in the basket
- Moment limiter with double safety and control of correct operation
- Multi axial device for visual control of frame stabilization
- Emergency descent with electric pump (in the absence of the auxiliary motor)
- Rotation brake of the turret with automatic insertion
- Hydraulic system with differentiated filtering with high efficiency filters both on the delivery lines and on the return lines
- Multifunction radio control for emergency control
- Automatism for rotation lock with extension of the stabilizers on one side only
- Chassis flatness sensor
- Flanged block valves
- Working lights under the basket
- Electrical hours-counter
- Working lights on the aerial part
