Truck-mounted Cherry Picker ForSte 37dj SPEED

Description

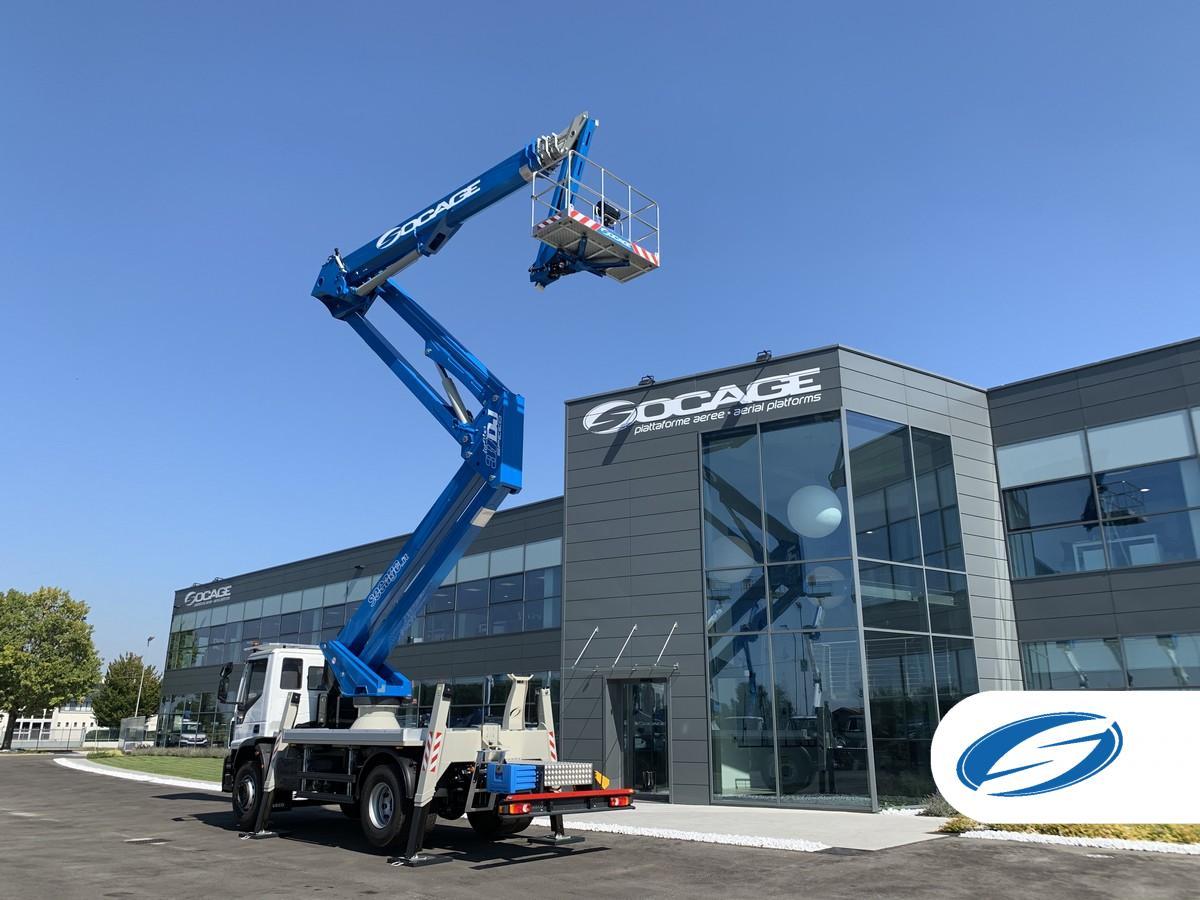

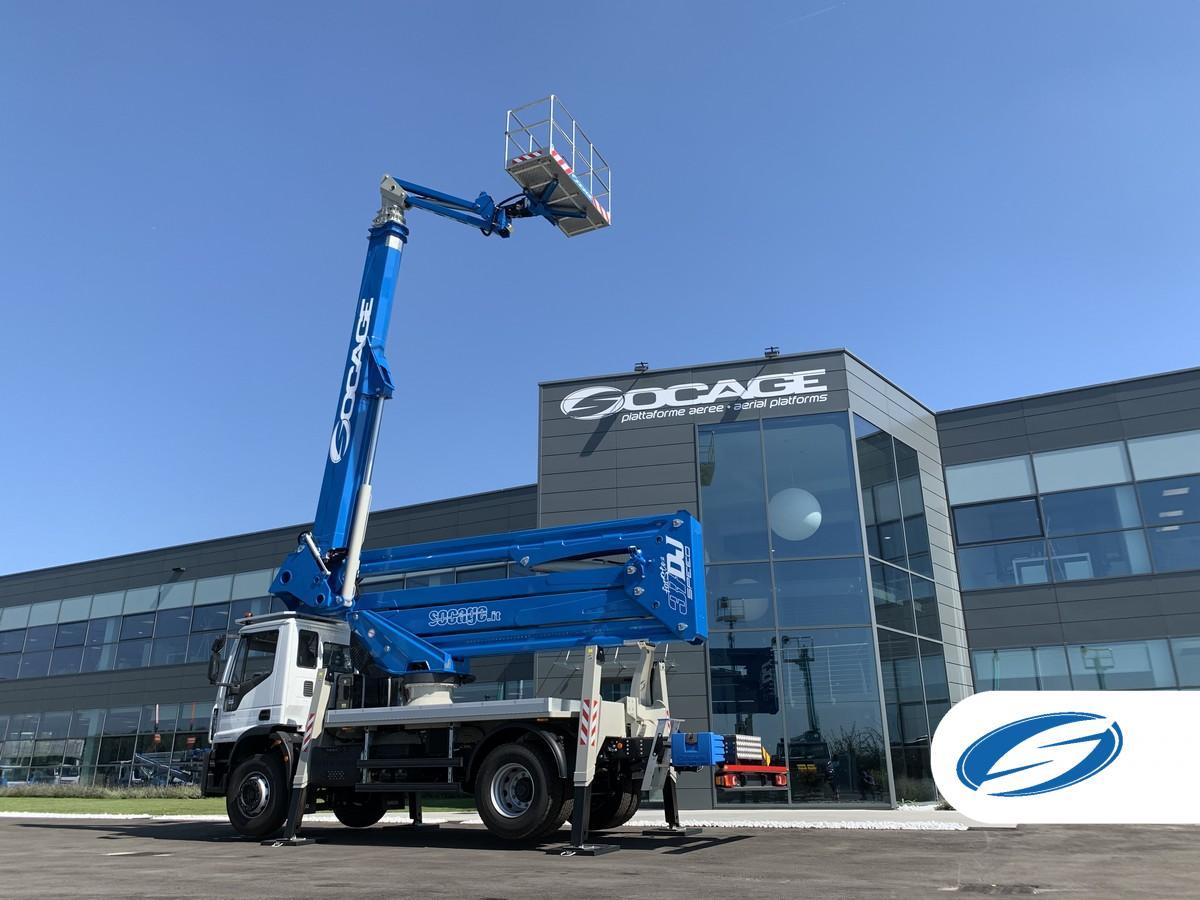

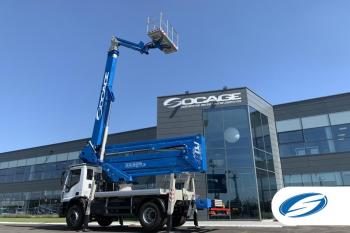

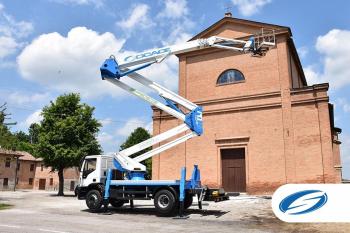

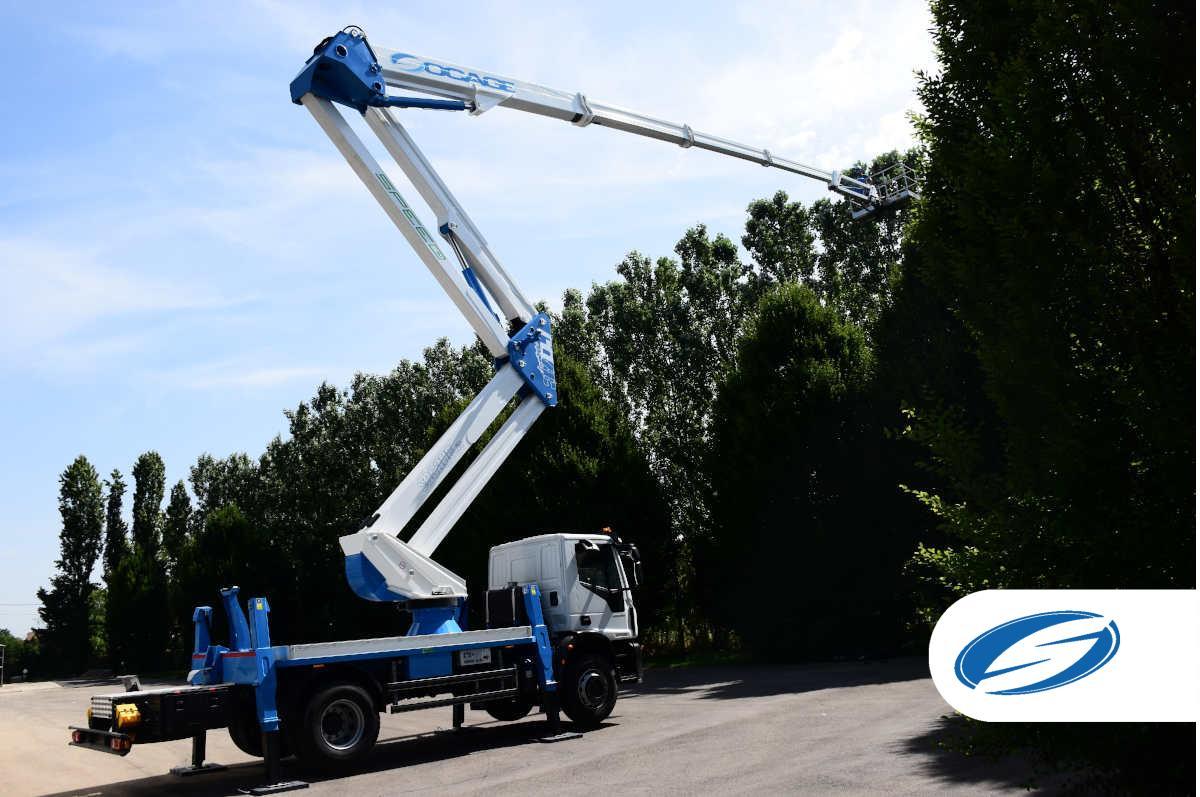

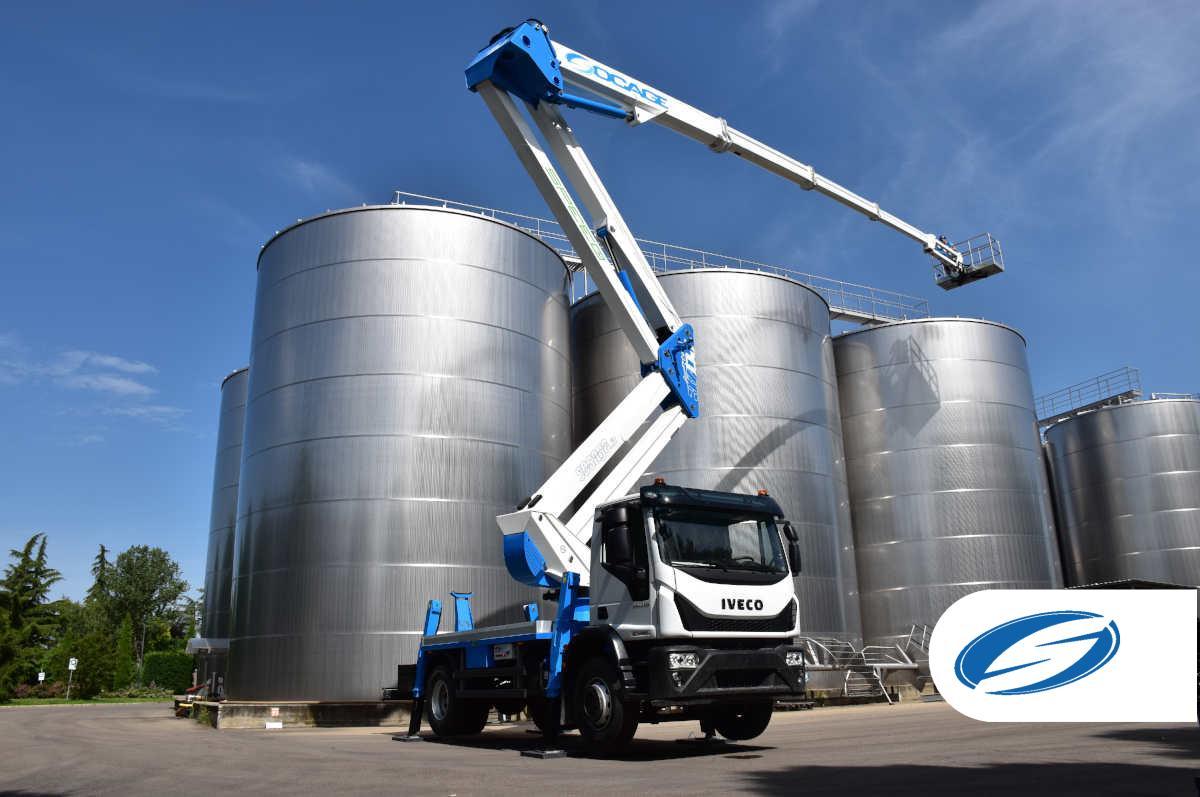

The ForSte 37DJ SPEED truck-mounted cherry picker is a double articulated aerial platform with a hydraulic jib, which can be mounted on 2-axle trucks from 18 t.

It can reach a working height of 37.3 m and a lateral outreach of 21 m, with a maximum basket capacity of 280 kg (3 operators plus tools).

The SOCAGE forSte 37DJ SPEED is the SPEED version of the forSte 37DJ. It is a new and innovative solution for urban areas and an alternative to self-propelled aerial platforms.

It is primarily characterized by its revolutionary stabilization system for truck-mounted aerial platforms weighing more than 3500 kg. It is equipped as standard with automatic stabilization, which, together with the fixed vertical SOCAGE H+H stabilization, enables a very user-friendly, fast, and safe outrigger deployment maneuver.

Maximum Performance

Thanks to the SPEED functionality, the aerial platform can operate wherever the vehicle has access. It allows for a single stabilization option with maximum performance and minimal space requirements, without extending beyond the vehicle’s outline.

The vertical outriggers have an extra-long stroke, which provides greater capacity for overcoming uneven terrain.

For SOCAGE, stabilization is the most important maneuver, both in terms of safety and productivity. A well-stabilized aerial platform is always a safe aerial platform, thereby preventing potential accidents. It is the most frequently repeated maneuver during working hours and often difficult, so simple stabilization reduces the time spent maneuvering and increases equipment productivity.

The operation of the SOCAGE 37 DJ SPEED truck-mounted aerial platform is similar to that of conventional truck-mounted aerial platforms weighing less than 3500 kg. In addition to simple stabilization, driverless rental is also possible, making the platform an excellent alternative to larger self-propelled aerial platforms, especially for short-term rentals, urban work, or industrial applications.

High Mobility

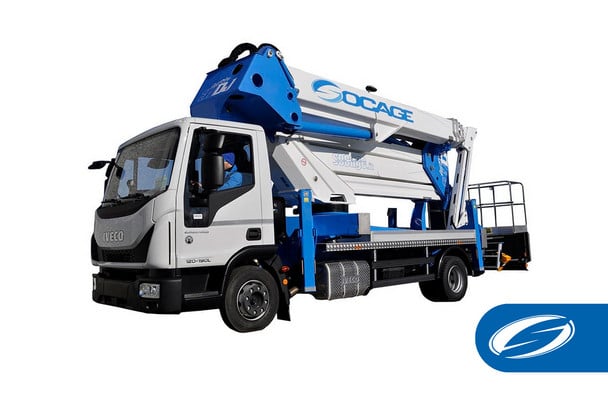

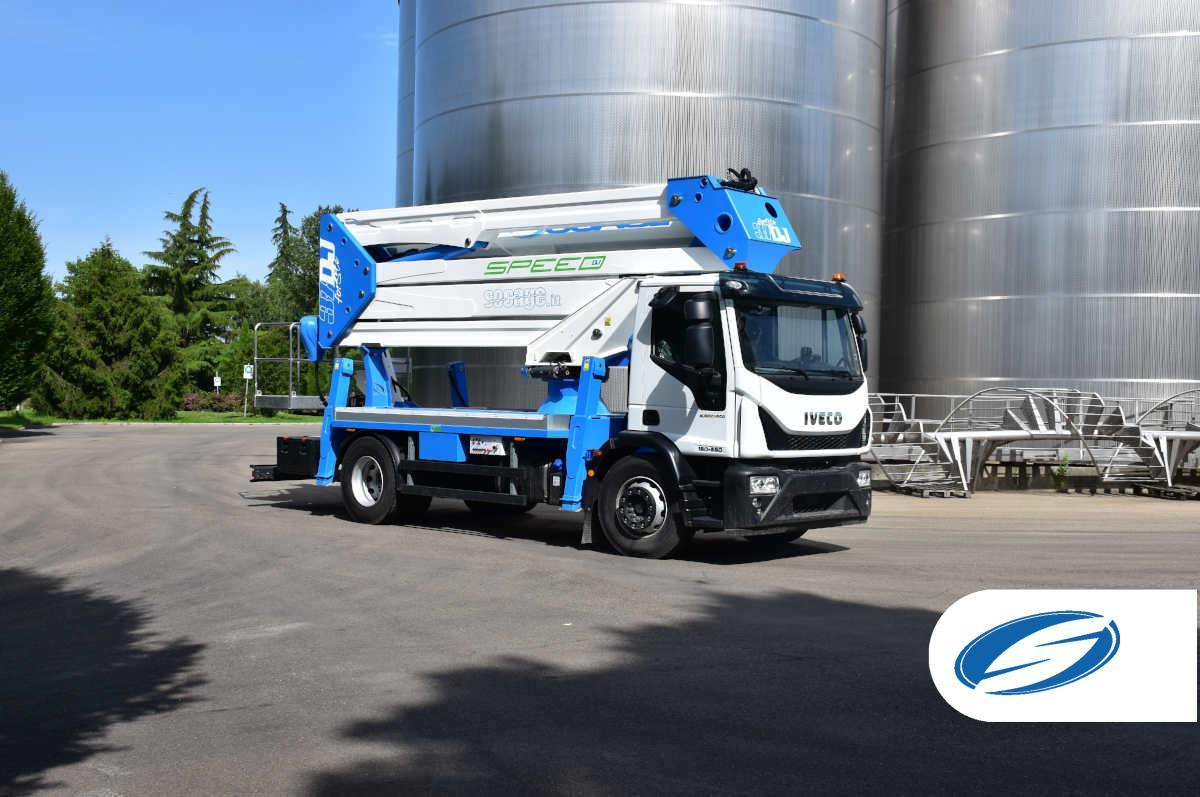

The compact dimensions of the forSte 37DJ aerial platform ensure high mobility and diverse applications in urban and industrial areas, allowing access to locations where other aerial platforms of similar performance cannot operate or have difficulty operating.

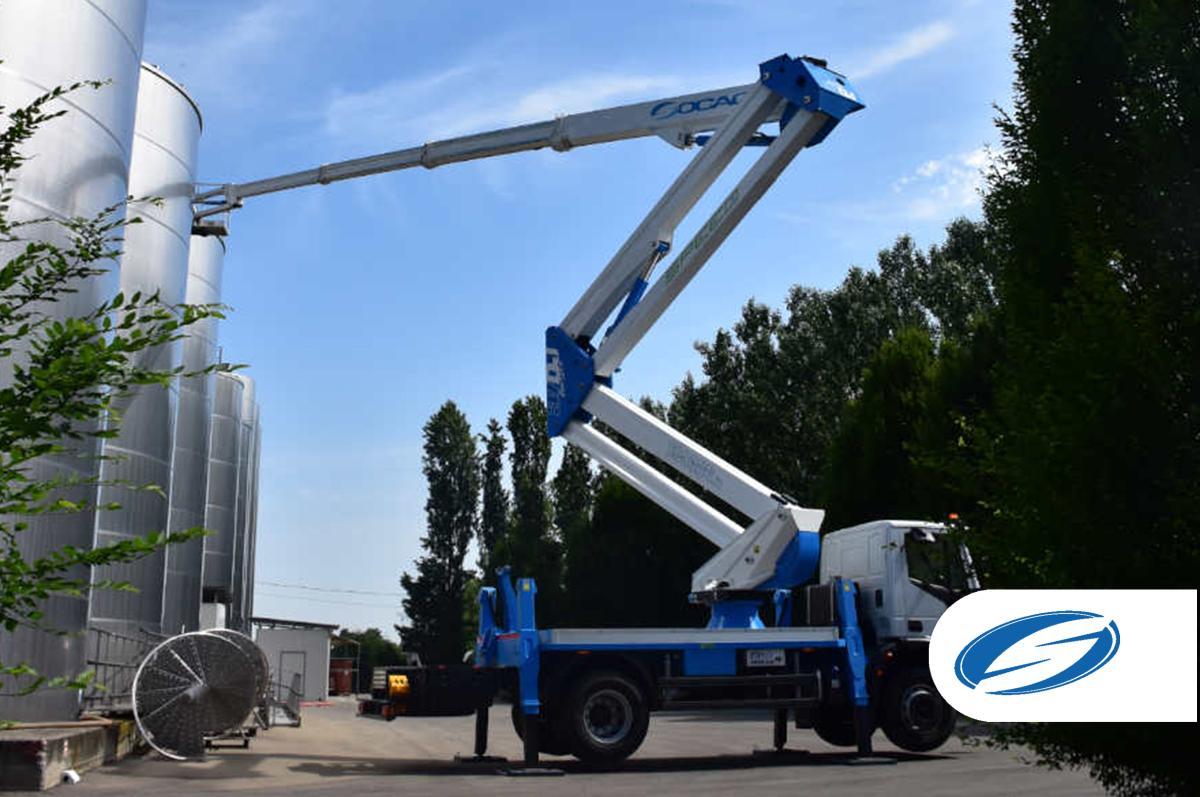

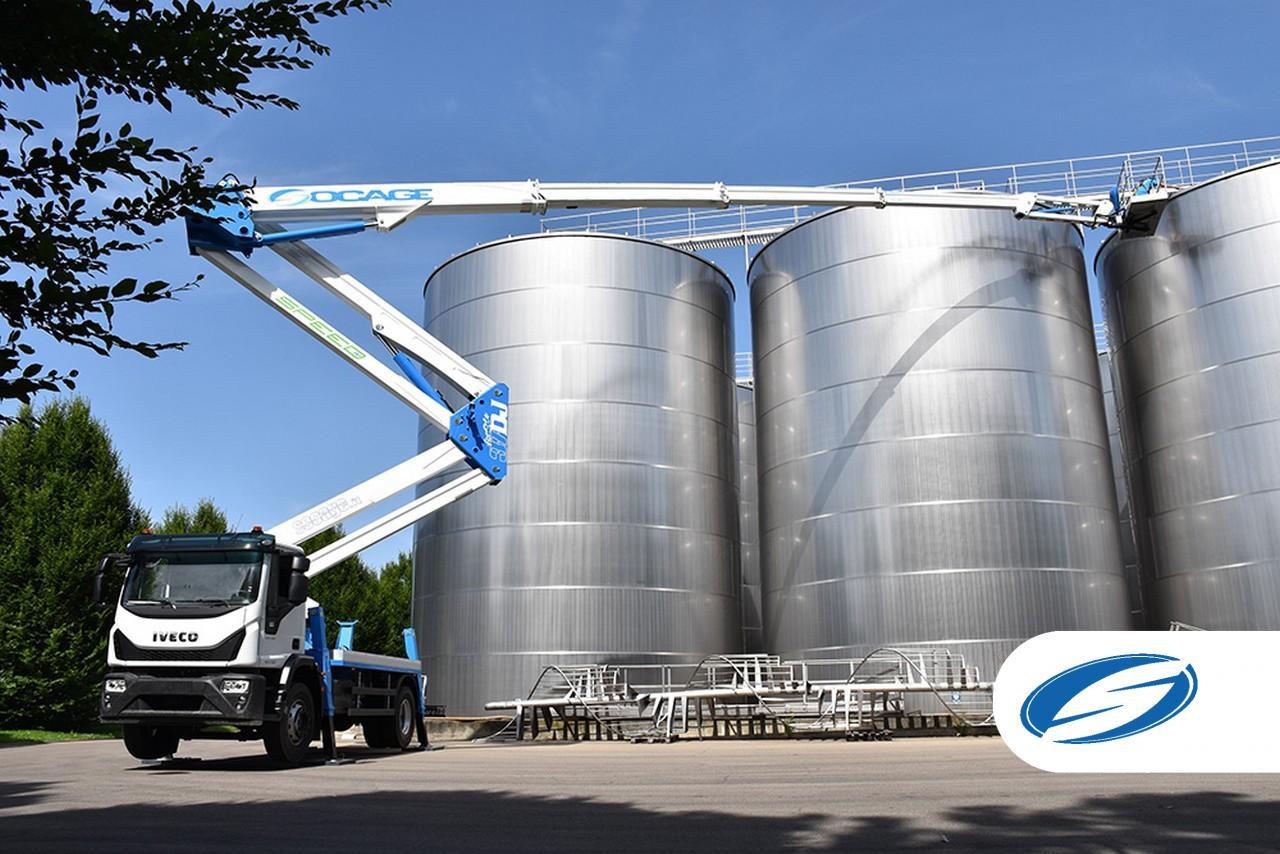

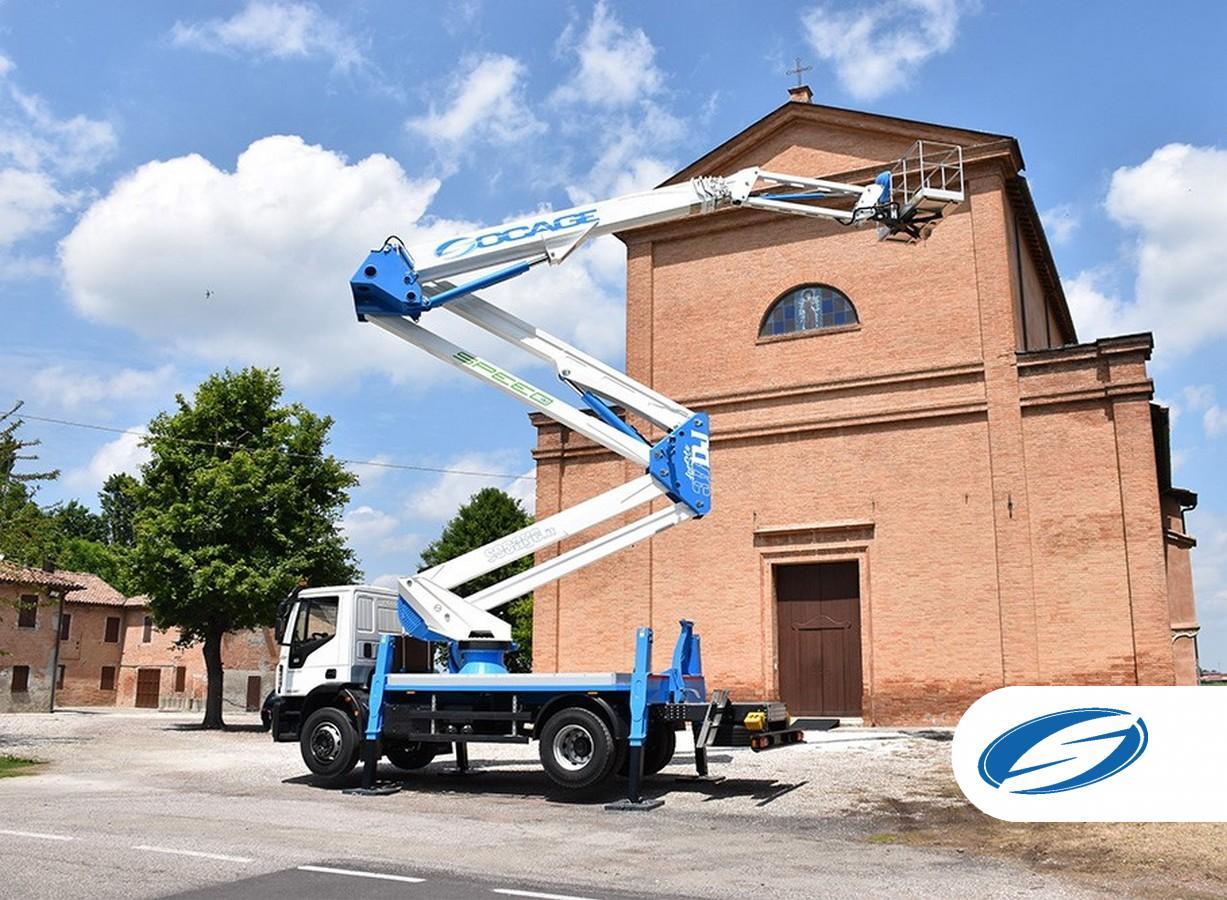

The articulated boom, together with the robust structural design, forms a very stable and versatile aerial platform element that can overcome obstacles at height better than other telescopic booms of similar height.
