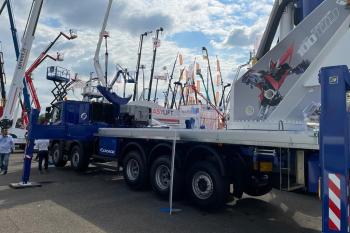

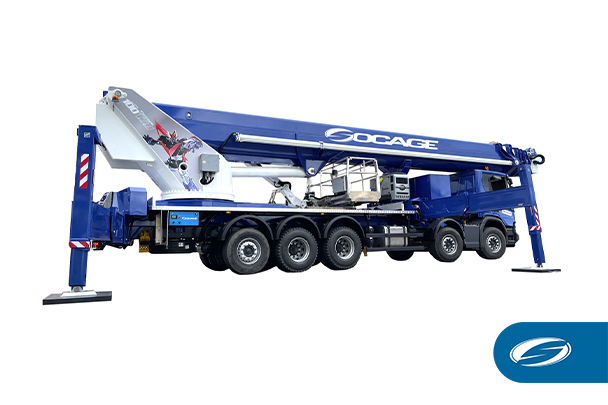

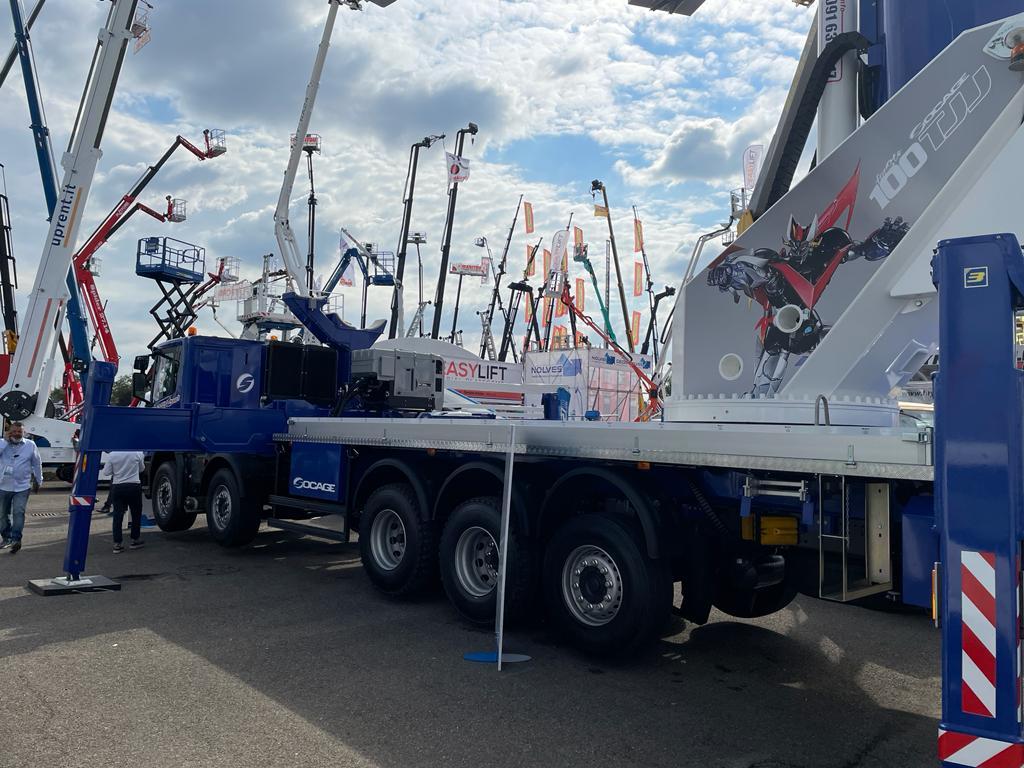

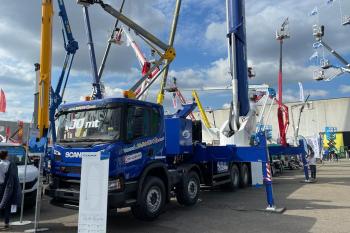

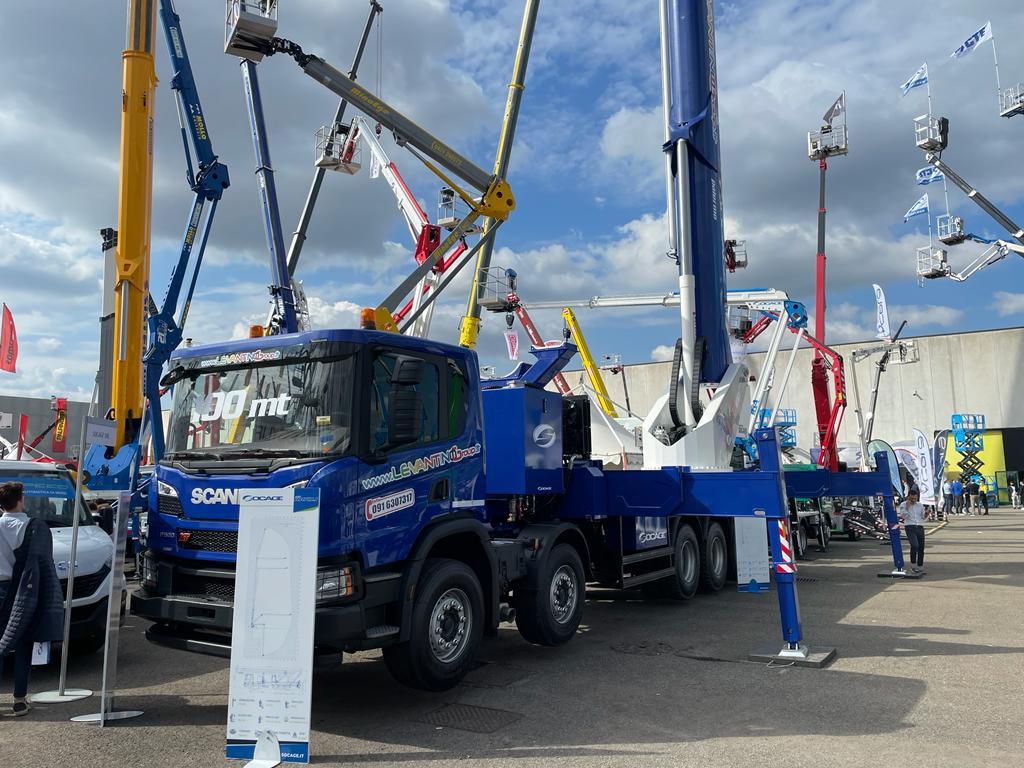

Truck-mounted Aerial Platform 100m forSte 100tjj

MAX. WORKING HEIGHT

99.50 m

ROTATION RANGE

700°º

SUPPORTS

H+H

PLATFORM HEIGHT

97.50 m

BASKET SIZE

2300/3600x900x1100 mm

CONTROL

Electric

MAX. LATERAL REACH

40.50 m

BASKET LOAD

600 kg

BASKET ROTATION

360°

TOTAL WEIGHT

53 ton

Truck-mounted aerial platform | High maneuverability and long reach

N

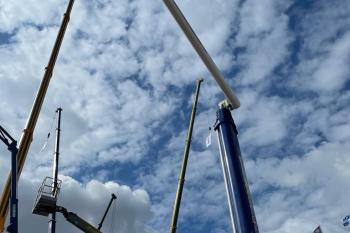

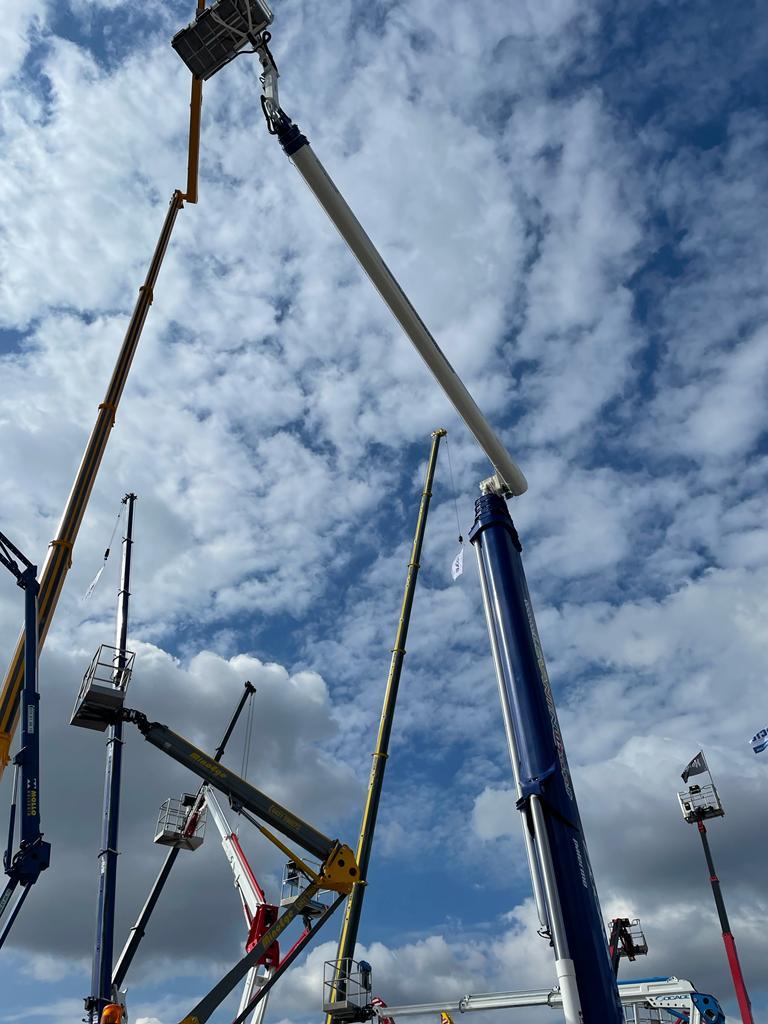

Double telescopic

N

Large working area

N

Multi-zone support system

N

Optional with winch

The truck-mounted aerial platform 100m forSte 100TJJ is a double telescopic articulated jib, for truck mounts with a permissible total weight from 52 t. The secondary jib with articulated jib allows working maneuvers that would not be possible with a simple jib.

The top model of the Socage series is finally a reality. After a lot of hard work and dedication, Socage is now able to reach new heights and take on challenges up to a height of 100 meters.

The forSte 100TJJ can reach a maximum working height of 99.50 m and a lateral reach of 43 m with 350 kg, with a maximum load capacity of 600 kg (6 operators + equipment).

A 7″ LCD display allows the operator to directly control various information such as: 2D work area, status of the load moment limiter, support status, etc.

The forSte100TJJ aerial platform is equipped as standard with a multi-zone support system. The operator can choose between different positioning options, depending on the installation space available for the vehicle. The rear support traverses of the 100TJJ with 2-fold hydraulic extension increase the support area and thus the maximum performance of the unit.

| High versatility

The emergency operation by radio remote control allows the operator to select the best possible viewing position. The generous 700° swivel range of the aerial platform considerably increases productivity and avoids downtimes for repositioning the aerial platform.

The basket rotation is 90°+90° with the possibility to manually rotate the second boom to work on the opposite side and cover a working area of 360°, which allows great flexibility in positioning for work.

The aluminum basket in dimensions of 2300 x 900 x 1100 mm can be hydraulically extended to 3600 mm in order to increase the working area.

STANDARD EQUIPMENT

AUTOMATIC STABILIZATION

This innovative standard solution for truck-mounted platforms offers great advantages and increases safety by facilitating the correct application of the stabilization maneuver.

With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.

The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.

TECHNICAL FEATURES

Extendable aluminum basket with dimensions of 2300/3600 x900x1100 mm
Optional SOCAGE special basket (Eternit)
Basket rotation 90°+90
700° turret rotation
Jib 180° manually rotatable
Winch option on the removable JIB
Automatic support system
Variable support and working areas
Automatic home function
Basket control station with Socage design console with joystick and 7″ LCD display with real-time information
Intercom system with headset for communication between basket and ground
Start/stop control of main and auxiliary motor from the basket
Multifunction radio control for ground emergency control and support
Electric operating hours counter
Automatic auxiliary drive
2 permanently installed rotating beacons on the vehicle cab
230V/400V socket
Hydraulic system with oil cooler
2 folding, 2 fixed side panels (H 150 mm)
4 floor support plates (700 x 700 x 50 mm)
Corrosion protection treatment of non-painted parts
Painting of the aerial platform: white RAL 9016
Painting of frame and hydraulic cylinders: blue RAL 5015
LED light under the basket
Work lights on the basket
Work lights behind the driver’s cab
LED rotating beacon on the cab roof

SAFETY DEVICES

Emergency stop
Counter-check of the opened supports
Load limiter in the basket
Anemometer
Load moment limitation with double safety and function control
Leveling eye on the undercarriage
Emergency lowering via electric pump (without auxiliary motor option)
Swivel brake of the turret rotation with automatic activation
Hydraulic system with differentiated filtering and high-performance filters in supply and return lines
Emergency control via multifunction radio control
Automatic swivel lock in the support area
Inclination sensor on the frame
Flanged holding valves
