Truck-mounted Telescopic Aerial Platform ForSte 35tj
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Truck-mounted telescopic aerial platform ForSte 35TJ
400kg maximum basket load
Robustness with high mobility
Multi-zone support system
Compact dimensions

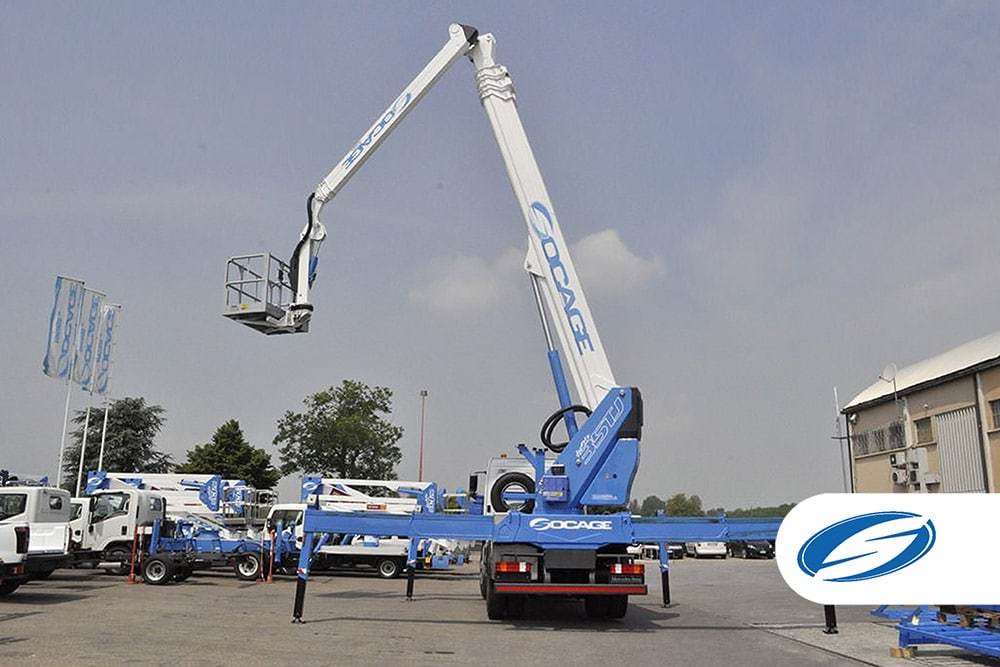

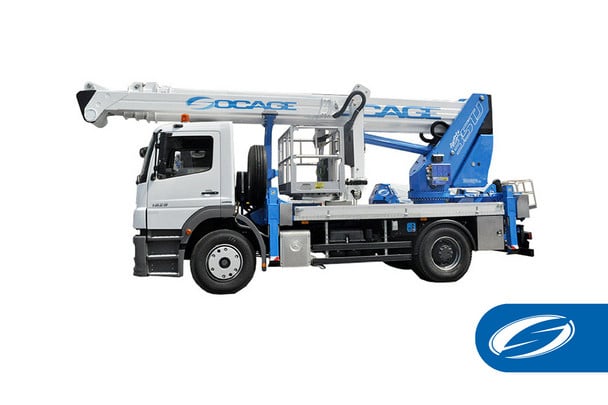

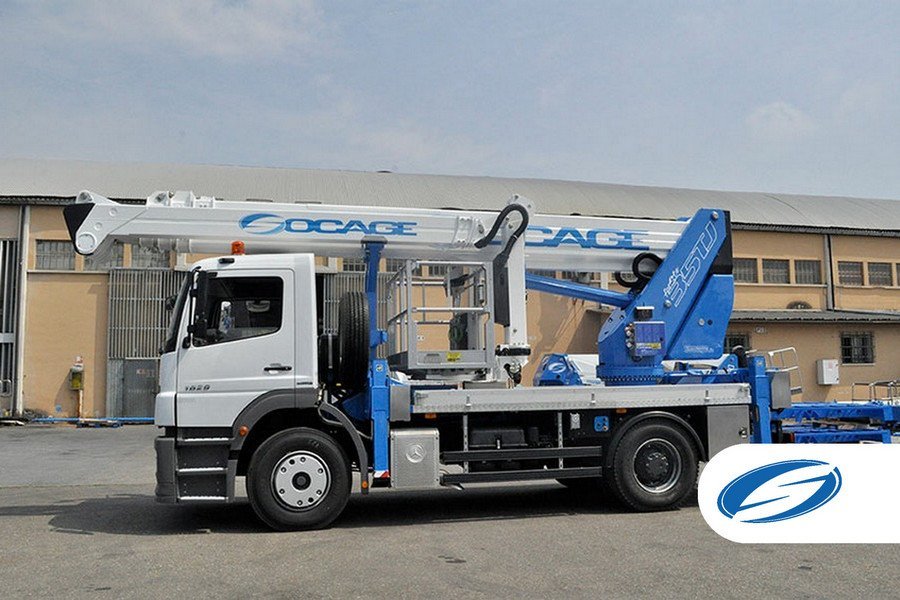

The truck-mounted telescopic aerial platform ForSte 35TJ with telescopic boom and movable jib is installed on 18-tonne vehicles.
The platform reaches a working height of approx. 35 m and a maximum lateral reach of up to 30 m, and a load capacity of up to 400 kg (4 operators + equipment). The structure is characterized by extremely compact dimensions, making it an excellent solution for all work in difficult-to-access industrial and urban areas.
The forSte 35TJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and desired performance. The electronic control system of the truck-mounted aerial platform automatically calculates the safe working area according to the opening position of the four supports.
| Robustness with great mobility
The emergency control of the aerial platform, as well as the support, is carried out by means of a radio remote control and enables the operator to select the best viewing position during set-up.
After removal of the aluminum work basket, the forSte 35TJ aerial work platform can be equipped with a hydraulic winch mounted on the jib with a load capacity of 500/1000 kg.
The 700° swivel range of the aerial platform increases productivity, as set-up times or repositioning are eliminated.
The dimensions of the aluminum basket are 2300 x 900 x h 1100 mm, and can be hydraulically extended to 3300 mm.
The 360° basket rotation (180° right/left) results in great flexibility when positioning the aerial platform.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Extendable aluminum basket with dimensions 2300/3300 x900x1100 mm
- Basket rotation 360°
- Turret rotation 700°
- Winch mounting possible
- Automatic support system
- Variable support and working areas
- Automatic home function
- Basket control station with Socage design console with joystick and 7" LCD display with real-time information
- Intercom system with headset for communication between basket and ground
- Start/stop of main and auxiliary engine from the basket
- Multifunction radio control for ground emergency control and support
- Electric operating hours counter
- Automatic auxiliary drive
- 2 permanently installed rotating beacons on the vehicle cab
- 230V/400V socket
- Hydraulic system with oil cooler
- 2 folding, 2 fixed side panels (H 150 mm)
- 4 floor support plates (700 x 700 x 50 mm)
- Corrosion protection treatment of non-painted parts
- Painting of the aerial platform: white RAL 9016
- Painting of frame and hydraulic cylinders: blue RAL 5015
- LED light under the basket
- Work lights on the basket
- Work lights behind the driver's cab
- LED rotating beacon on the cab roof
SAFETY DEVICES
- Emergency stop
- Counter-check of the opened supports
- Load limiter in the basket
- Load moment limitation with double safety and function control
- Leveling eye on the undercarriage
- Emergency lowering by means of electric pump (without auxiliary motor option)
- Swivel brake of the turret rotation with automatic activation
- Hydraulic system with differentiated filtering and high-performance filters in supply and return lines
- Emergency control via multifunction radio control
- Automatic swivel lock in the permitted support area
- Tilt sensor on the undercarriage
- Flanged holding valves
