Truck-mounted Aerial Platform forSte 47tjj
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Truck-mounted aerial platform | ROBUSTNESS WITH HIGH MOBILITY
600 kg maximum basket load
Dual telescopic boom with high versatility
Extensive working range
Multi-zone support system

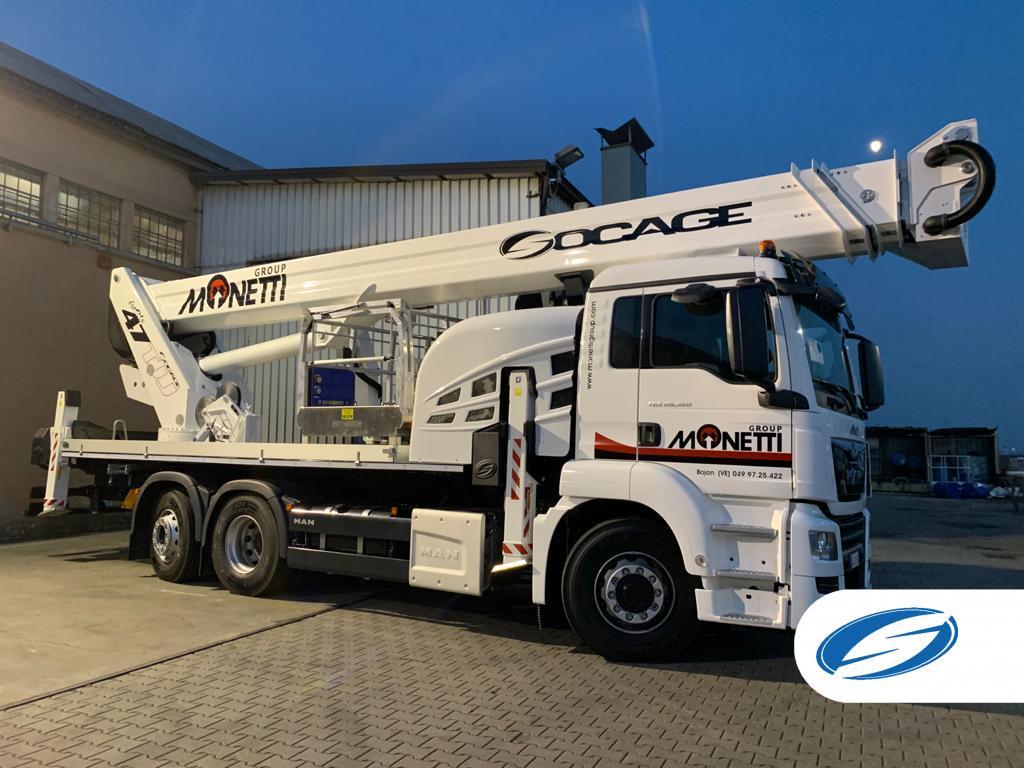

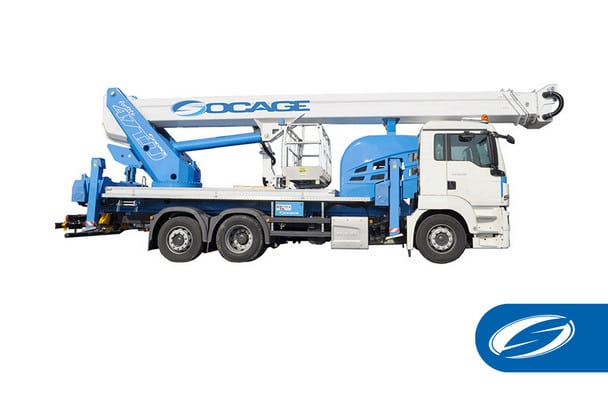

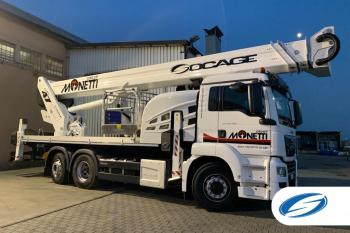

The Socage forSte 47TJJ is a truck-mounted aerial platform with an articulated jib for vehicle chassis from 18 tons.
The secondary boom with articulated jib allows for working maneuvers that would not be possible with a simple jib.

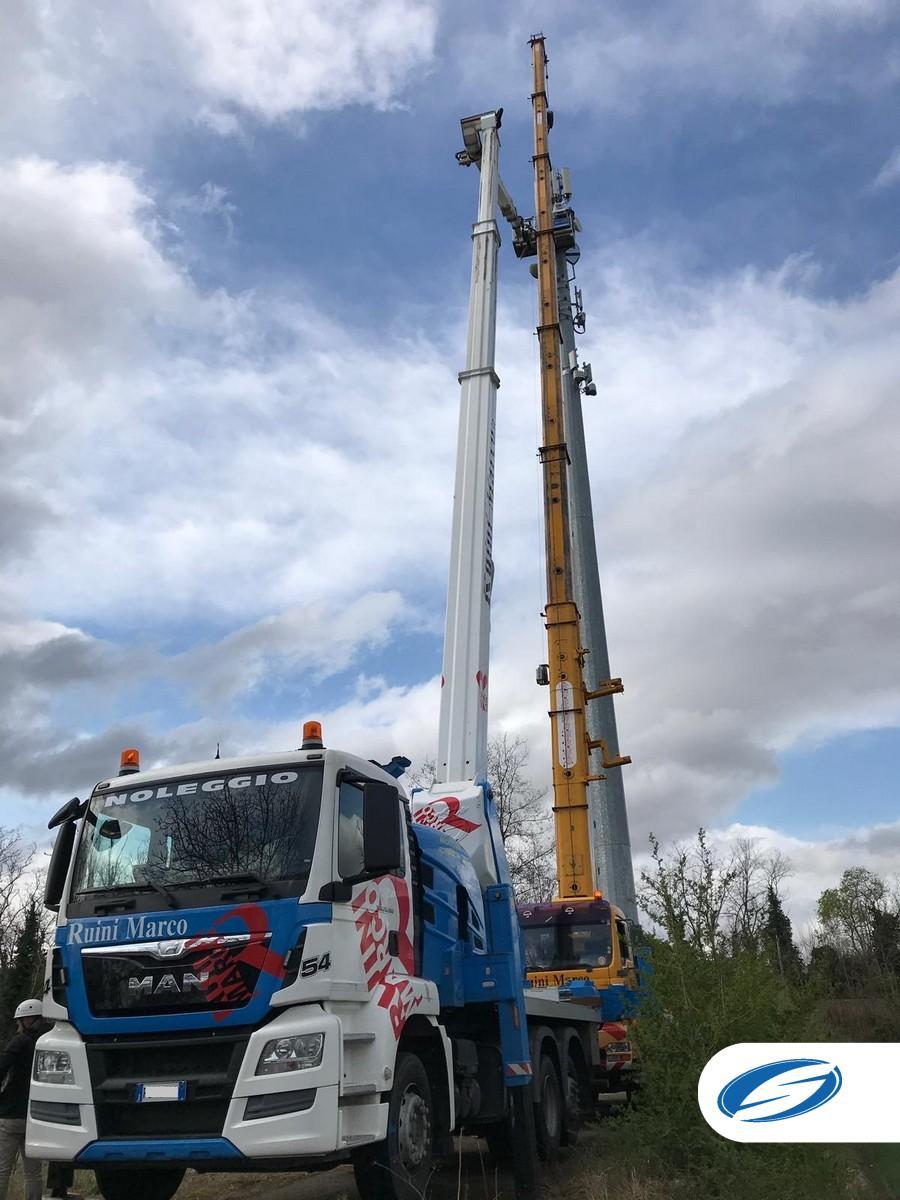

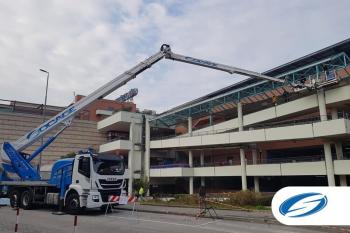

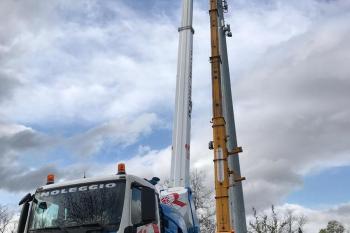

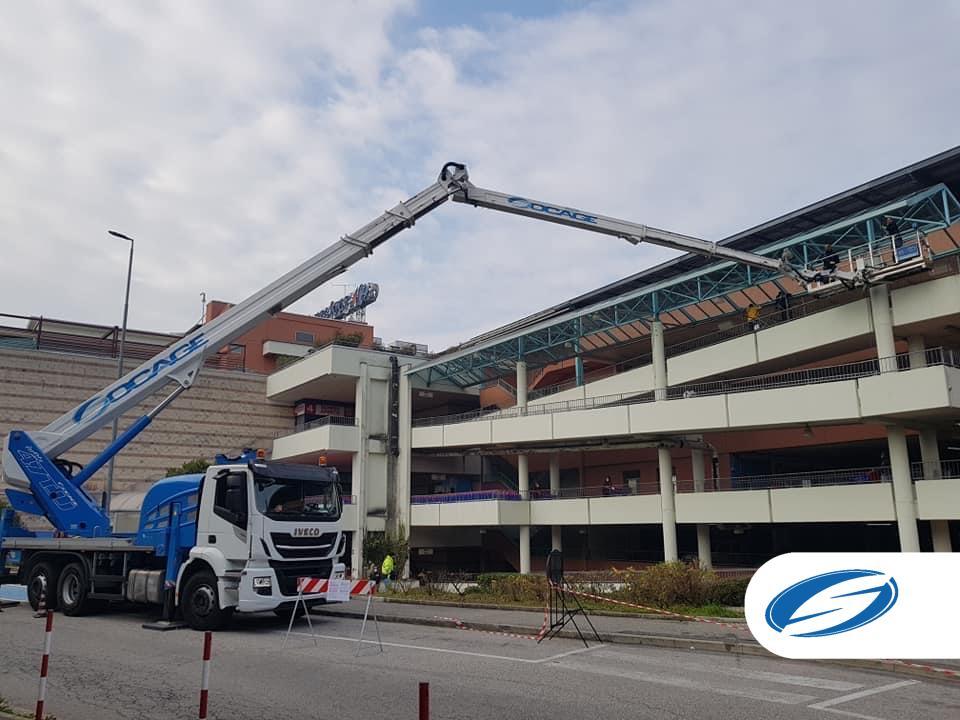

The maximum working height is 47.70 m and the maximum lateral outreach is 35 m, with a maximum load capacity of 600 kg (6 operators + equipment).
A 7-inch LCD display allows the operator direct control of various information such as: 2D working area, load moment limiter status, outrigger status, etc.
The 47TJJ aerial platform is equipped as standard with a multi-zone outrigger system, allowing the operator to choose between various positioning options depending on the available setup space for the vehicle.

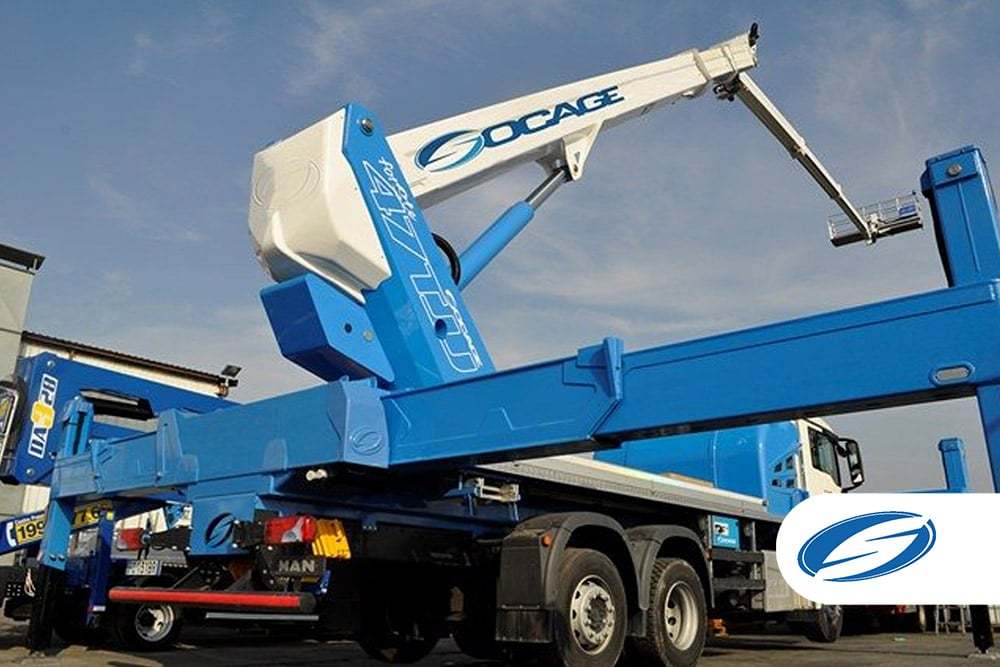

The rear outrigger beams of the 47TJJ with 2-stage hydraulic extension increase the outrigger spread and thus the maximum performance of the unit.
| Extensive working range
The emergency operation via radio remote control allows the operator to select the best possible viewing position.
The generous 700° slewing range of the aerial platform significantly increases productivity and avoids downtime for repositioning the platform. The 47TJJ aerial work platform can be equipped with a boom-mounted hydraulic winch with a capacity of 1500 kg, and thus be used as a crane after removing the aluminum work basket.
The aluminum basket, with dimensions of 2200 x 900 x 1100 mm, can be hydraulically extended to 3600 mm. The basket is 360° rotatable (manually 180° left + 180° right), thus enabling high maneuverability even for under-floor work or behind roof edges.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES
- Extendable aluminum basket with dimensions 2300/3600 x900x1100 mm
- Optional SOCAGE special basket (Eternit)
- Basket rotation 90°+90°
- 700° turret rotation
- Jib 180° manually rotatable
- Winch capability on the detachable jib
- Automatic support system
- Variable support and working areas
- Automatic home function
- Basket control station with Socage design console with joystick and 7″ LCD display with real-time information
- Intercom system with headset for communication between basket and ground
- Start/stop control of main and auxiliary engine from the basket
- Multifunction radio control for ground emergency control and support
- Electric operating hours counter
- Automatic auxiliary drive
- 2 permanently installed rotating beacons on the vehicle cab
- 230V/400V socket
- Hydraulic system with oil cooler
- 2 folding, 2 fixed side panels (H 150 mm)
- 4 floor support plates (700 x 700 x 50 mm)
- Corrosion protection treatment of non-painted parts
- Painting of the aerial platform: white RAL 9016
- Painting of frame and hydraulic cylinders: blue RAL 5015
- LED light under the basket
- Work lights on the basket
- Work lights behind the driver’s cab
- LED rotating beacon on the cab roof
SAFETY DEVICES
- Emergency stop
- Counter-check of the opened supports
- Load limiter in the basket
- Anemometer
- Load moment limitation with dual safety and function control
- Leveling eye on the undercarriage
- Emergency lowering via electric pump (without auxiliary engine option)
- Swivel brake of the turret rotation with automatic activation
- Hydraulic system with differentiated filtering and high-performance filters in supply and return lines
- Emergency control via multifunction radio control
- Automatic slew lock in the outrigger area
- Tilt sensor on the chassis
- Flanged holding valves
