ForSte 28da SPEED Aerial Work Platform
MAX. WORKING HEIGHT
ROTATION RANGE
SUPPORTS
PLATFORM HEIGHT
BASKET SIZE
CONTROL
MAX. LATERAL REACH
BASKET LOAD
BASKET ROTATION
TOTAL WEIGHT
Aerial Work Platform | Compact Solutions for Urban Use
Powerful Double Articulated Joints
Compact Dimensions
Multiple Stabilization Options
Robustness and High Mobility

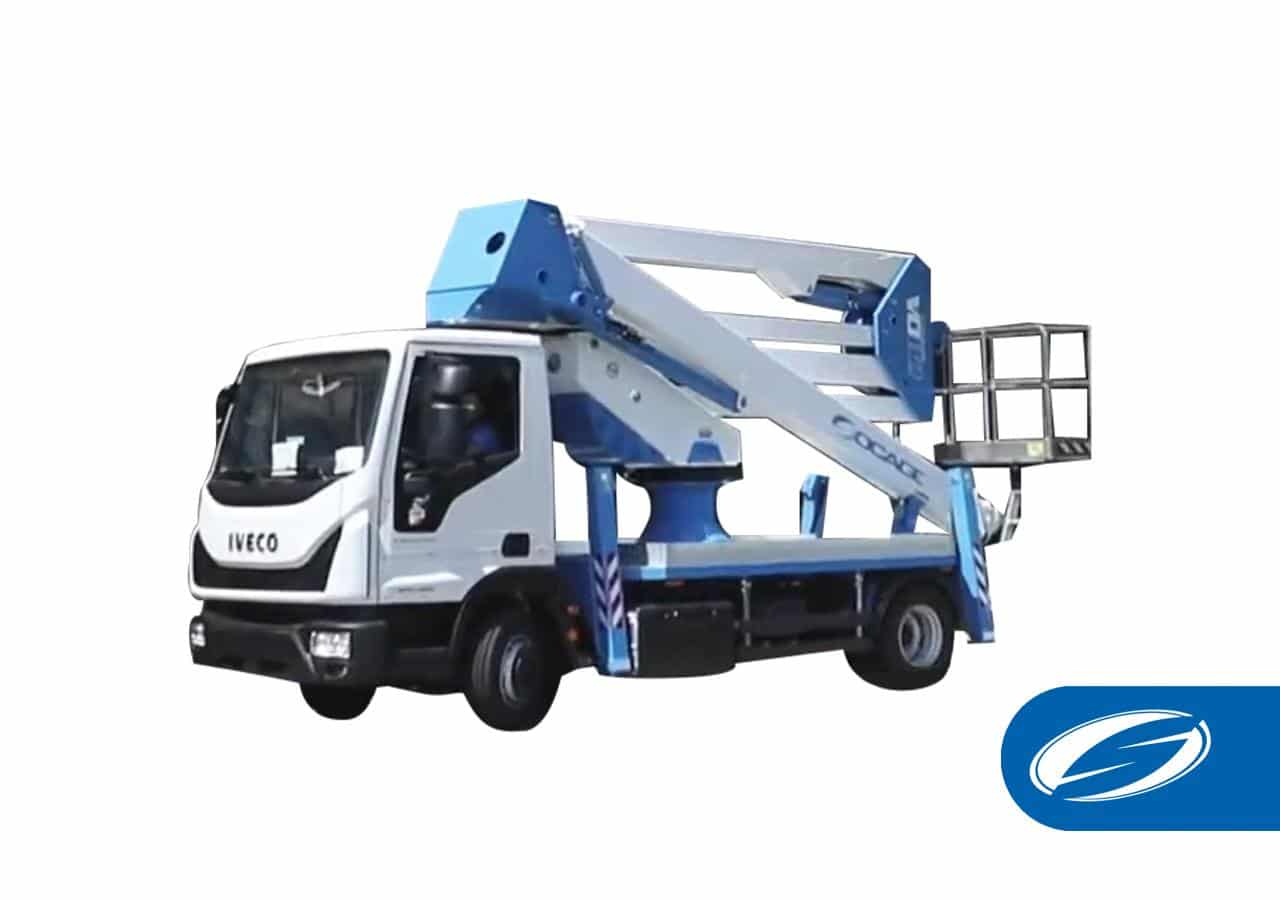

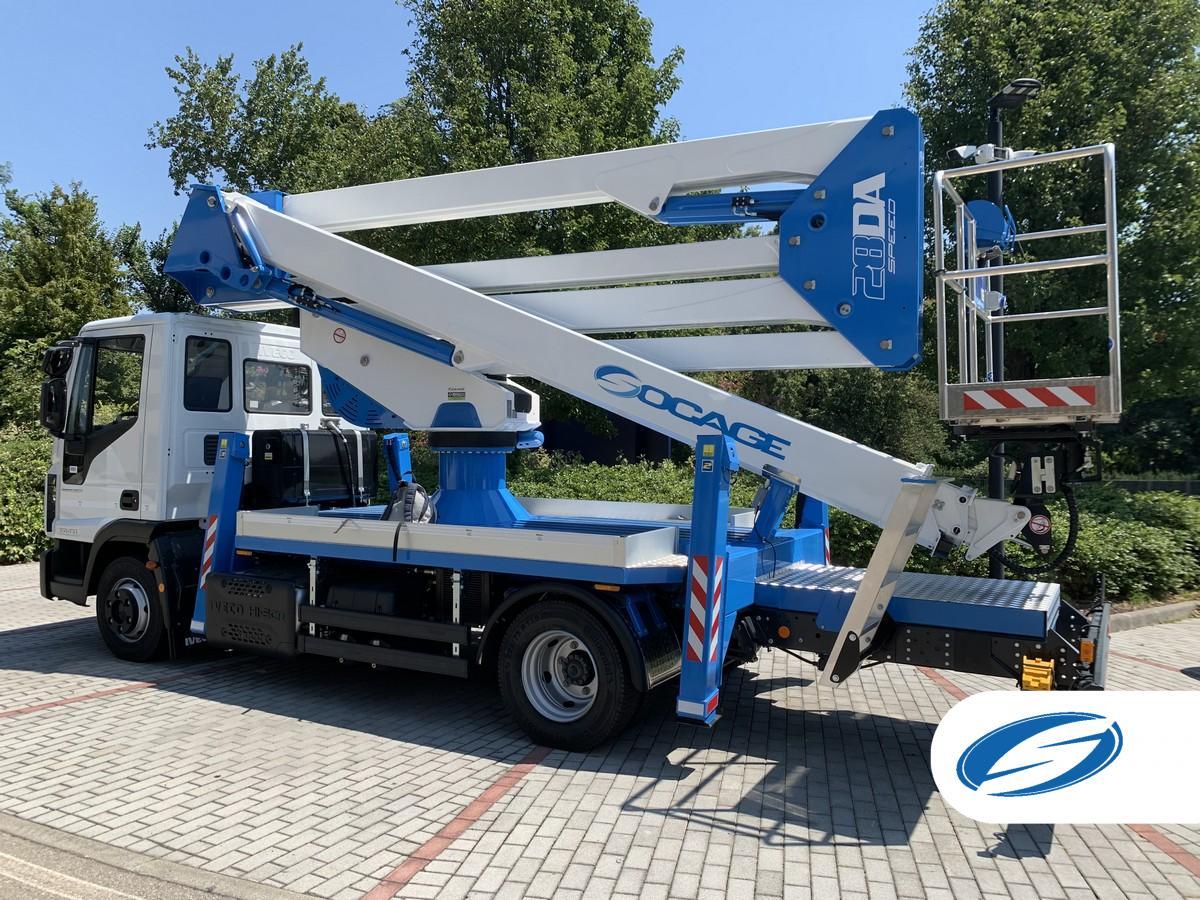

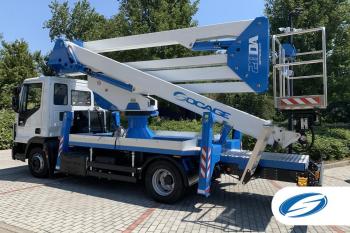

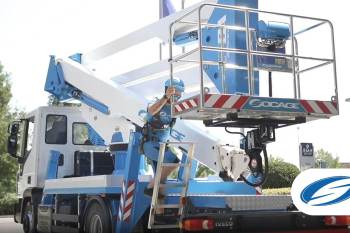

The ForSte 28DA is an articulated telescopic platform from the Socage range for medium working heights, which can be mounted on 2-axle trucks from 10 t.

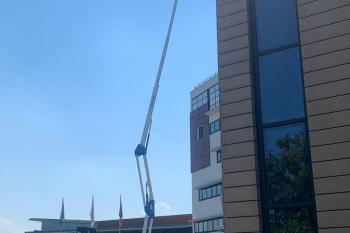

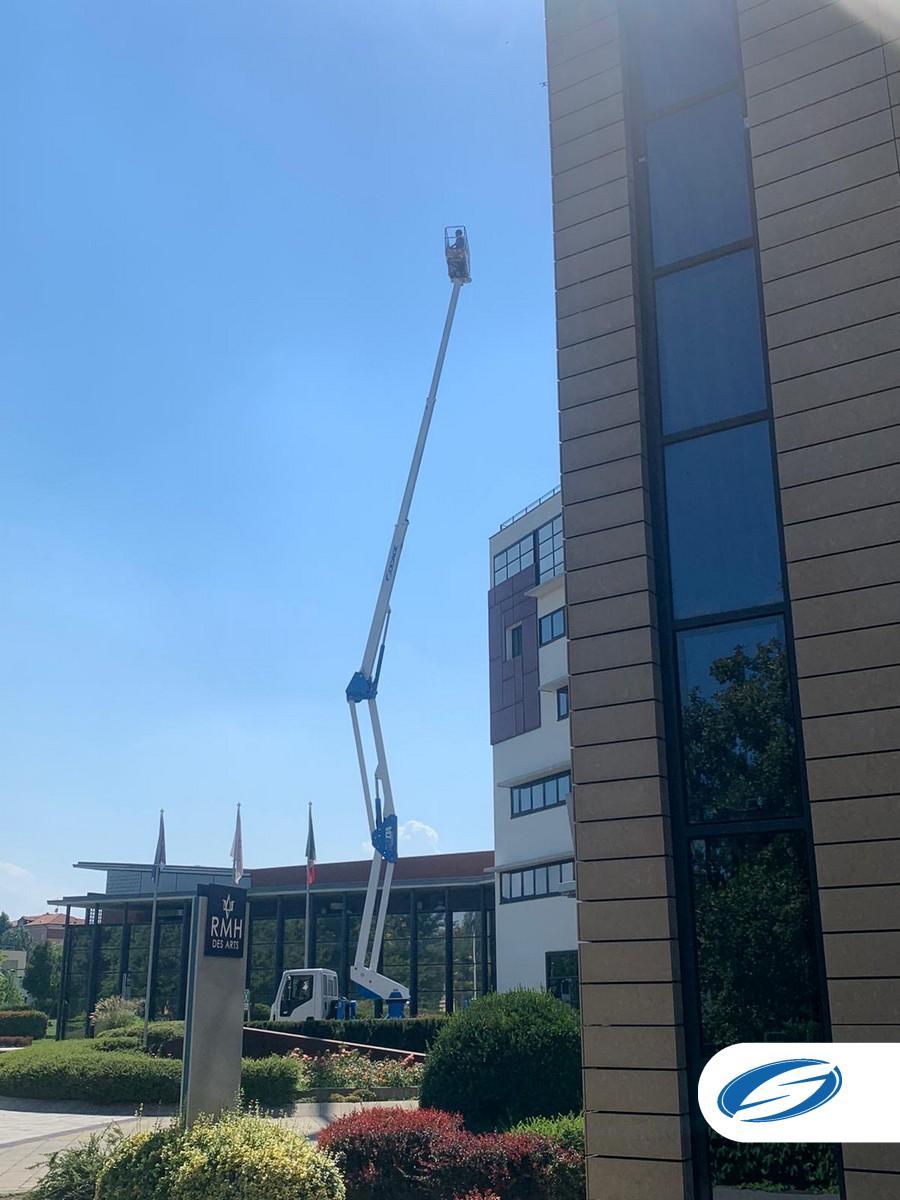

It can reach a maximum working height of 28.50 m and a maximum outreach of 16 m, with a platform capacity of 225 kg (2 operators + material).
The ForSte 28DA SPEED aerial work platform is the SPEED version of the ForSte 28DA. It is particularly characterized by its excellent performance and extremely compact dimensions, which ensure high productivity and mobility of the unit. It offers a new and innovative solution for urban areas and an alternative to self-propelled aerial work platforms.
Thanks to the SPEED functionality, the aerial work platform can operate wherever the truck has access. It is particularly distinguished by an exceptional stabilization system for aerial work platforms mounted on trucks weighing more than 3500 kg. It comes standard with automatic outrigger leveling, which, in conjunction with the fixed SOCAGE H+H vertical stabilization, guarantees a very user-friendly, versatile, fast, and safe stabilization maneuver.

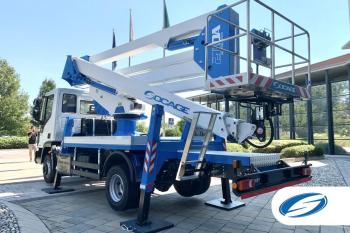

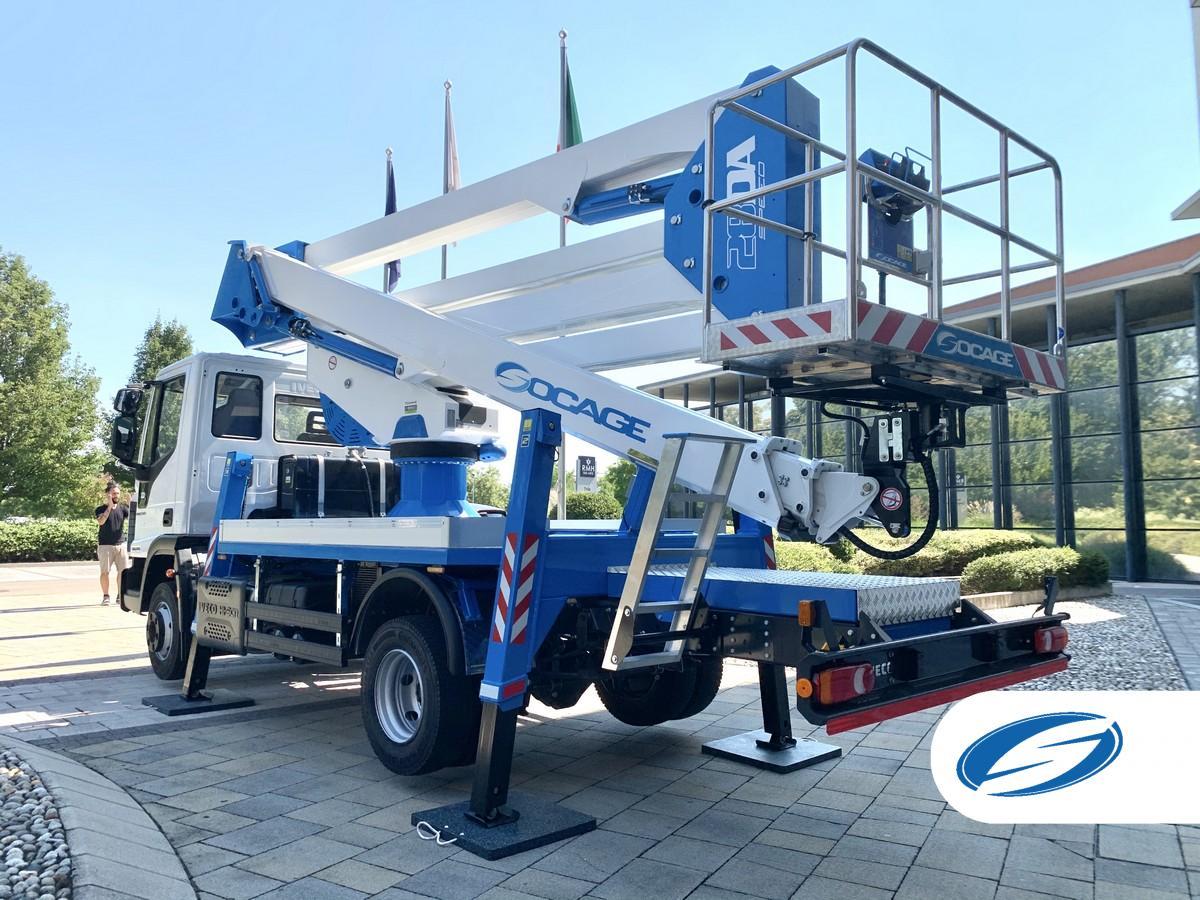

SPEED H+H Stabilization
SOCAGE H+H offers a single stabilization variant for safe and easy stabilization with maximum performance, greater up-and-over capacity, and a reduced vehicle footprint during operation.
The robust construction of the aerial work platform was designed for professional and intensive use and is intended for mounting on two-axle trucks with a gross vehicle weight of more than 3500 kg. The result is an aerial work platform with great stability when moving and working at height. The extensive working diagram increases the platform’s productivity and meets the demands of professionals working at height.
Through the use of state-of-the-art components and technological advancements, a high-quality, reliable, and easy-to-operate aerial work platform is created.
High Mobility
The high mobility due to its compact dimensions, combined with the great versatility of the SOCAGE H+H stabilization and the SPEED version, make the ForSte 28DA SPEED aerial work platform the ideal solution for all work in industrial areas and city centers with high traffic and difficult access.
Its ease of operation also enables rental without an operator.
STANDARD EQUIPMENT
AUTOMATIC STABILIZATION
With just one push of a button, even from the platform, you can work safely, easily, and quickly after release.
The additional lifting reserve of the Socage vertical stabilizers perfectly complements the SPEED automatic stabilization, ensuring safe stabilization with an increased ability to overcome irregularities.
TECHNICAL FEATURES

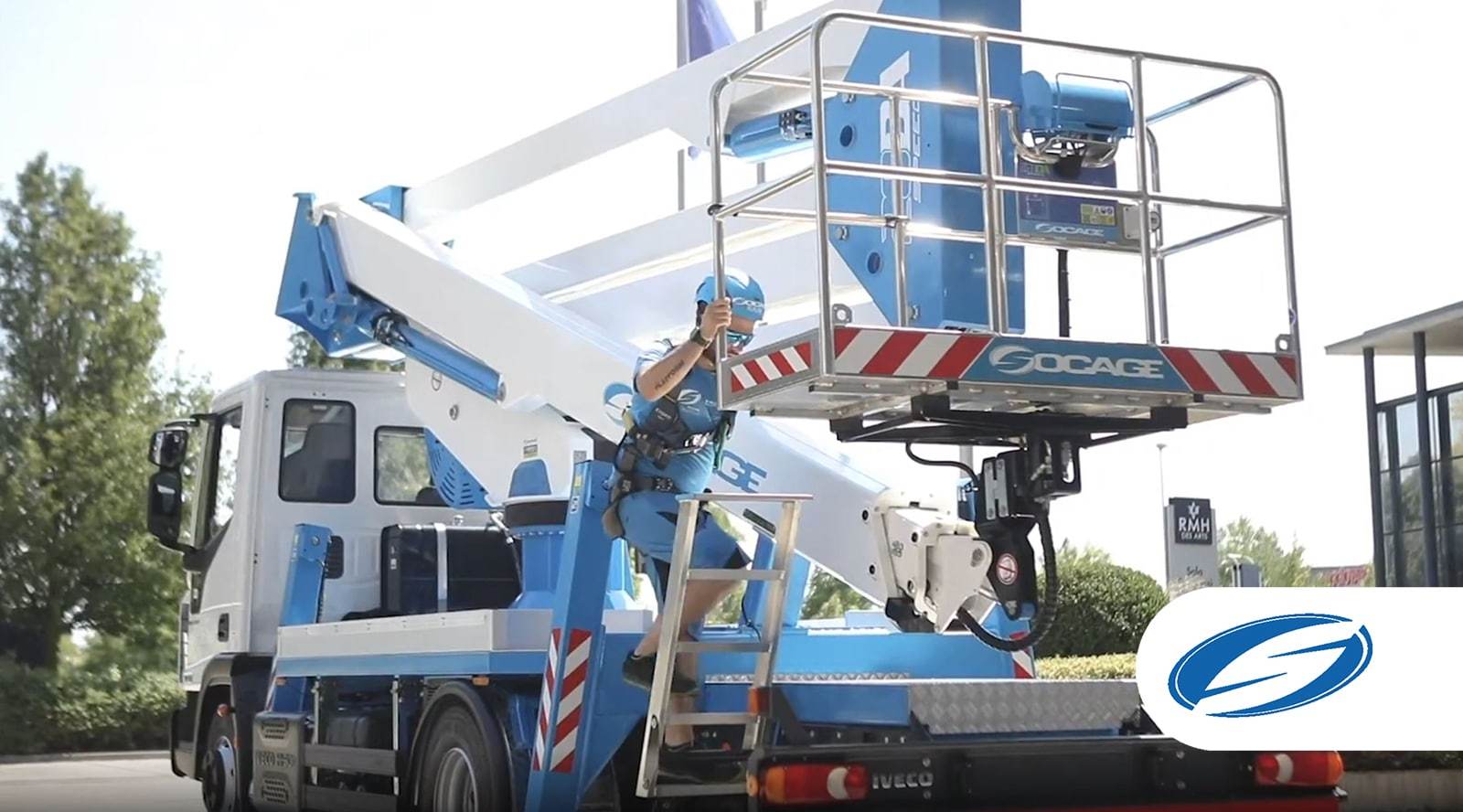

- Aluminum Platform: Dimensions 1800 x 700 x 1100 mm
- Hydraulic basket rotation 90º+90º
- Turret rotation 700º
- Automatic SPEED stabilization
- H+H vertical outriggers with additional stroke
- Double or triple working area depending on installation
- Automatic stabilization control from the basket and ground
- Electro-hydraulic proportional control with speed regulation for all movements
- CAN BUS electronic control system
- Engine start/stop control from the basket
- Heat exchanger
- Digital hour meter
- 4 outrigger pads
- 230V socket
- Cataphoresis treatment with powder coating
- Bumpers
- LED taillights on the bumper
- SSW (Socage Safe Workplace) safety light set
- 150 mm aluminum drop sides
- LED lights under the basket
- Work lights on the basket
- Work lights on the superstructure
- LED rotating beacon on the driver’s cabin
SAFETY DEVICES
- Emergency stop switch
- Outrigger check
- Bubble level for visual control of chassis stabilization
- Intelligent cabin collision sensor
- Basket load limiter
- Load moment limiter with double safety and function control
- Manual emergency lowering
- Frame level sensor
- Flanged block valves
- Hydraulic system with differentiated filtration using high-performance filters in supply and return lines
- Automatic basket leveling
- Automatic power take-off
- Platform Control via Buzzer.
