Van bucket truck forSte 12VT Tronquée

Description

The telescopic platform can be mounted in two versions: with and without stabilizers. The version without stabilizers features a 1-person basket with a capacity of 120 kg (1 operator + material), while the version with two stabilizers accommodates a 2-person basket with a capacity of 200 kg (2 operators + material).

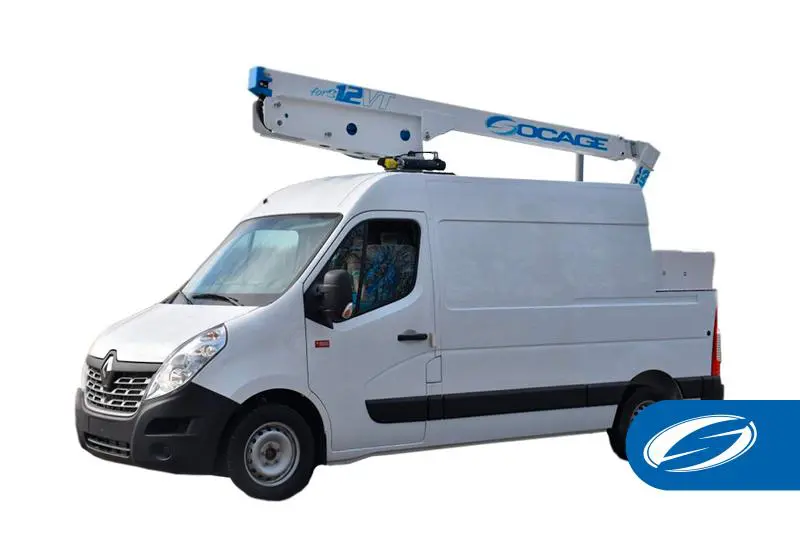

The forSte 12VT Cut-Out model is a telescopic platform with a fixed basket arm, mounted on a van in a cut-out configuration, making it highly compact. It can achieve a working height of 11 m (*) and is particularly notable for its extensive outreach of 6.5 m, which provides a large, unrestricted working area, allowing the full capacity of the work basket to be utilized at maximum outreach.

|Reduced Length

In the Cut-Out version, the rear of the panel van is modified, allowing the fixed basket arm to be positioned within the original contour of the panel van and eliminating the rear mounting platform of the ForSte 12VT. This reduces the overall length and enhances the equipment’s mobility.

The design of the high-strength steel booms and optimized vehicle mounting ensure powerful aerial work platforms on vans with excellent functionality. The forSte12VT Cut-Out model is distinguished by its ease of operation, reliability, and low vehicle body weight.

The ergonomic and proportional basket controls are highly precise, providing the operator with continuous control, allowing them to select movement speeds and even perform simultaneous maneuvers. The emergency controls are located in the cabin, which keeps the load area clear and improves driver visibility.

The Aerial Work Platform with Basket Arm Was Designed with the Customer in Mind

All components, hoses, cables, and extension cylinders are located inside the boom to provide additional protection and prevent damage or failures.

|High Payload Capacity

The installation of the forSte 12VT Cut-Out is designed to occupy minimal space in the cargo area, maximizing the available capacity of the van after the cut-out modification. An extensive range of optional equipment allows for perfect customization to meet the diverse needs of each customer.

The forSte 12VT Cut-Out combines the high performance of the aerial work platform with the enhanced versatility and mobility of the van, making it the ideal solution for professionals in electricity, street lighting, artistic lighting, signage, tree pruning, cleaning, or telecommunications. It is particularly useful for rapid deployments in urban or hard-to-reach areas, as well as for tasks requiring long travel distances, where the van’s mobility offers a distinct advantage.
